Code 24

Fig 1: Trouble Code 24: By-Pass Air Control Valve - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

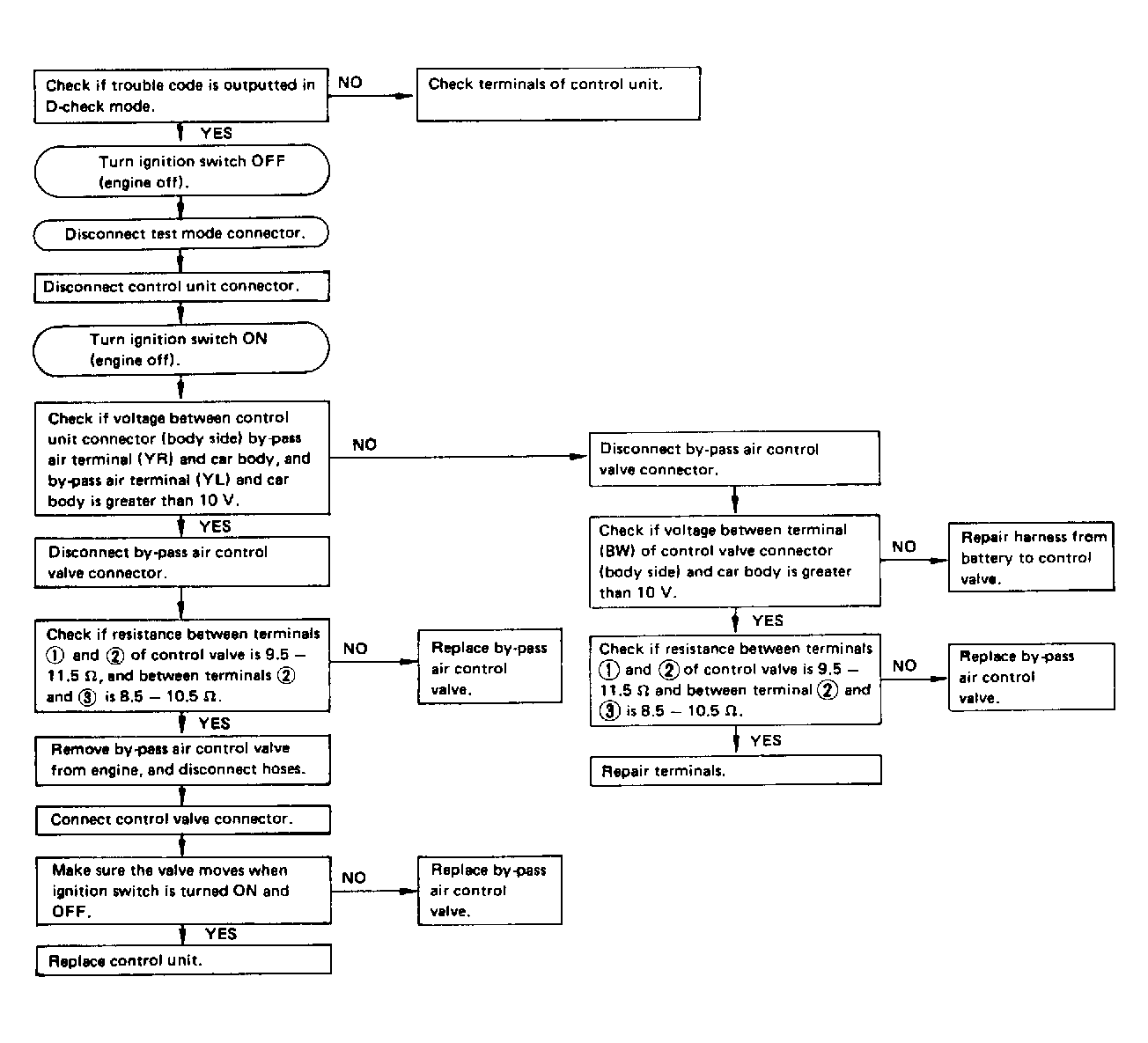

Fig 2: Trouble Code 24: By-Pass Air Control Valve - Flow Chart

Courtesy of SUBARU OF AMERICA, INC.
