Code 13
Fig 1: Trouble Code 13: Crank Angle Sensor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

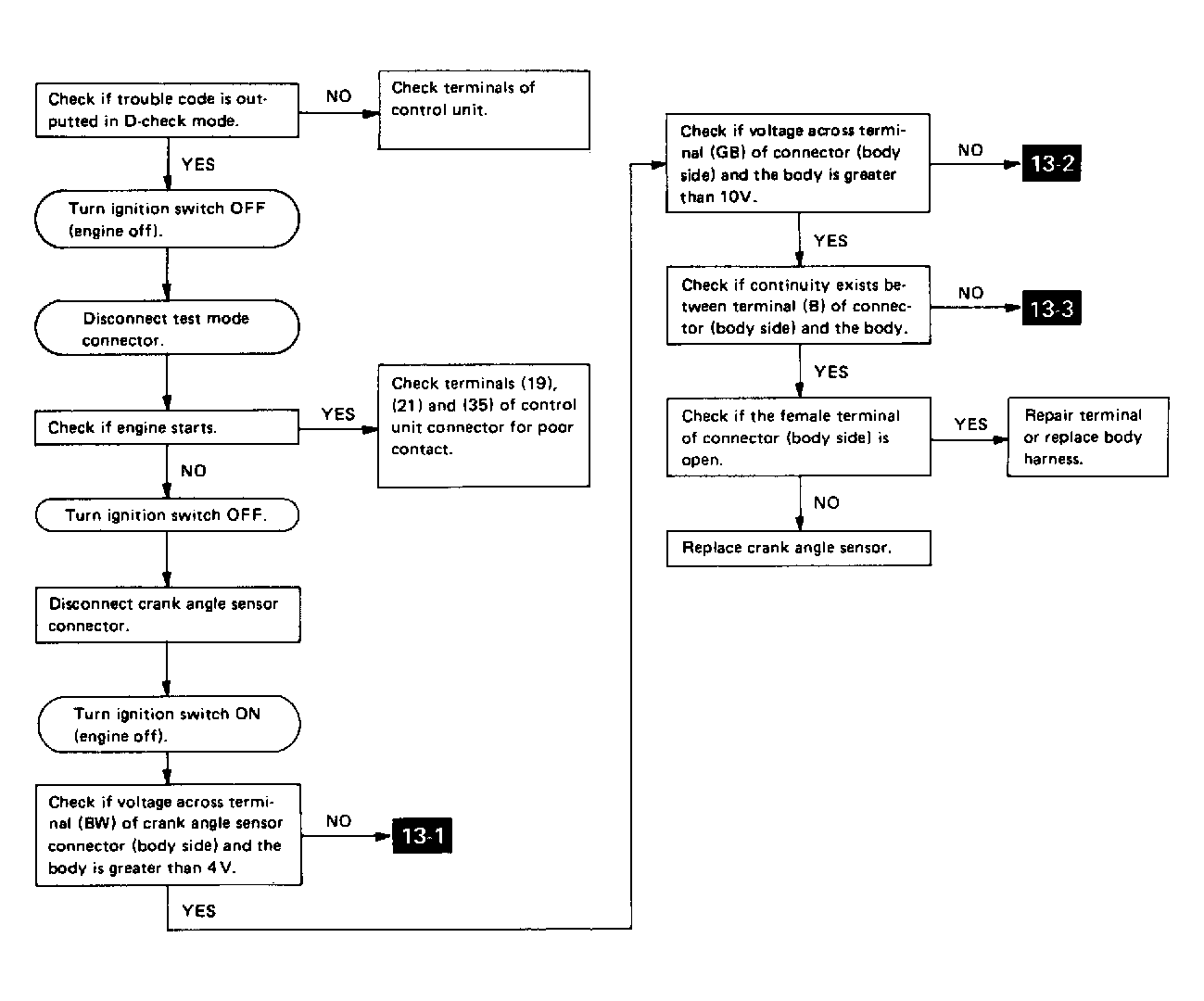

Fig 2: Trouble Code 13: Crank Angle Sensor - Flow Chart (1 of 2)
Courtesy of SUBARU OF AMERICA, INC

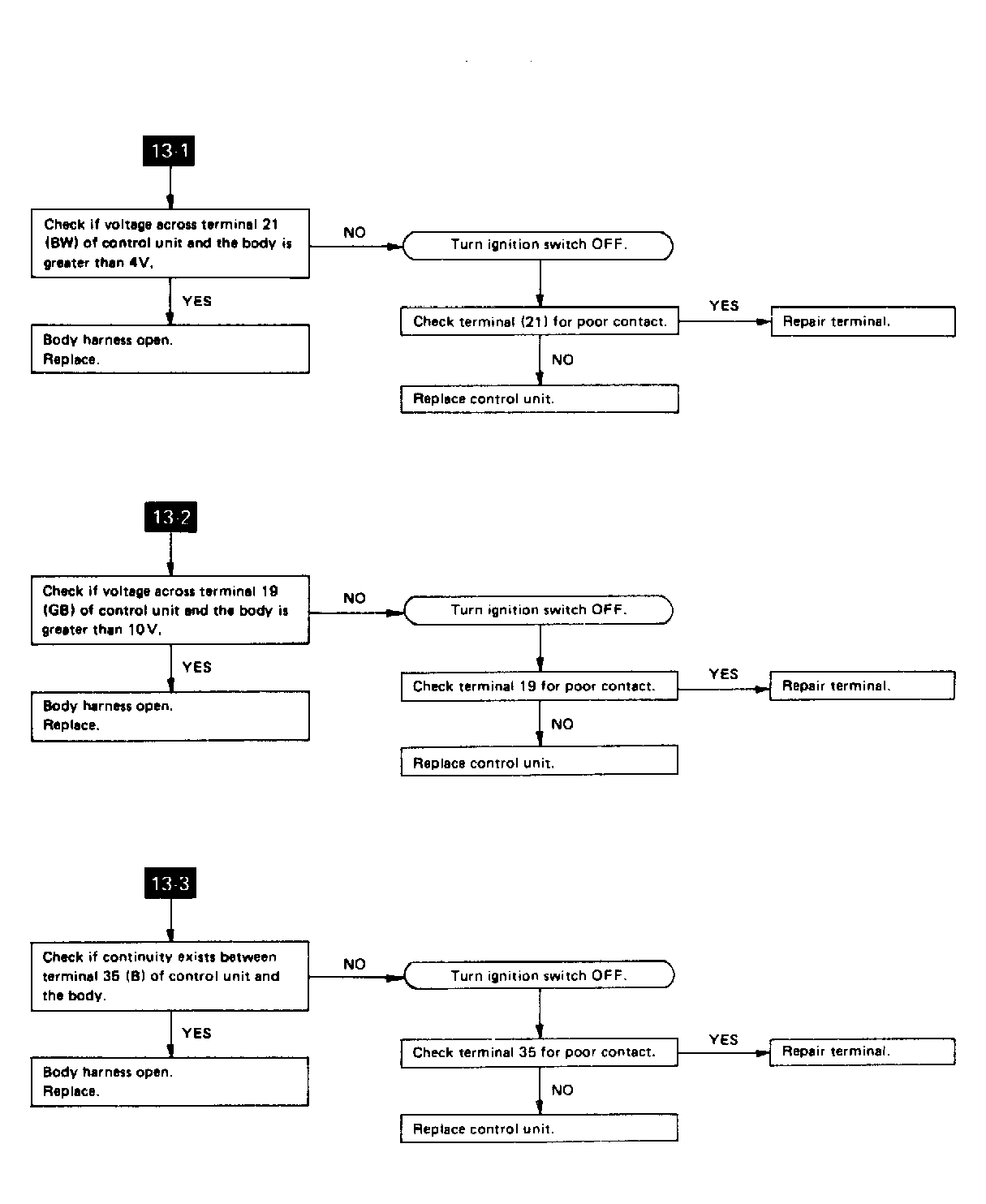

Fig 3: Trouble Code 13: Crank Angle Sensor - Flow Chart (2 of 2)
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
