Tests W/Codes - SPFI
›
Diagnostic Testing
›
Code 32
Code 32
Fig 1: Trouble Code 32: Oxygen Sensor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

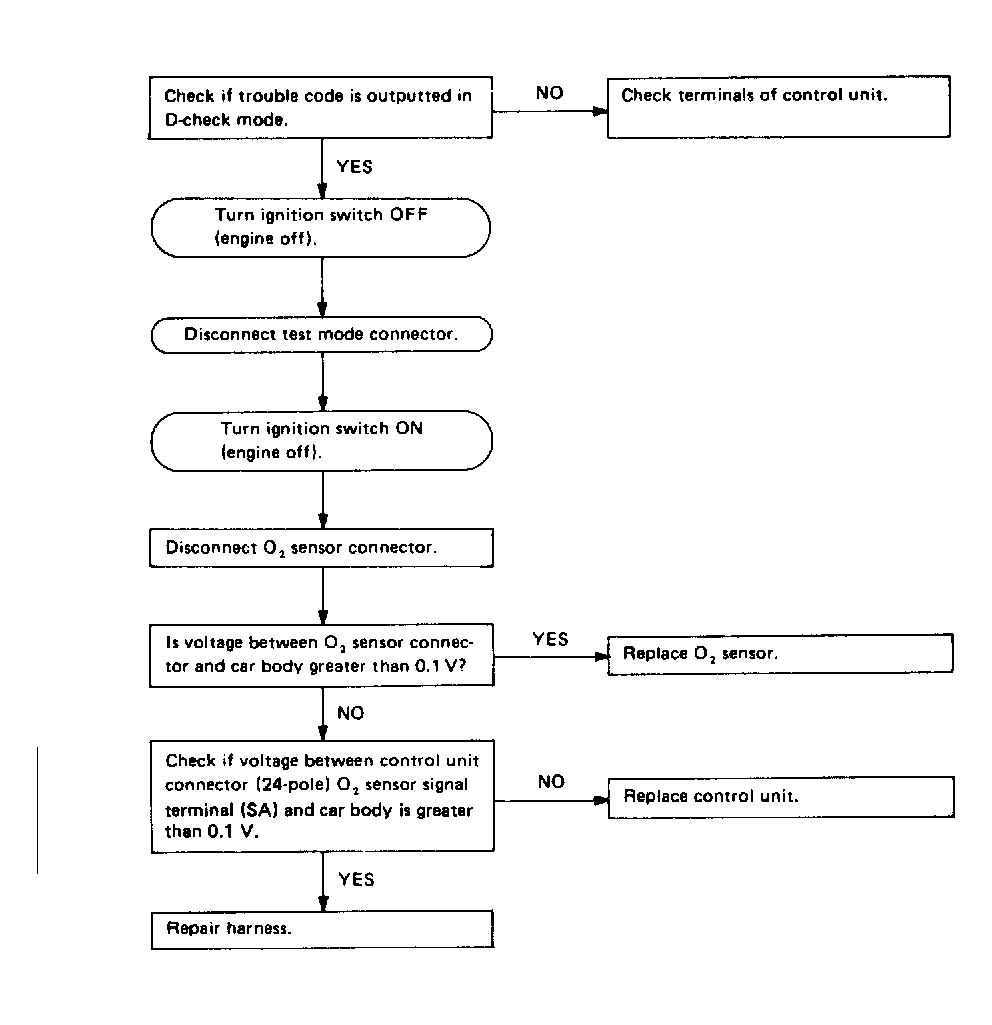

Fig 2: Trouble Code 32: Oxygen Sensor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
