Tests W/Codes - SPFI
›
Diagnostic Testing
›
Code 33
Code 33
Fig 1: Trouble Code 33: Speed Sensor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

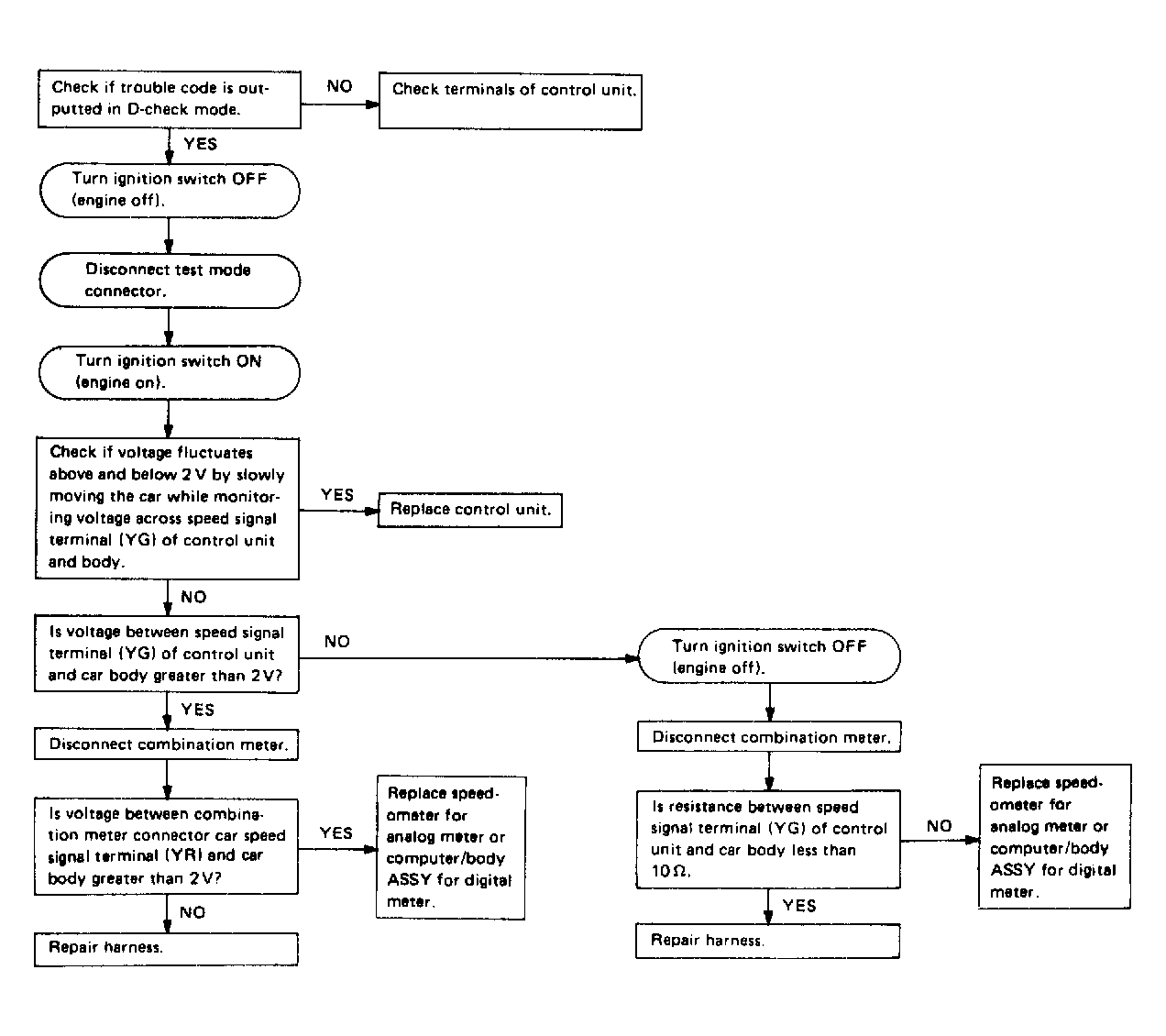

Fig 2: Trouble Code 33: Speed Sensor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
