Code 35
Code 35
Fig 1: Trouble Code 35: Purge Control Solenoid Valve - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

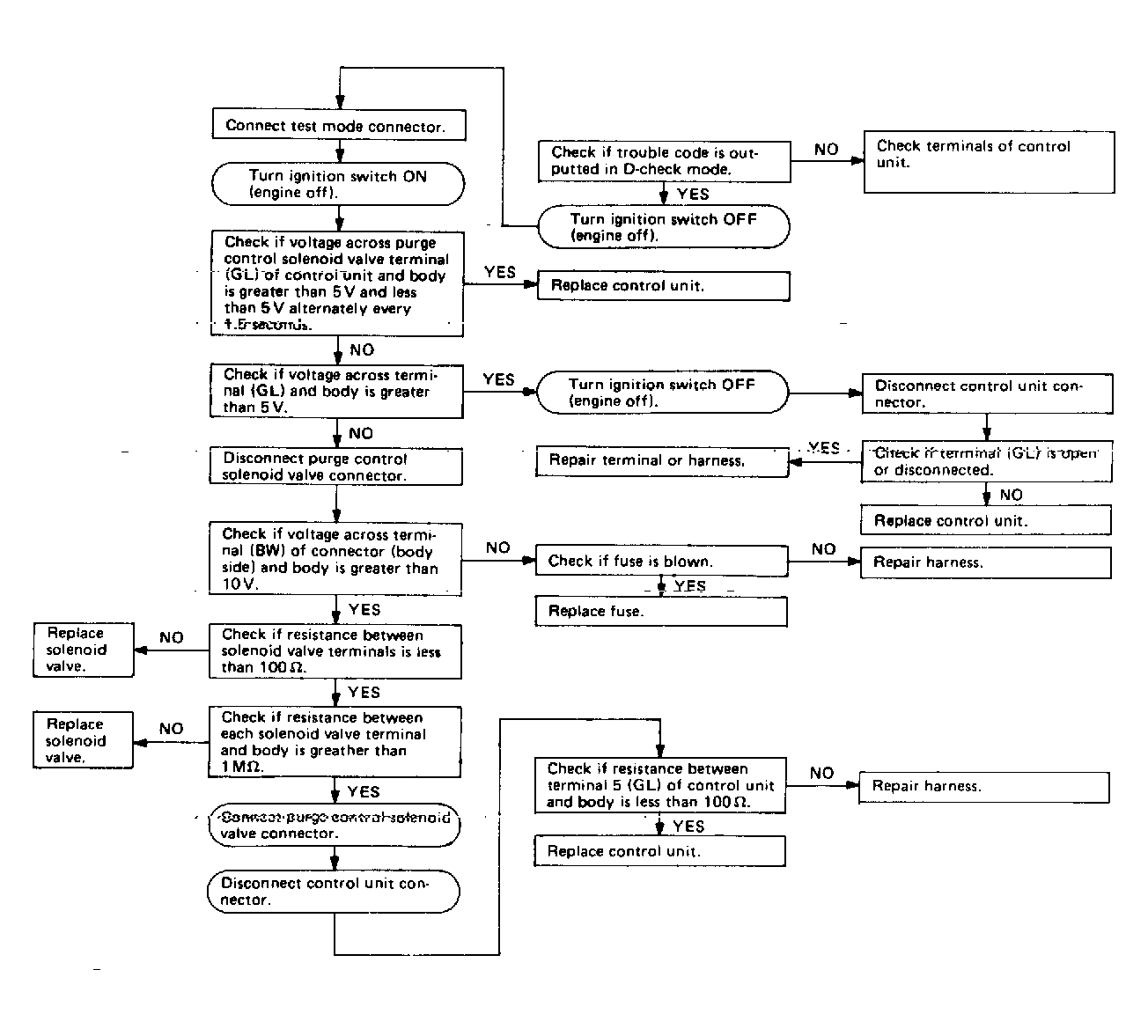

Fig 2: Trouble Code 35: Purge Control Solenoid Valve - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
