Engine Controls - Tests W/Codes - CARBURETED
›
Diagnostic Code Charts
›
Code 52: Clutch Switch
Code 52: Clutch Switch
Fig 1: Wiring Schematic - Code 52: Clutch Switch
Courtesy of SUBARU OF AMERICA, INC.

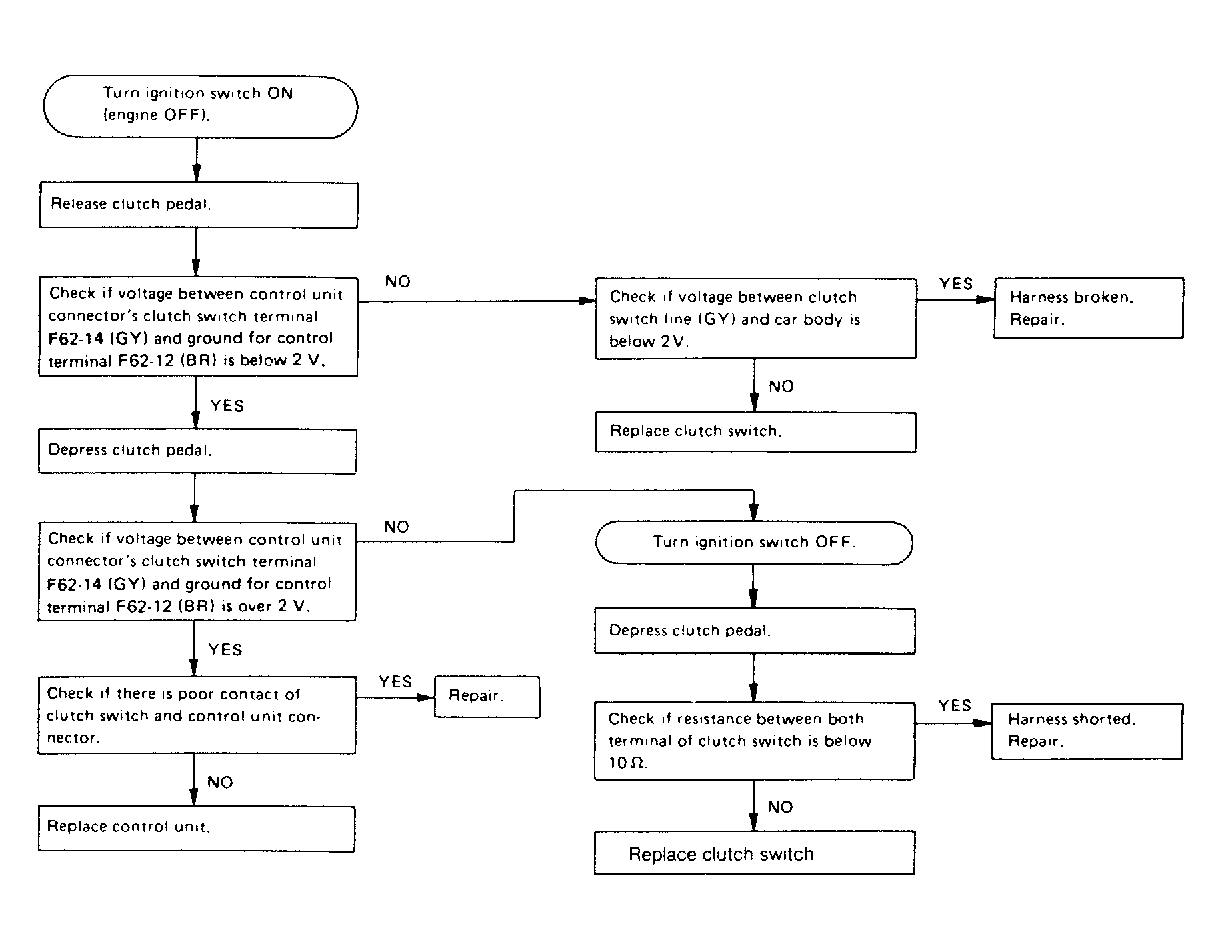

Fig 2: Flow Chart - Code 52: Clutch Switch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
