Paint Code Sticker Location (13-56-89)

Publication date: 1989-11-27
Reference number: 13-56-89

PAINT CODE STICKER LOCATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): 13-56-89, Date of Issue: November 27, 1989

LOCATION OF THE VEHICLE PAINT CODE

APPLICATION

Model(s): All 1989-90 Subaru Models

Group: Body/Paint

Bulletin No.: 13-56-89

Date: November 27, 1989

SERVICE INFORMATION

The paint code sticker location for L-Series, Justy, and XT has changed from front radiator support panel to the driver's side strut tower. Legacy models have the paint code information stamped into the metal plate found on the driver's side strut tower. See Fig 1 .

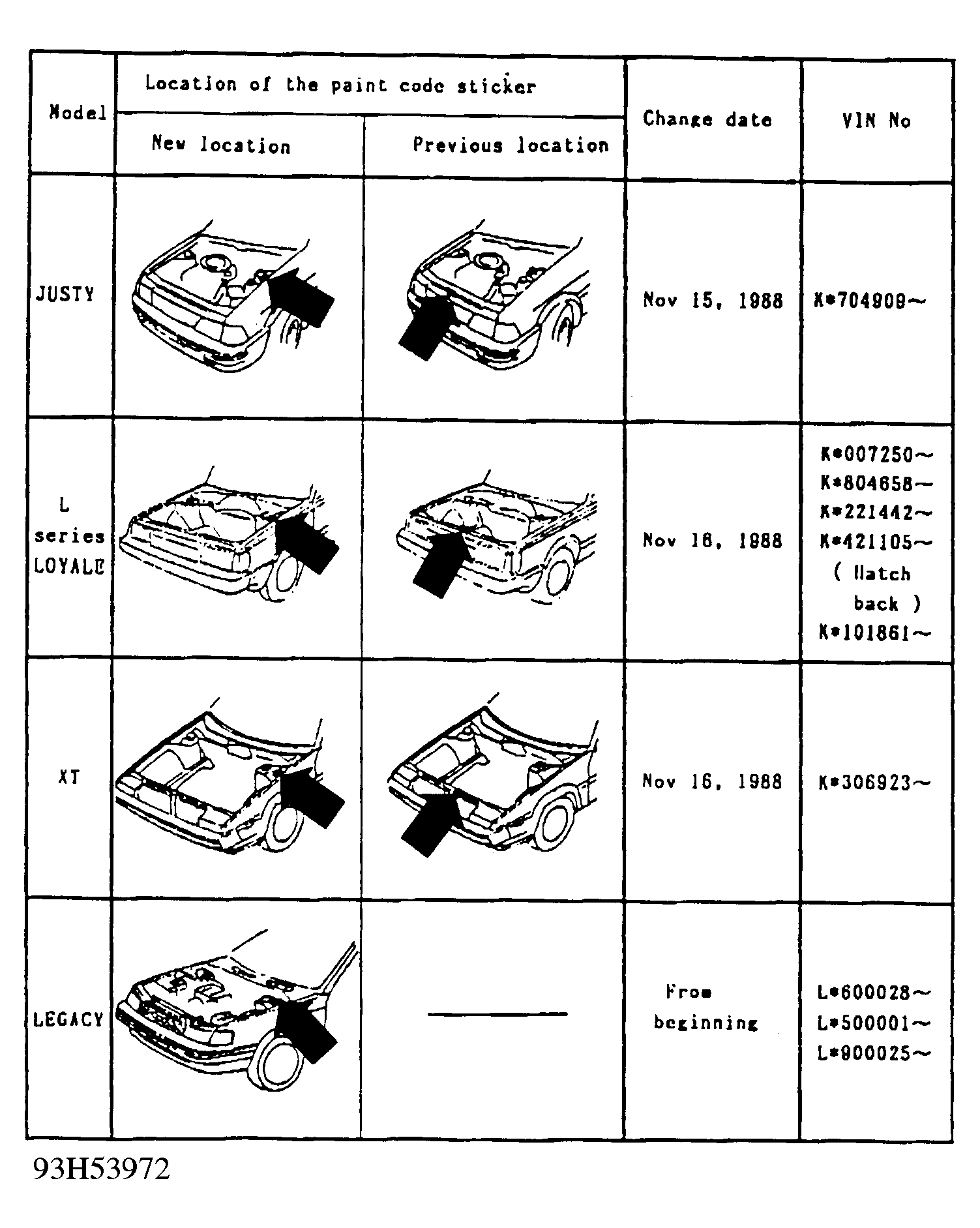

Fig 1: Location of Paint Code Sticker
