Code 12: Starter Switch

Fig 1: Schematic - Code 12, Starter Switch

G91C18376

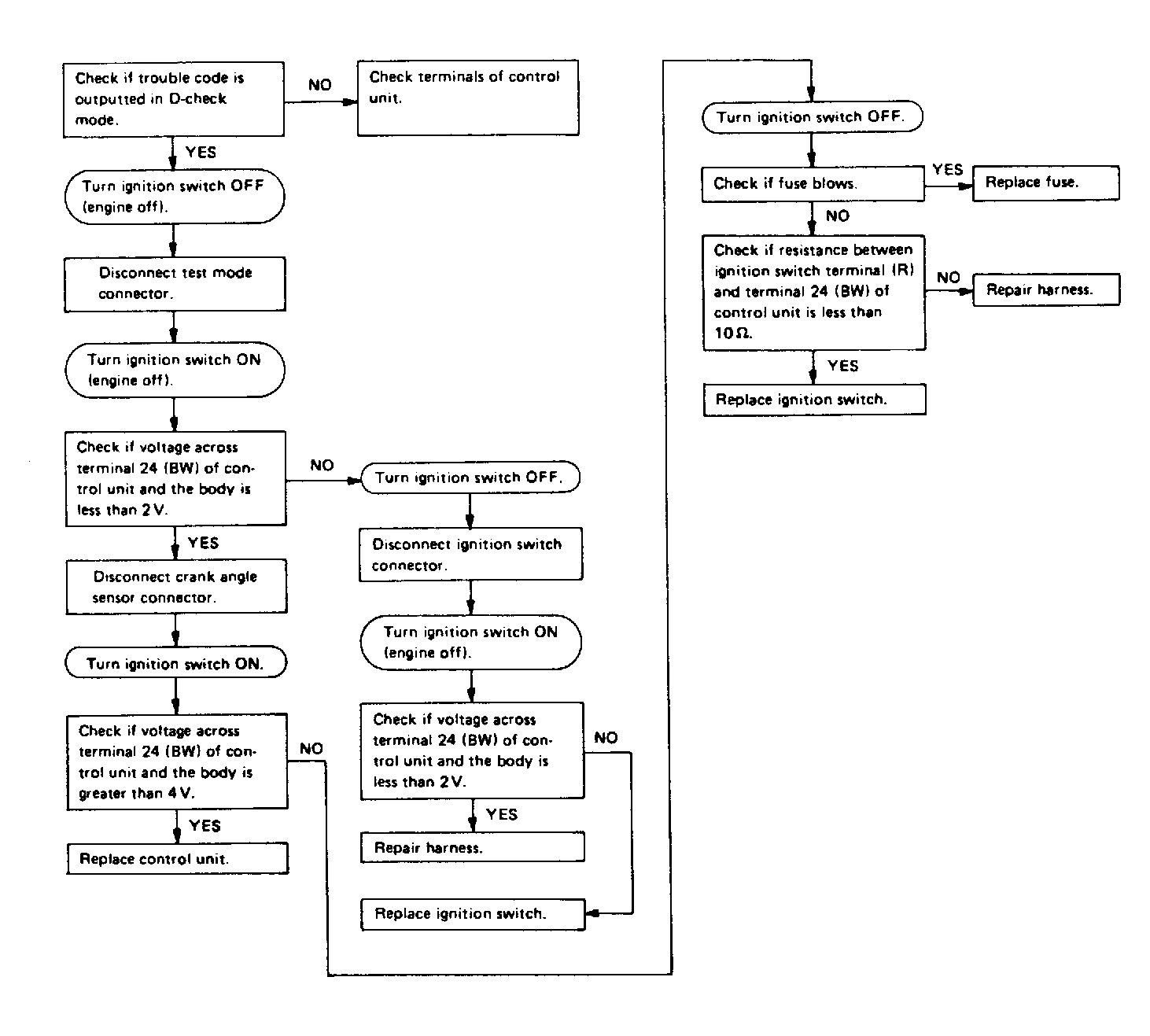

Fig 2: Flow Chart - Code 12, Starter Switch

G90I21889
