Code 13: TDC Sensor

Fig 1: Schematic - Code 13, TDC Sensor

G91D18377

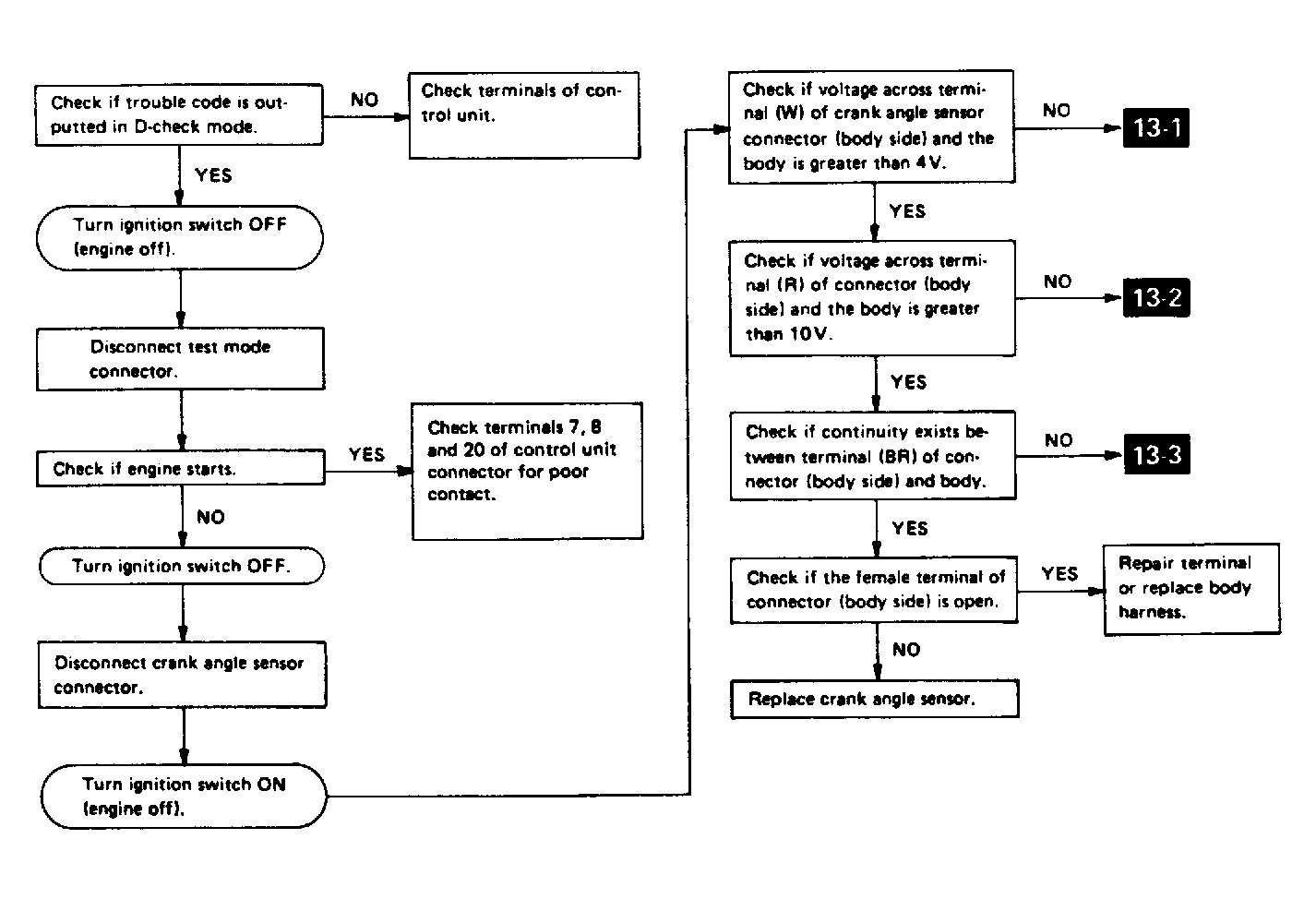

Fig 2: Flow Chart (1 of 2) - Code 13, TDC Sensor

G90B21890

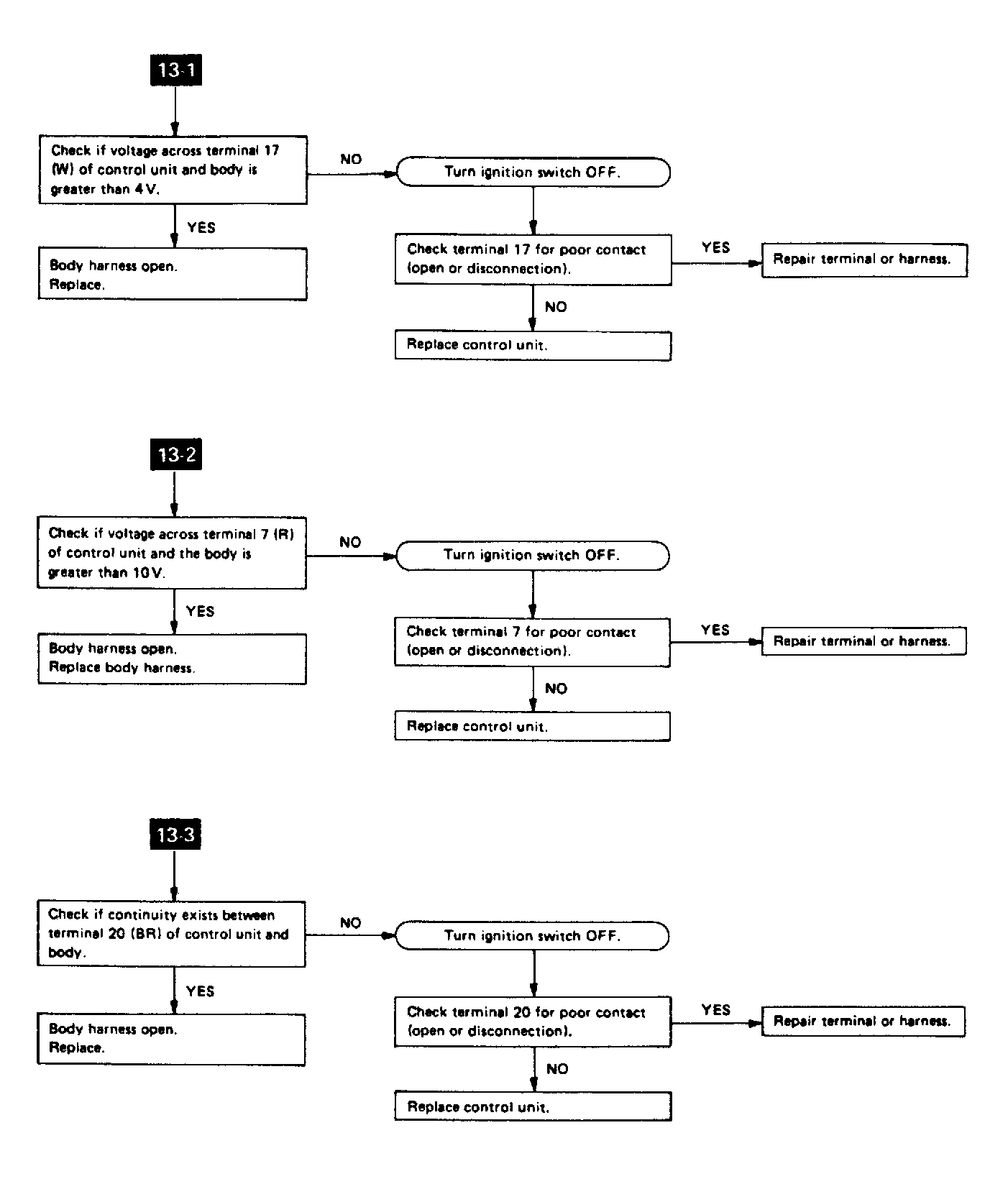

Fig 3: Flow Chart (2 of 2) - Code 13, TDC Sensor

G90C21891
