Code 22: Knock Sensor
Fig 1: Schematic - Code 22, Knock Sensor

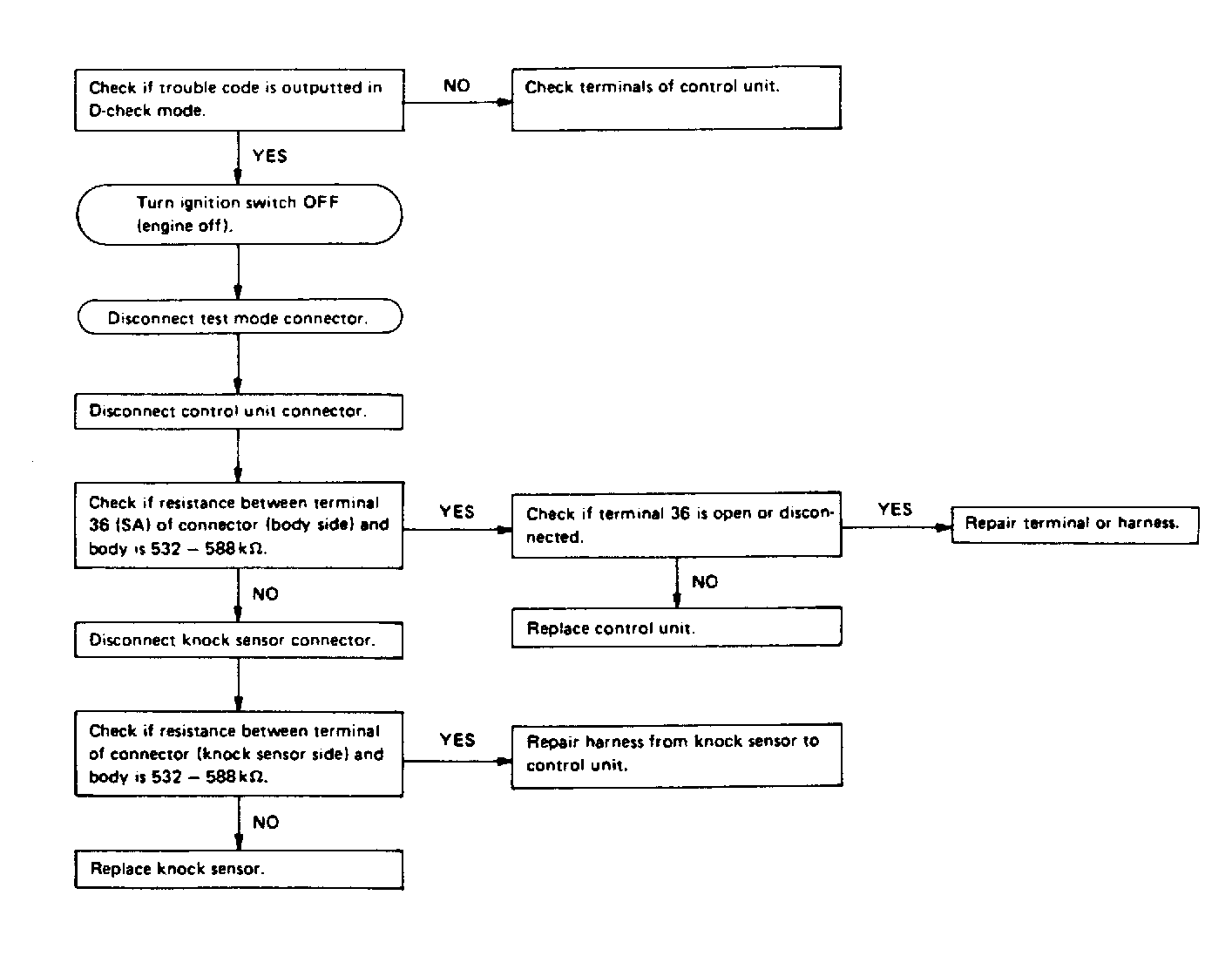

Fig 2: Flow Chart - Code 22, Knock Sensor
