Code 32: Oxygen (O2) Sensor

Fig 1: Schematic - Code 32, Oxygen (O2) Sensor (Federal)

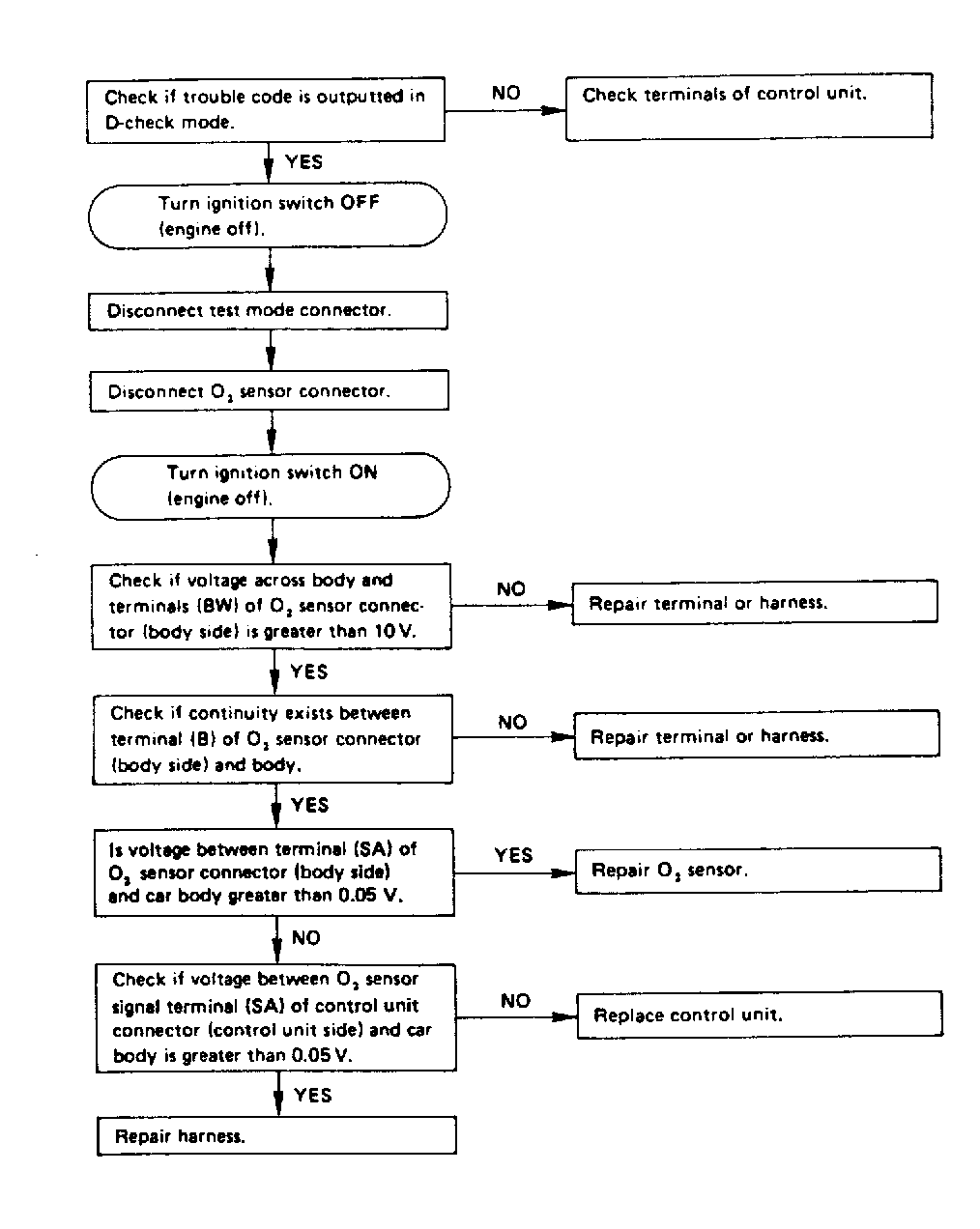

Fig 2: Flow Chart - Code 32, Oxygen (O2) Sensor (Federal)

Fig 3: Schematic - Code 32, Oxygen (O2) Sensor (Calif.)

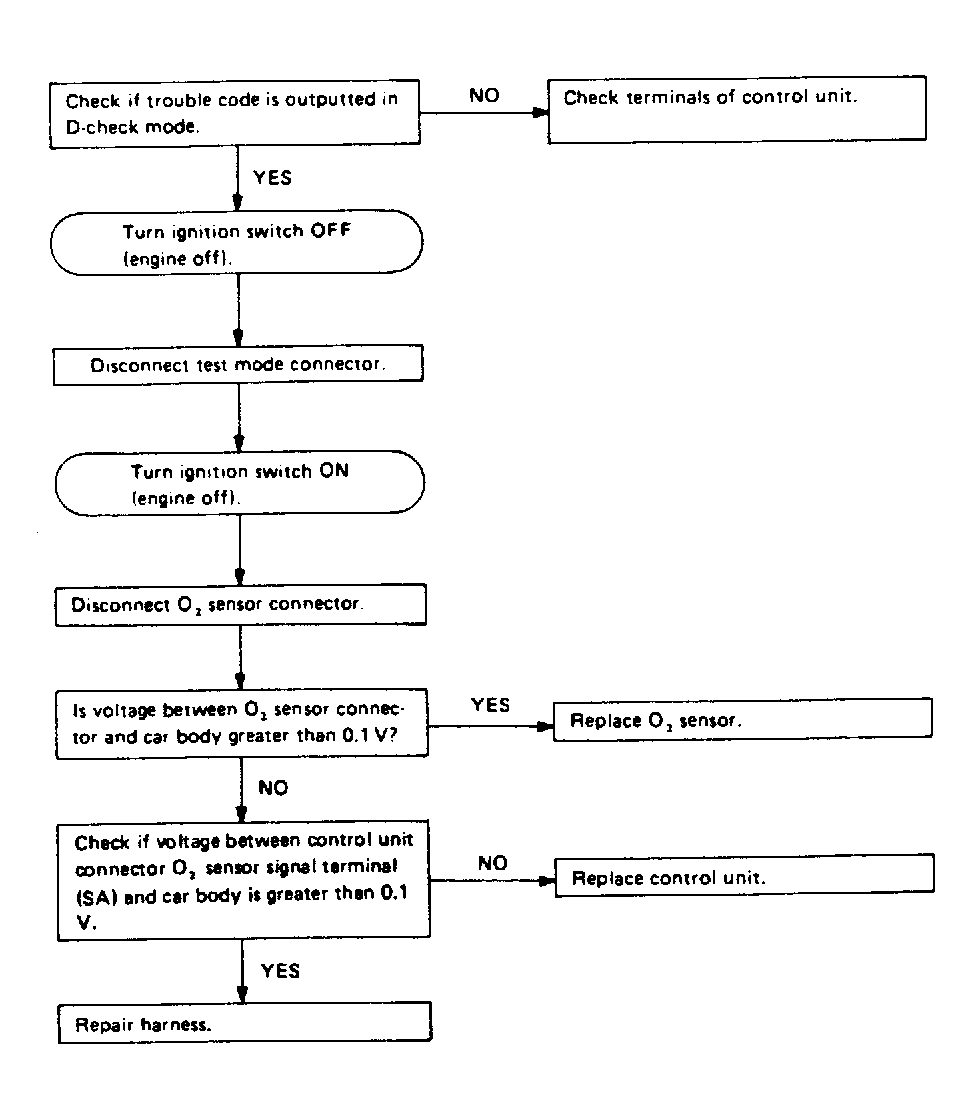

Fig 4: Flow Chart - Code 32, Oxygen (O2) Sensor (Calif.)
