Engine Controls - Tests W/Codes - TBI
›
Diagnostic Code Charts
›
Read Memory Mode
Read Memory Mode

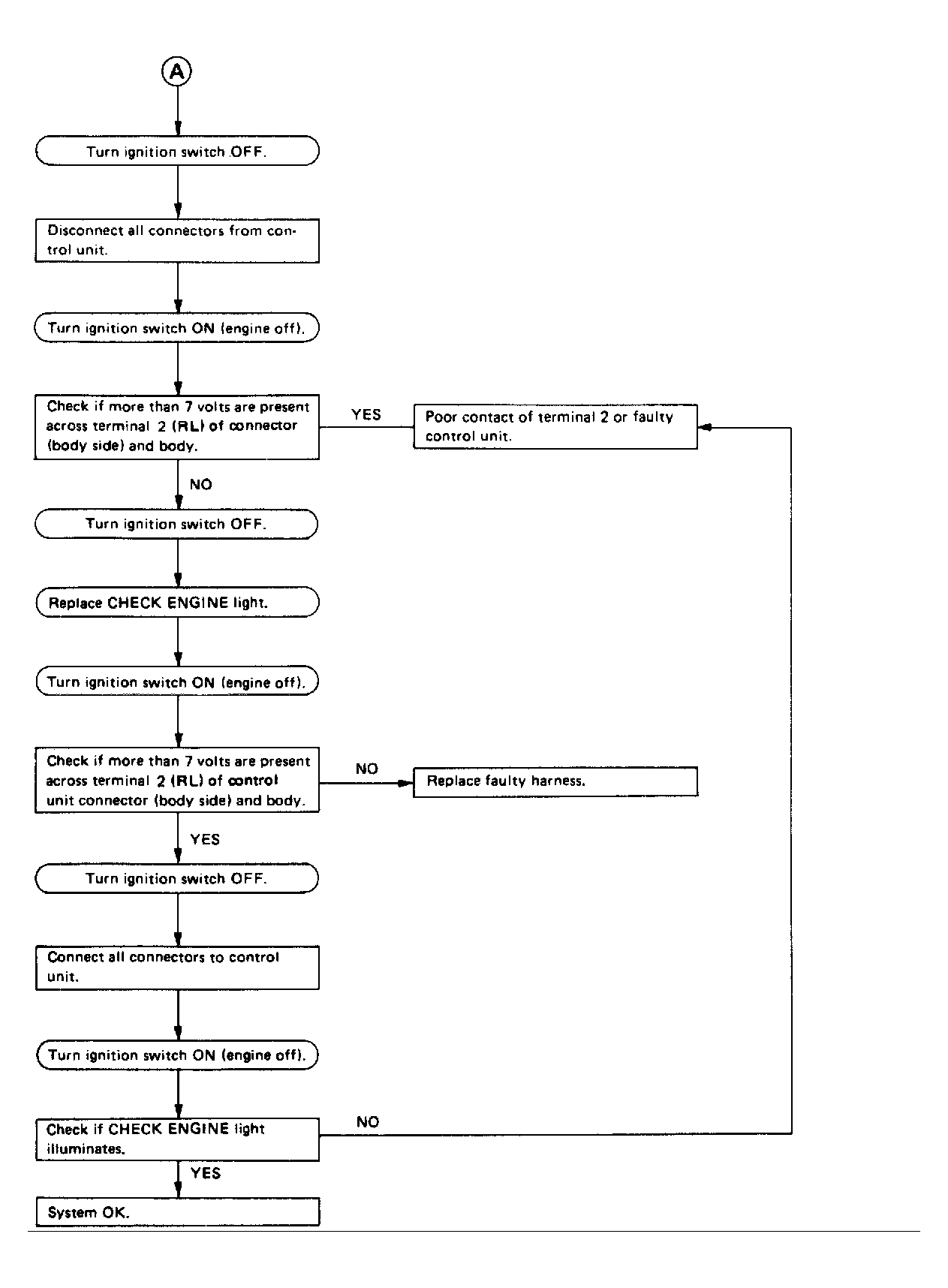

Fig 1: Flow Chart (1 of 3) - Read Memory Mode

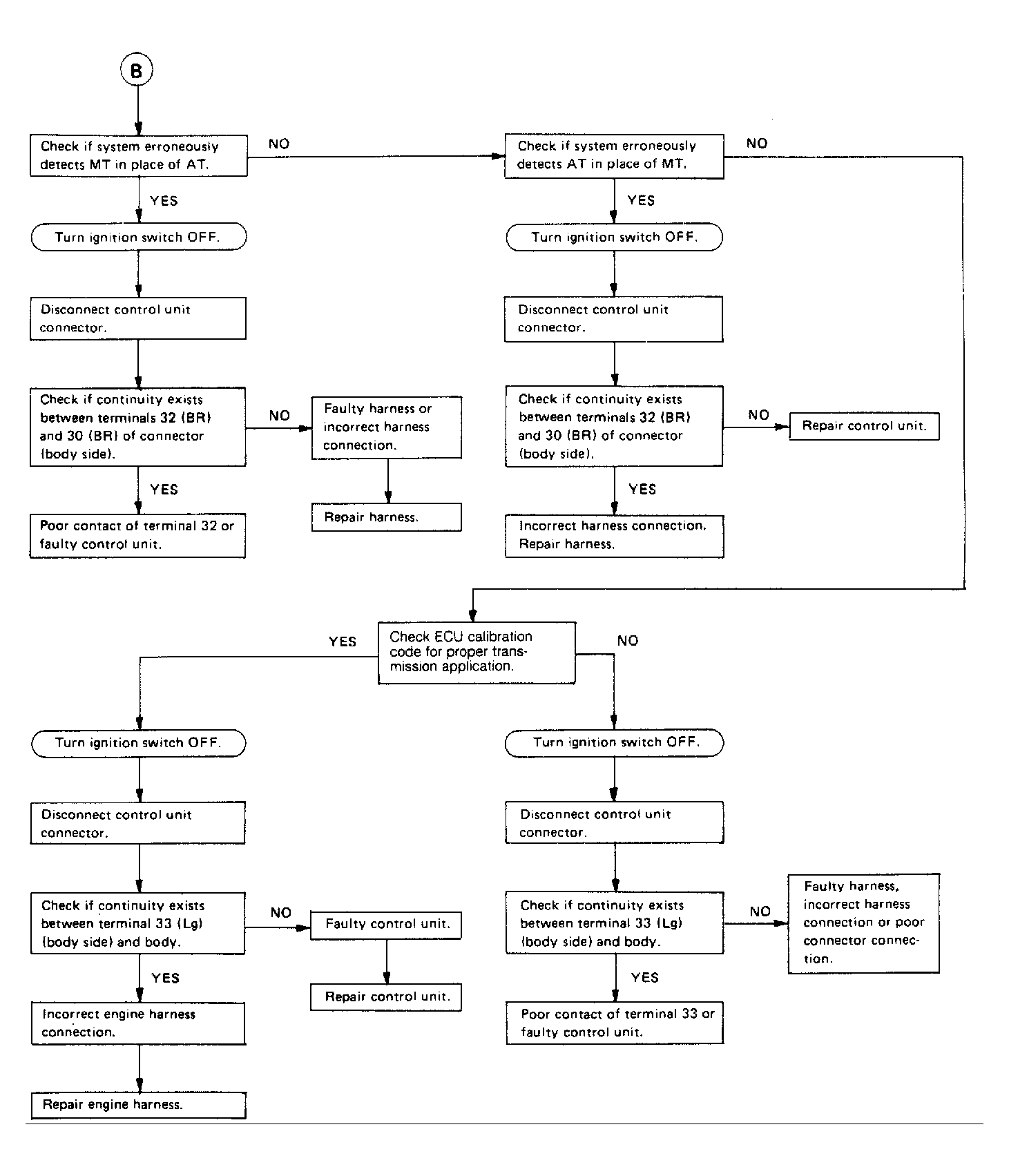

Fig 2: Flow Chart (2 of 3) - Read Memory Mode
Fig 3: Flow Chart (3 of 3) - Read Memory Mode
