Code 23: Airflow Meter Circuit

Fig 1: Schematic - Code 23, Airflow Meter Circuit

G91A18382

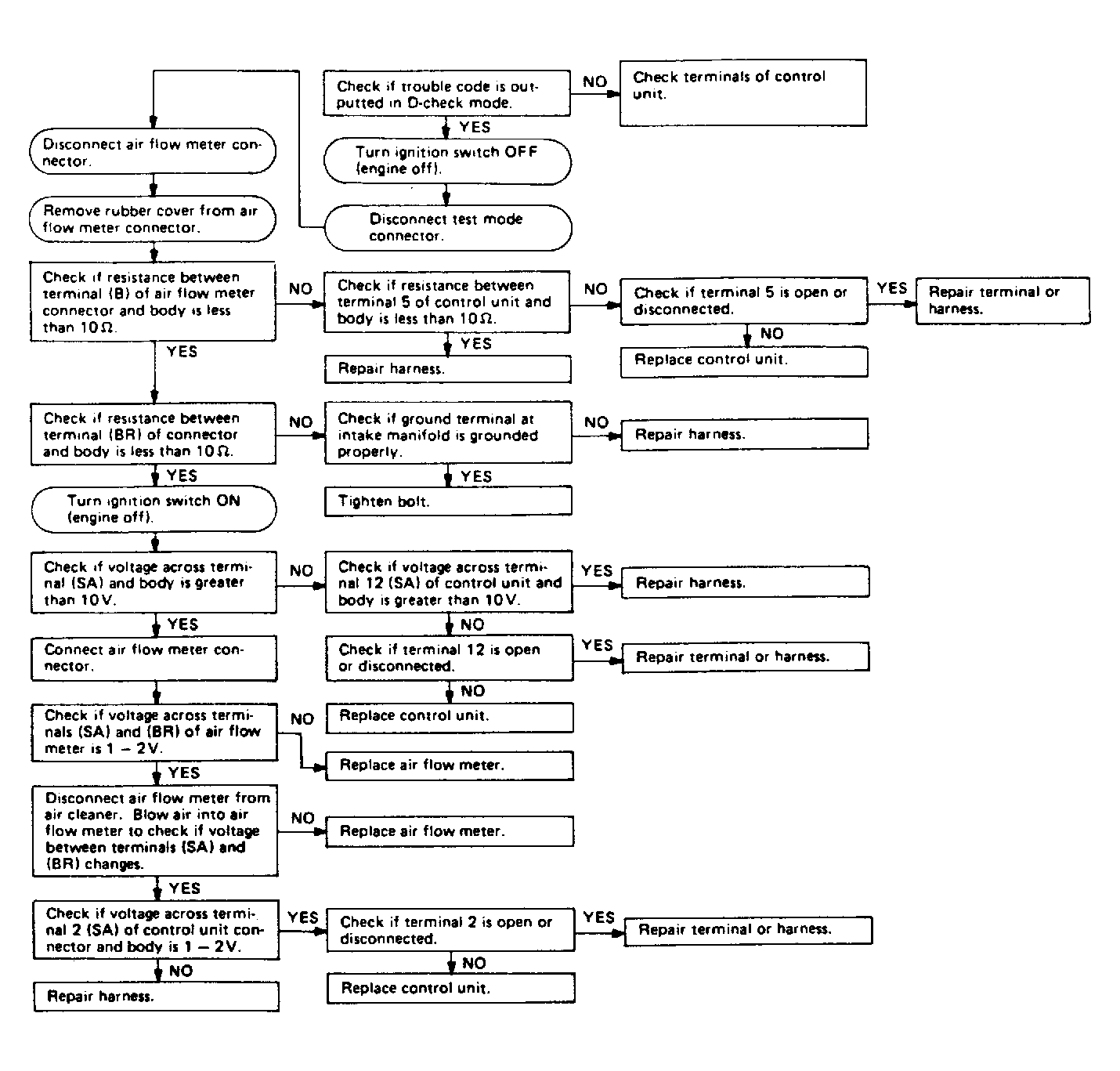

Fig 2: Flow Chart - Code 23, Airflow Meter Circuit

G90H21896
