Code 31: Throttle Position Sensor (TPS)

Fig 1: Schematic - Code 31, TPS Sensor

G91B18383

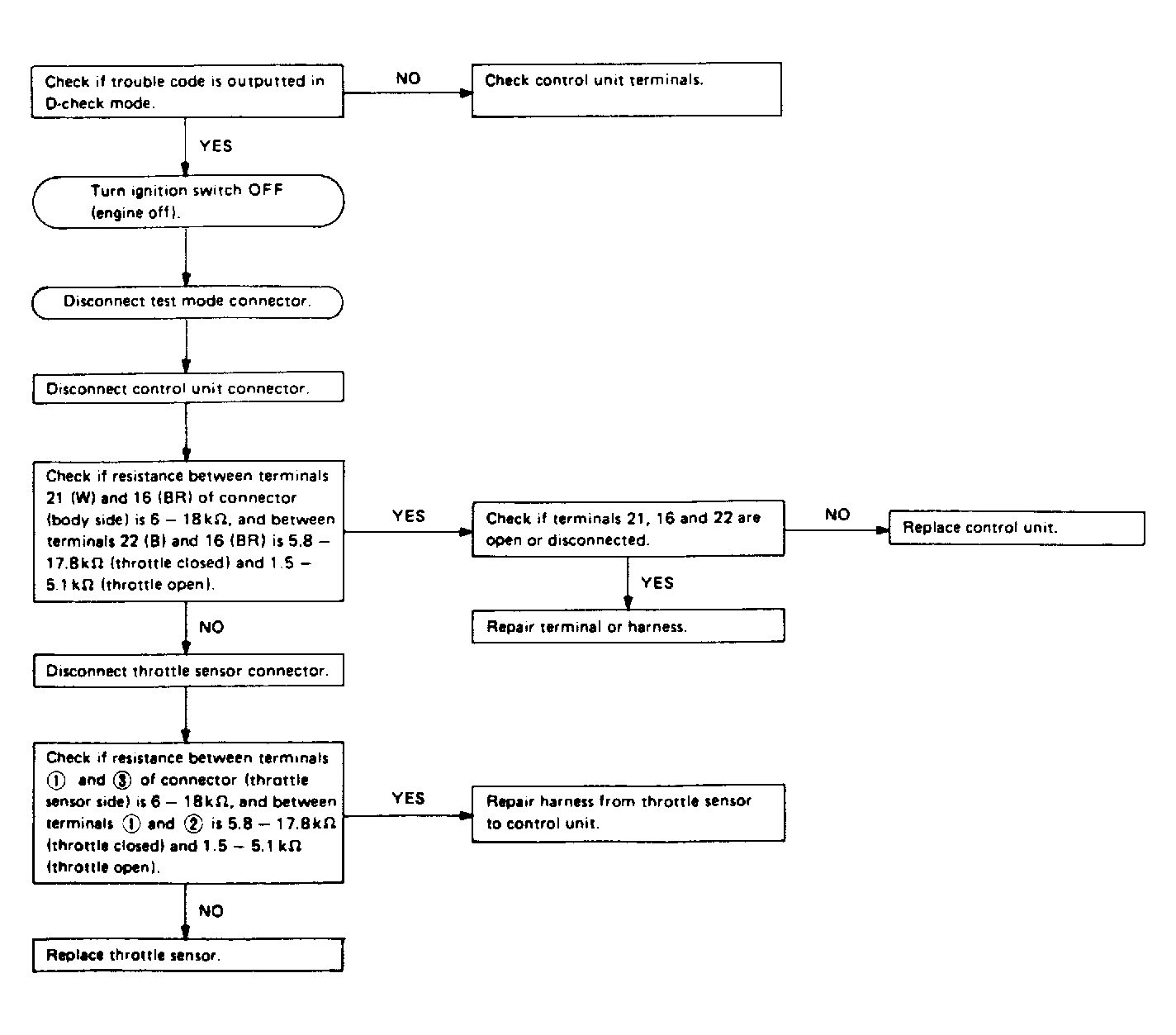

Fig 2: Flow Chart - Code 31, TPS Sensor

G90I21897
