Ignition Control System Tests - Carb. Models Only
Ignition Control System Tests - Carb. Models Only

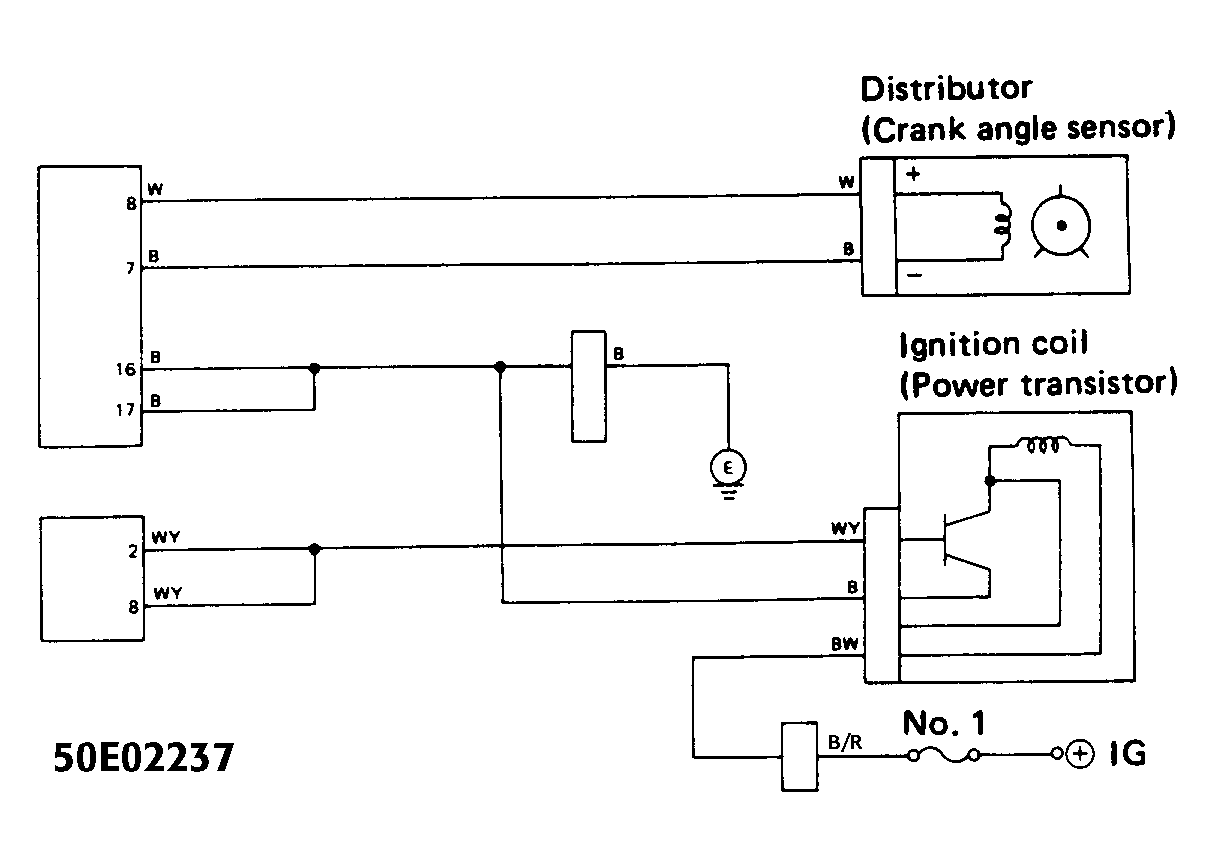

Fig 1: Justy Ignition System Schematic
Courtesy of SUBARU OF AMERICA, INC.

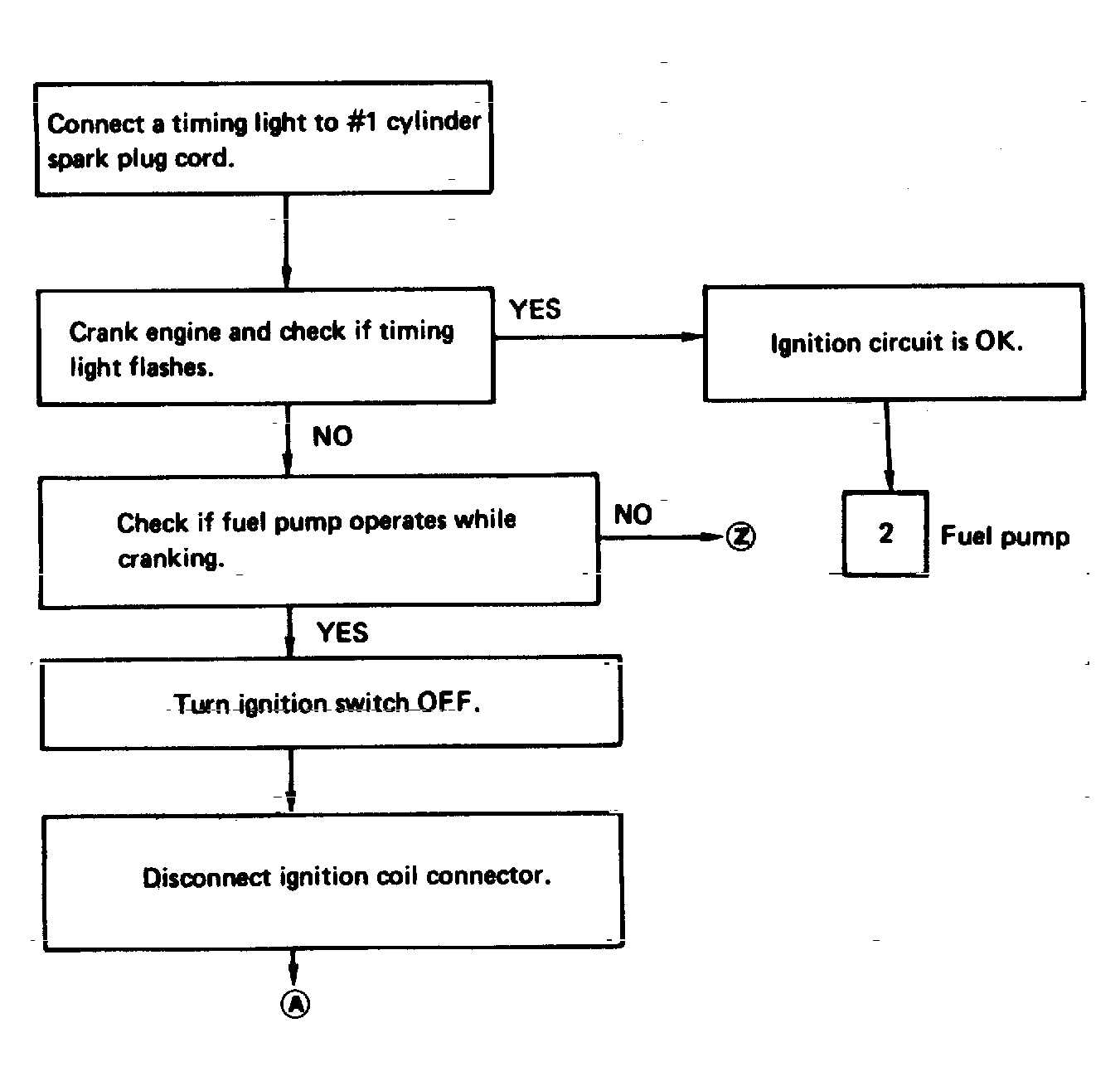

Fig 2: Flow Chart (1 of 3) - Justy Ignition System
Courtesy of SUBARU OF AMERICA, INC.

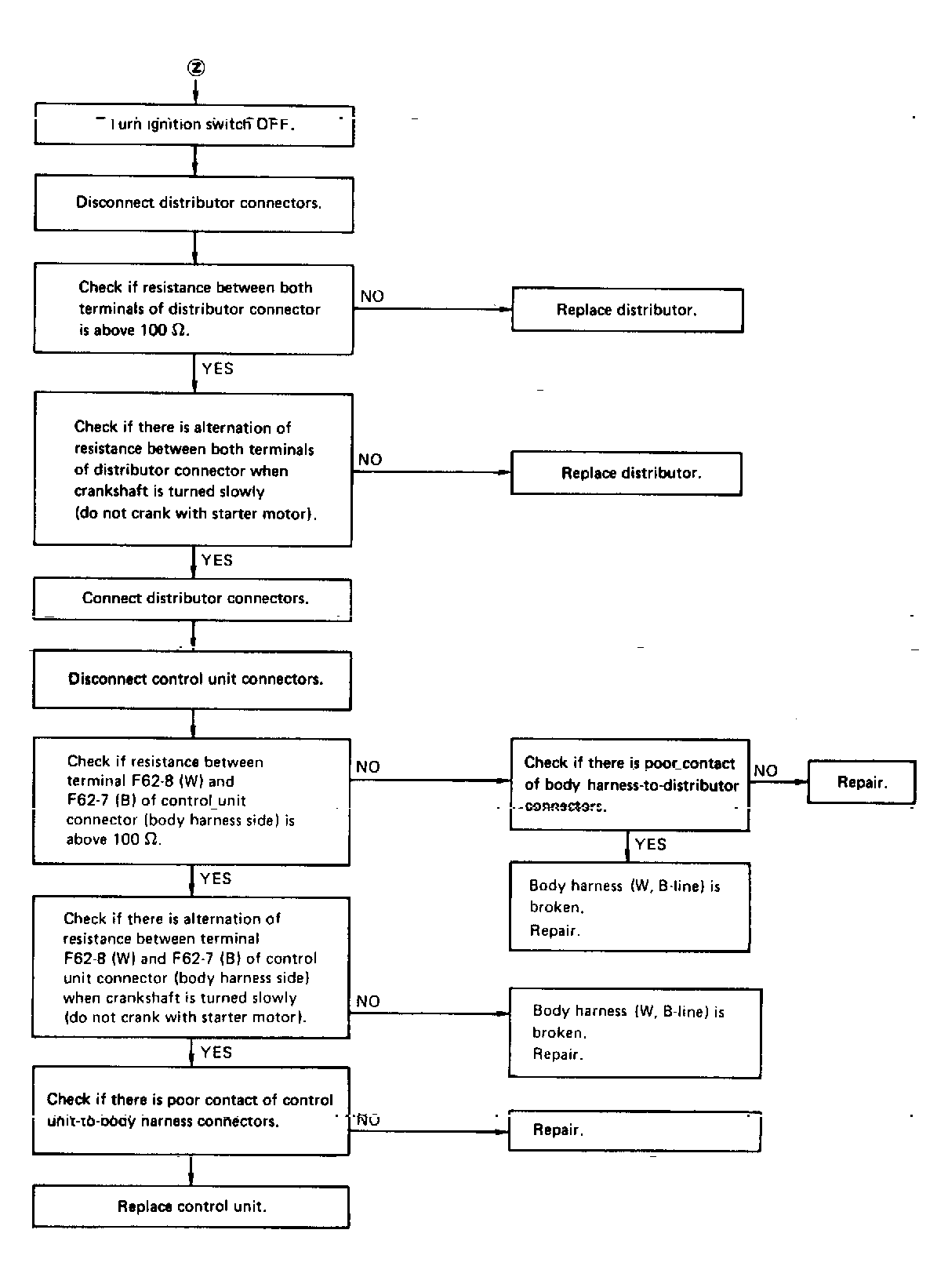

Fig 3: Flow Chart (2 of 3) - Justy Ignition System
Courtesy of SUBARU OF AMERICA, INC.

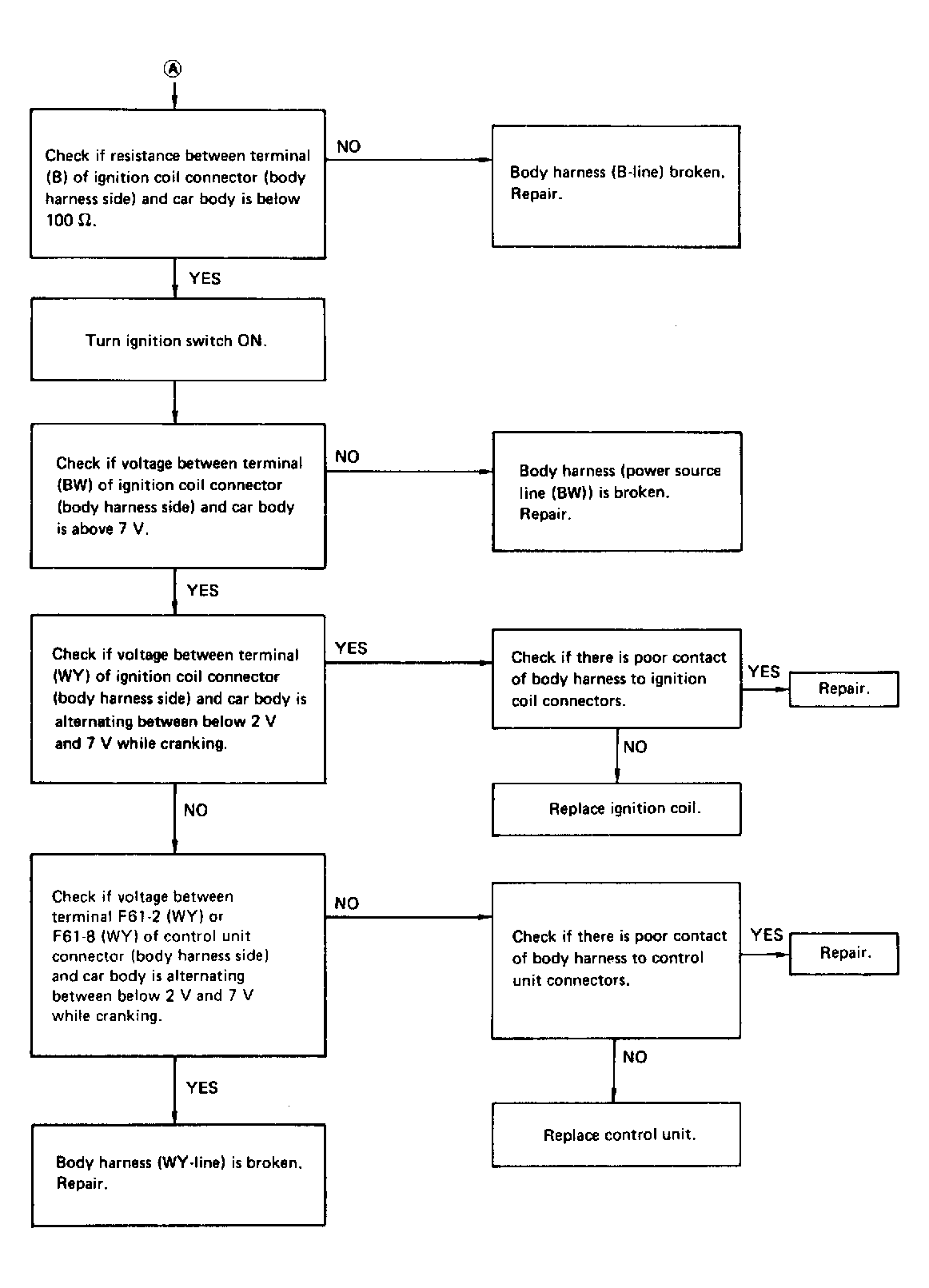

Fig 4: Flow Chart (3 of 3) - Justy Ignition System
Courtesy of SUBARU OF AMERICA, INC.
