Code 22: VLC Solenoid Valve

Fig 1: Wiring Schematic - Code 22: VLC Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.

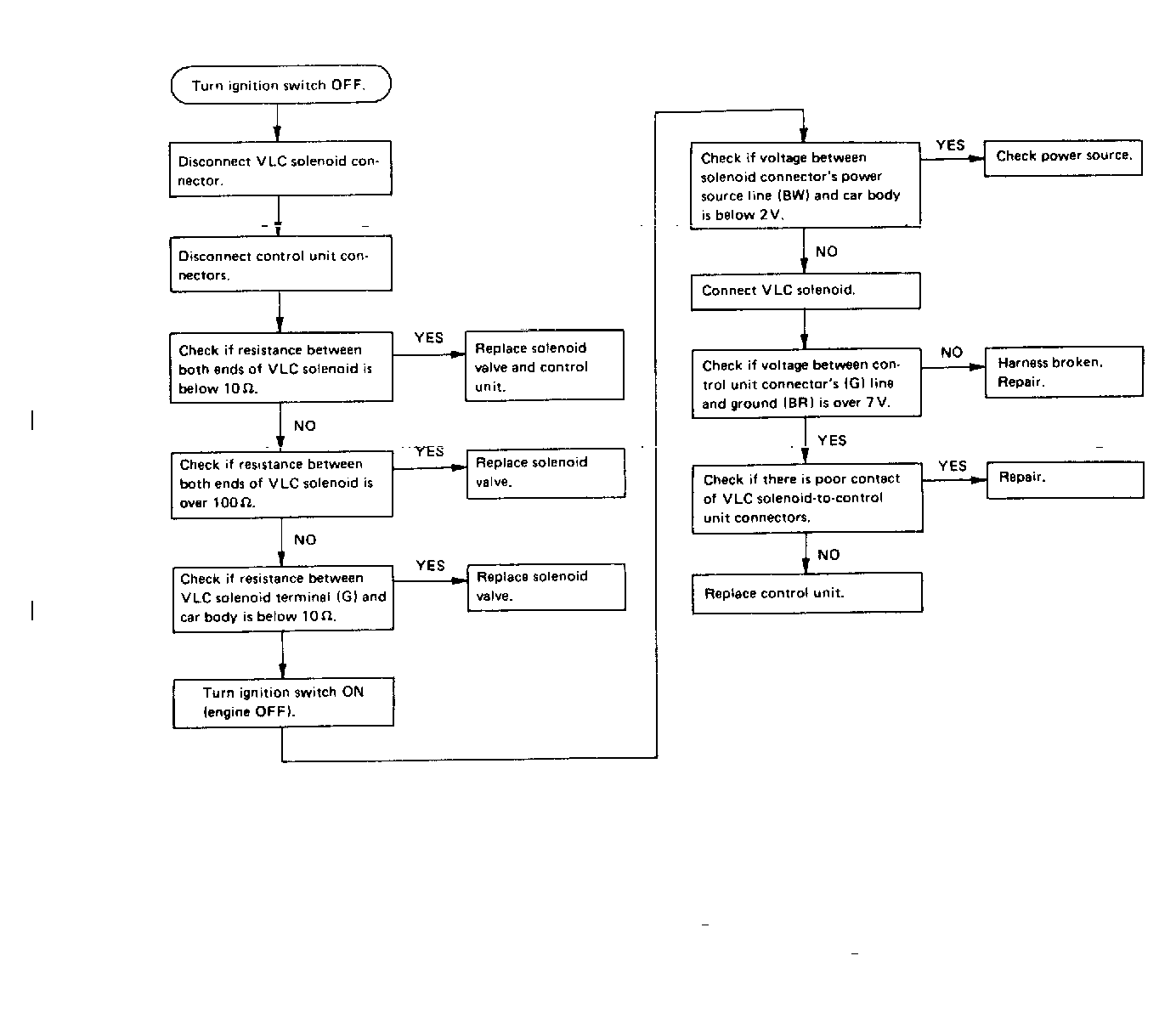

Fig 2: Flow Chart - Code 22: VLC Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.
