Code 53: HAC Solenoid Valve

Fig 1: Wiring Schematic - Code 53: HAC Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.

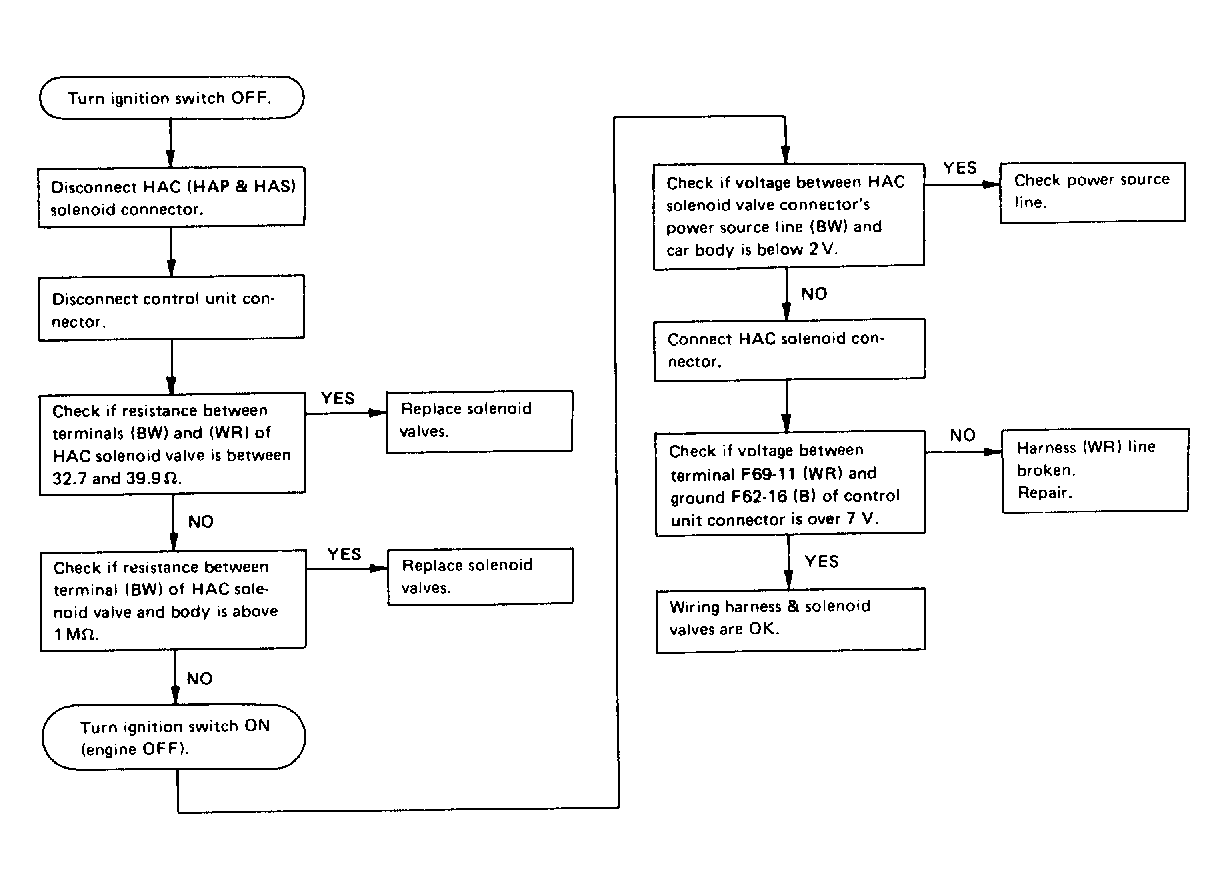

Fig 2: Flow Chart - Code 53: HAC Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.
