Code 24: ISC Solenoid Valve

Fig 1: Schematic - Code 24, ISC Solenoid Valve

G91D18336

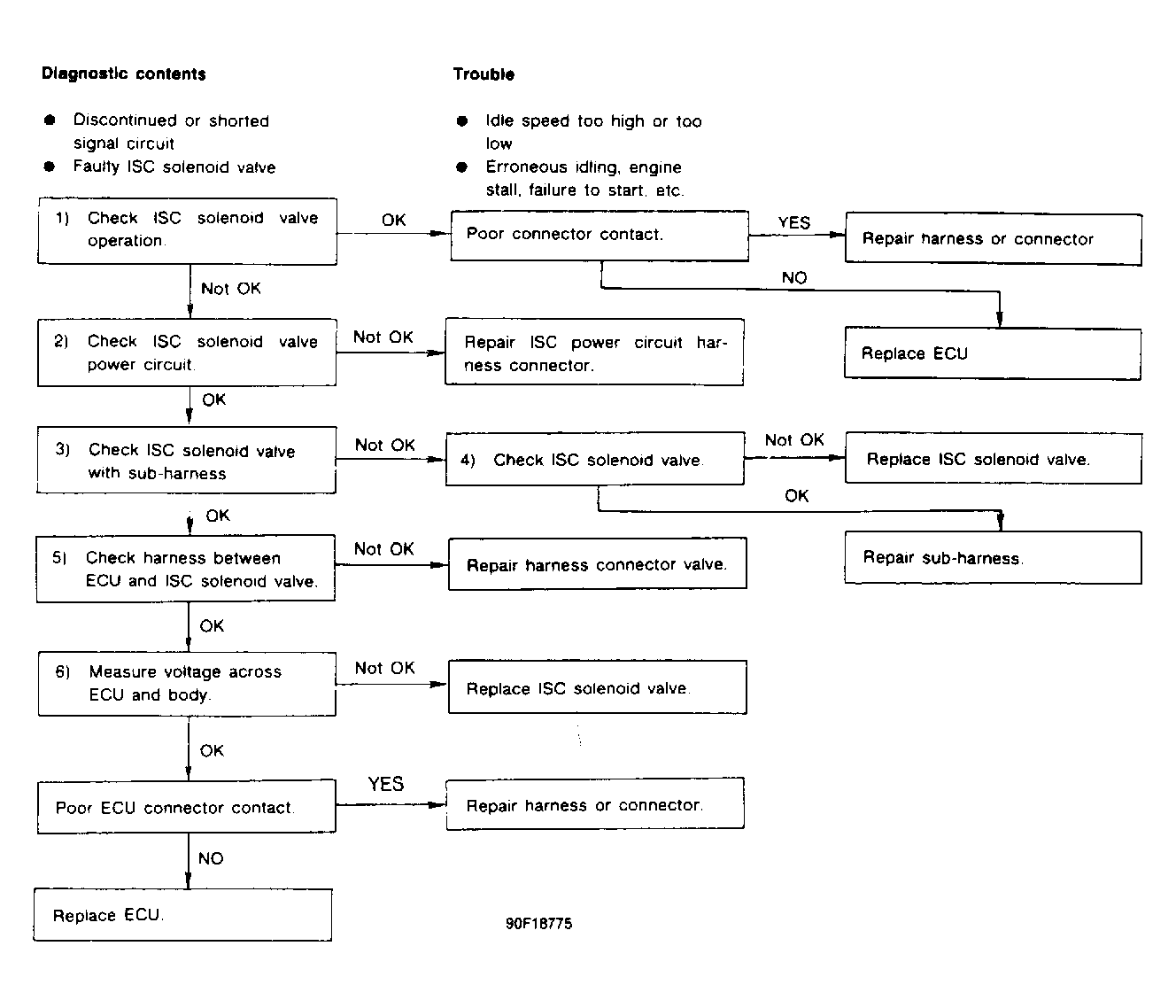

Fig 2: Flow Chart - Code 24, ISC Solenoid Valve

G90F18775
