Anti-Lock Brake System: Wiring Diagram

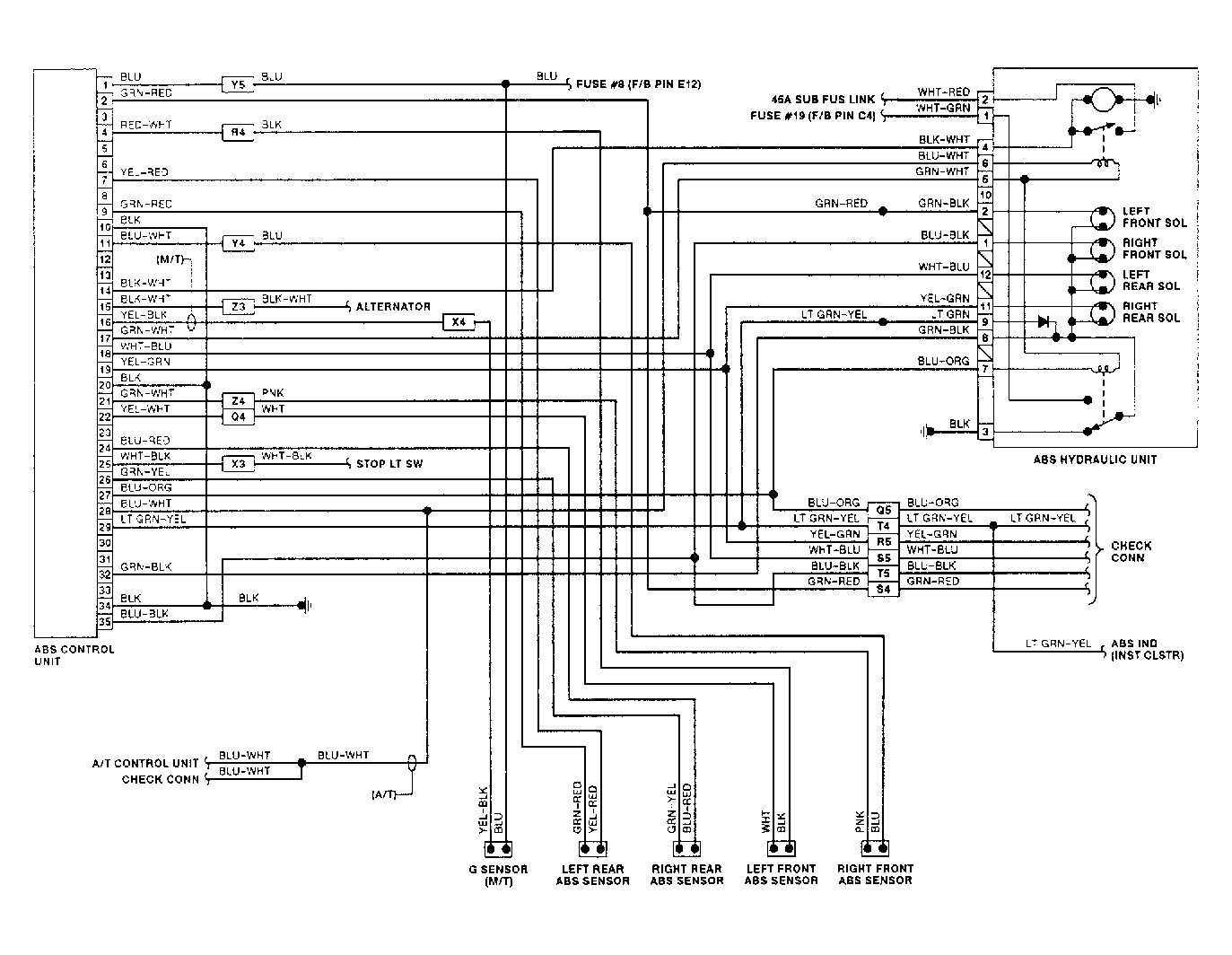

Fig 1: Legacy ABS Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
