Code 24: Air Control Valve

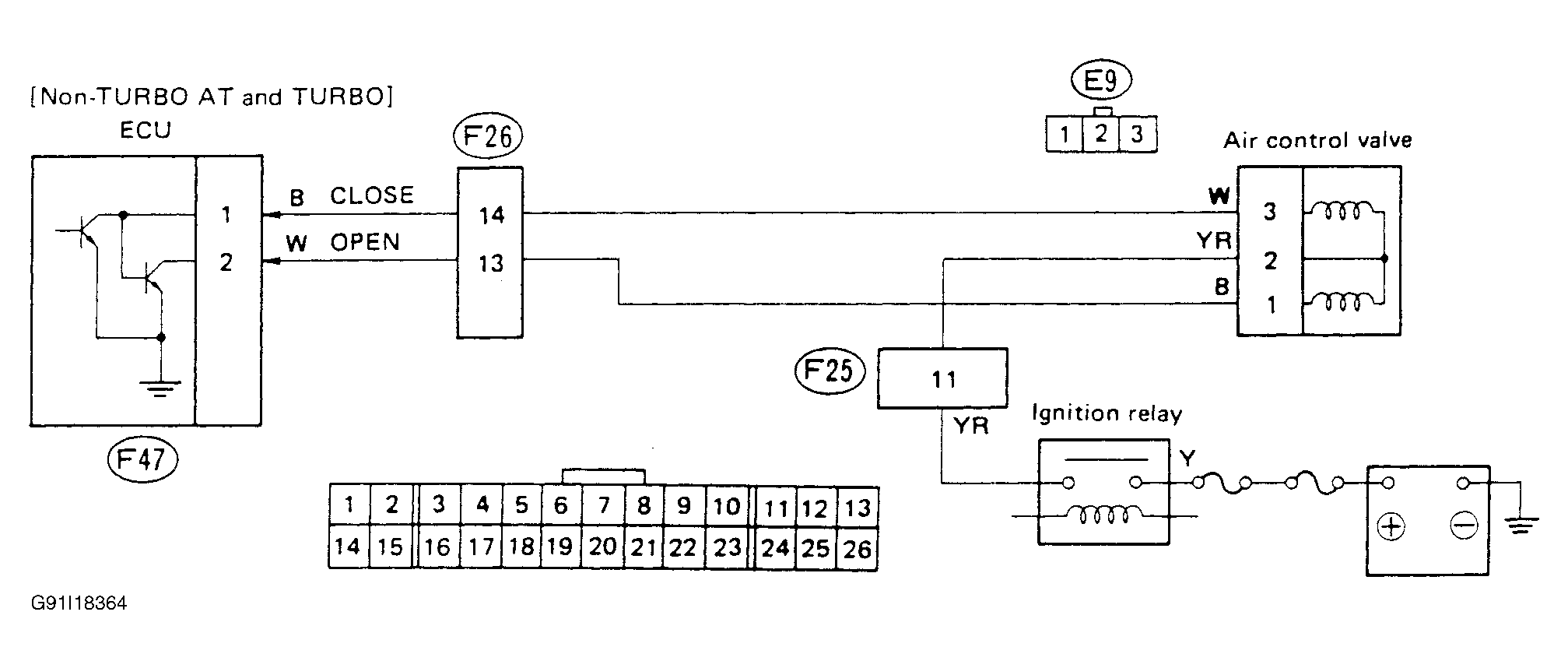

Fig 1: Schematic - Code 24, Air Control Valve (Non-Turbo M/T)

Fig 2: Schematic - Code 24, Air Control Valve (Non-Turbo A/T)

Fig 3: Schematic - Code 24, Air Control Valve (Turbo)

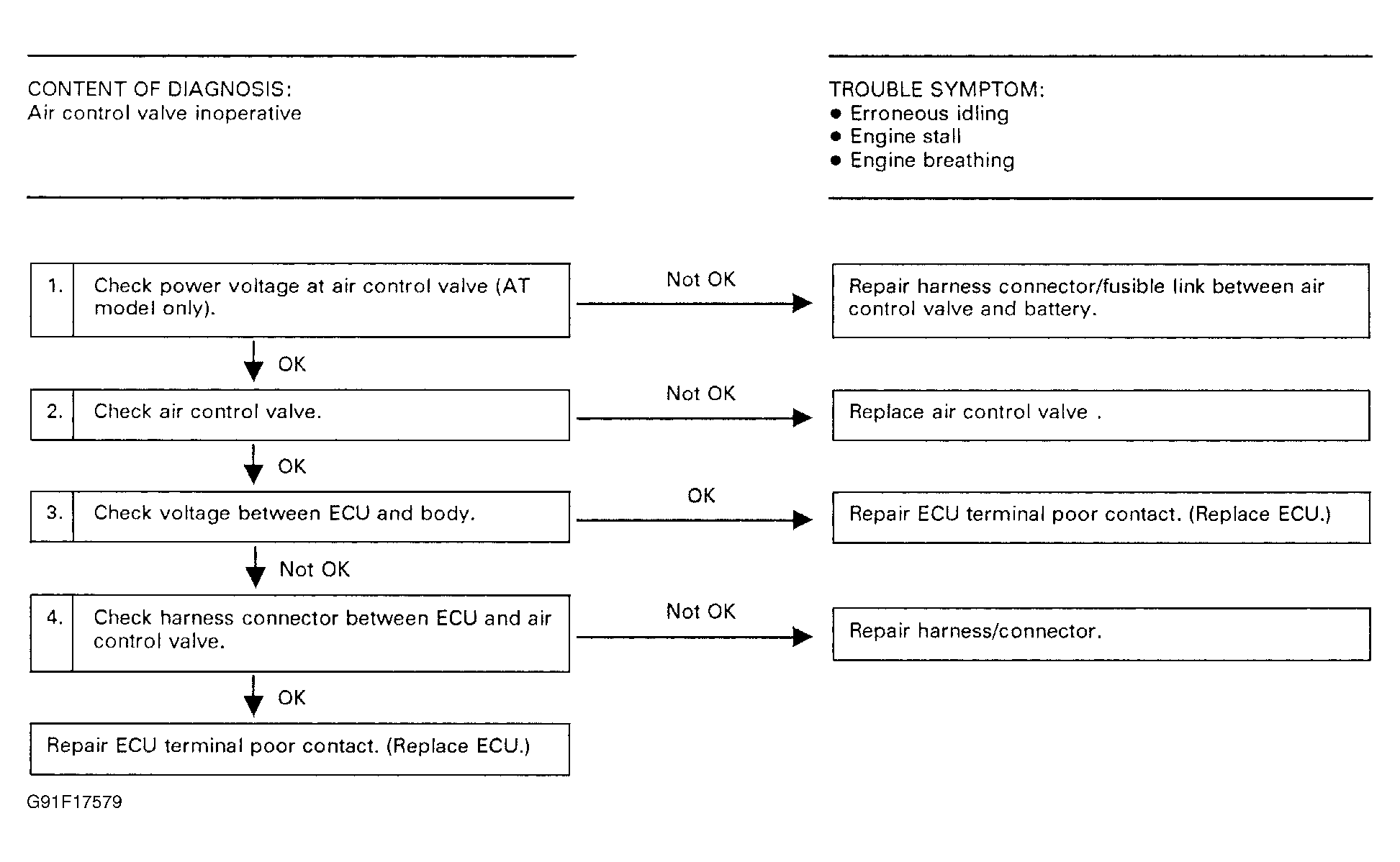

Fig 4: Flow Chart - Code 24, Air Control Valve

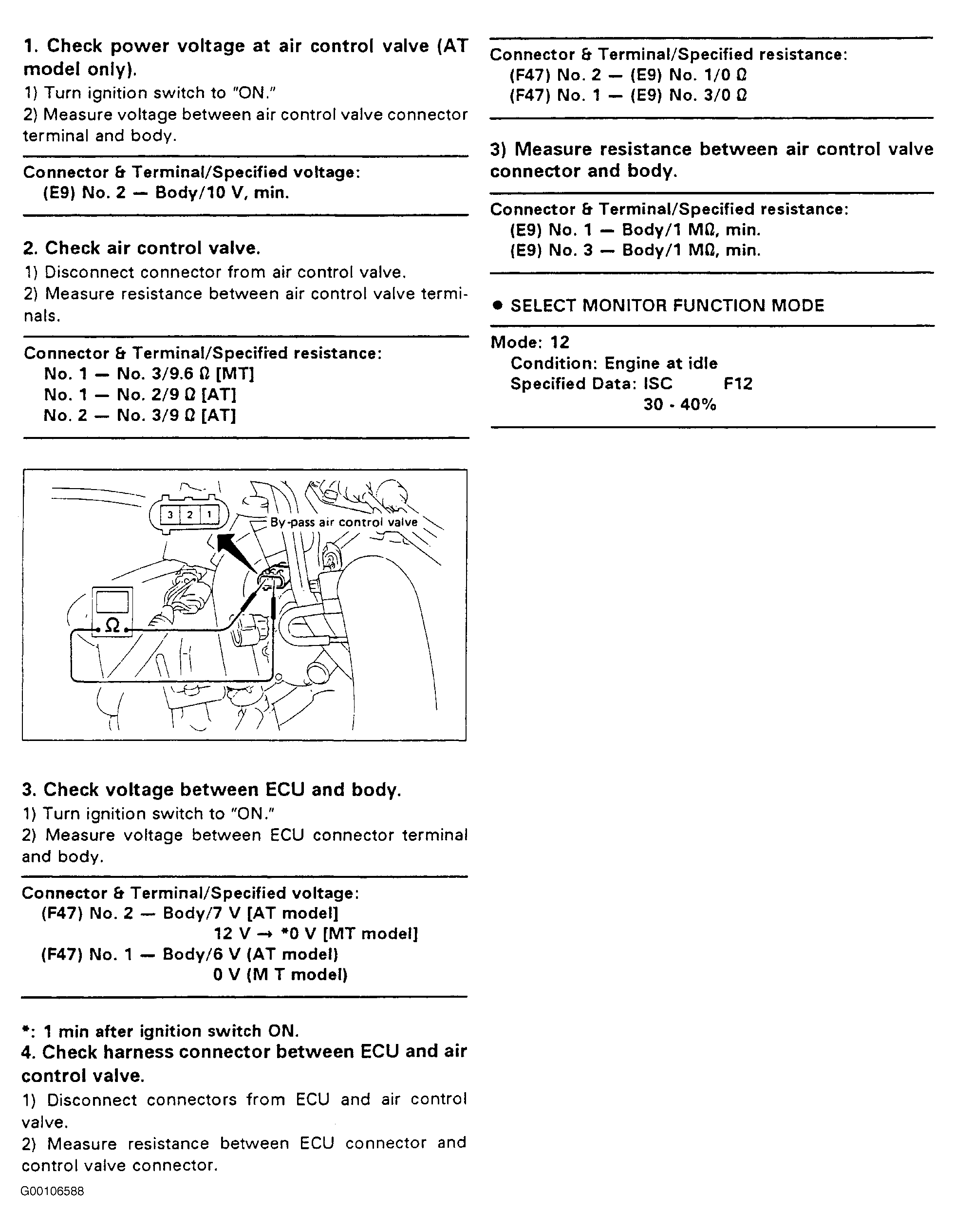

Fig 5: Code 24, Flow Chart Diagnostic Aids
