Front Wiper Switch

Ensure continuity is present between terminals as indicated in appropriate figure. SeeFig 1 . Repair or replace as necessary.

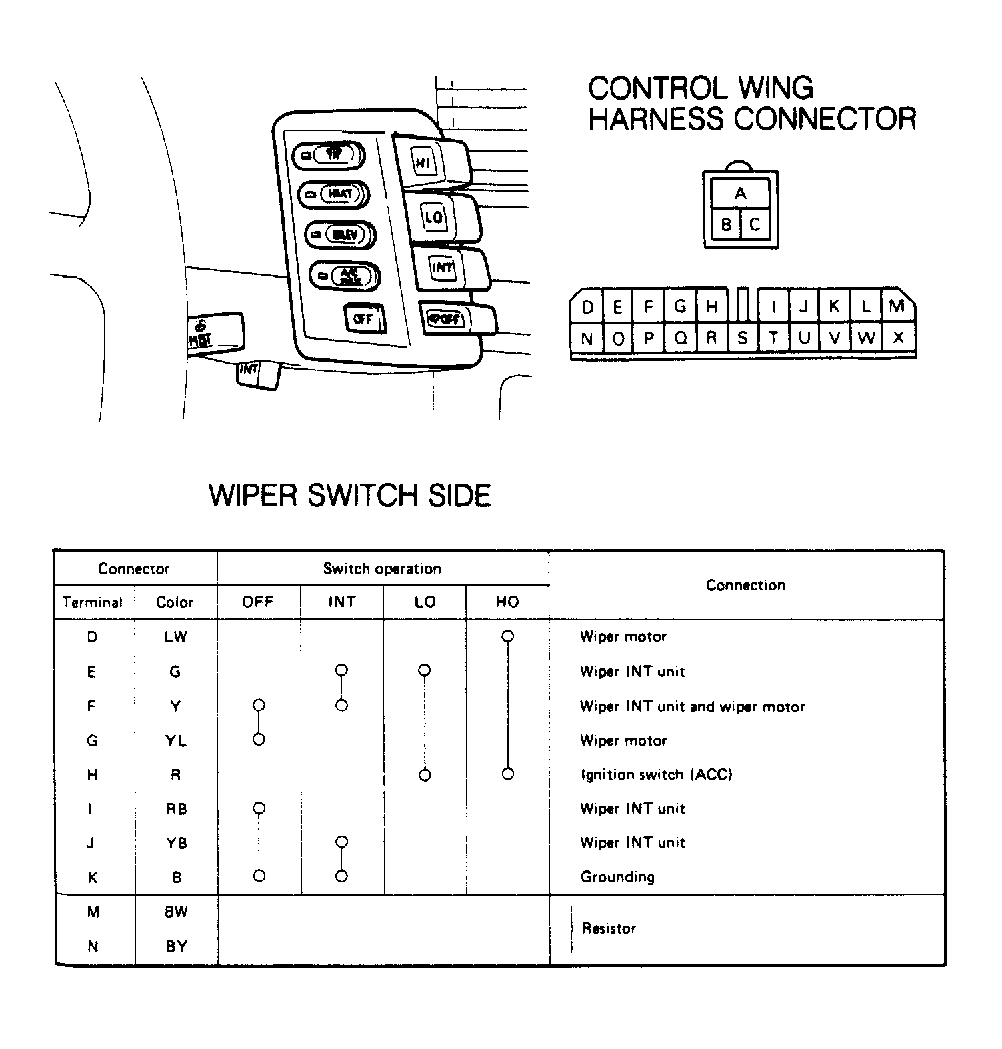

Fig 1: Testing Front Wiper Switch (XT & XT6)

Courtesy of SUBARU OF AMERICA, INC.
