Sub Switch
Sub Switch

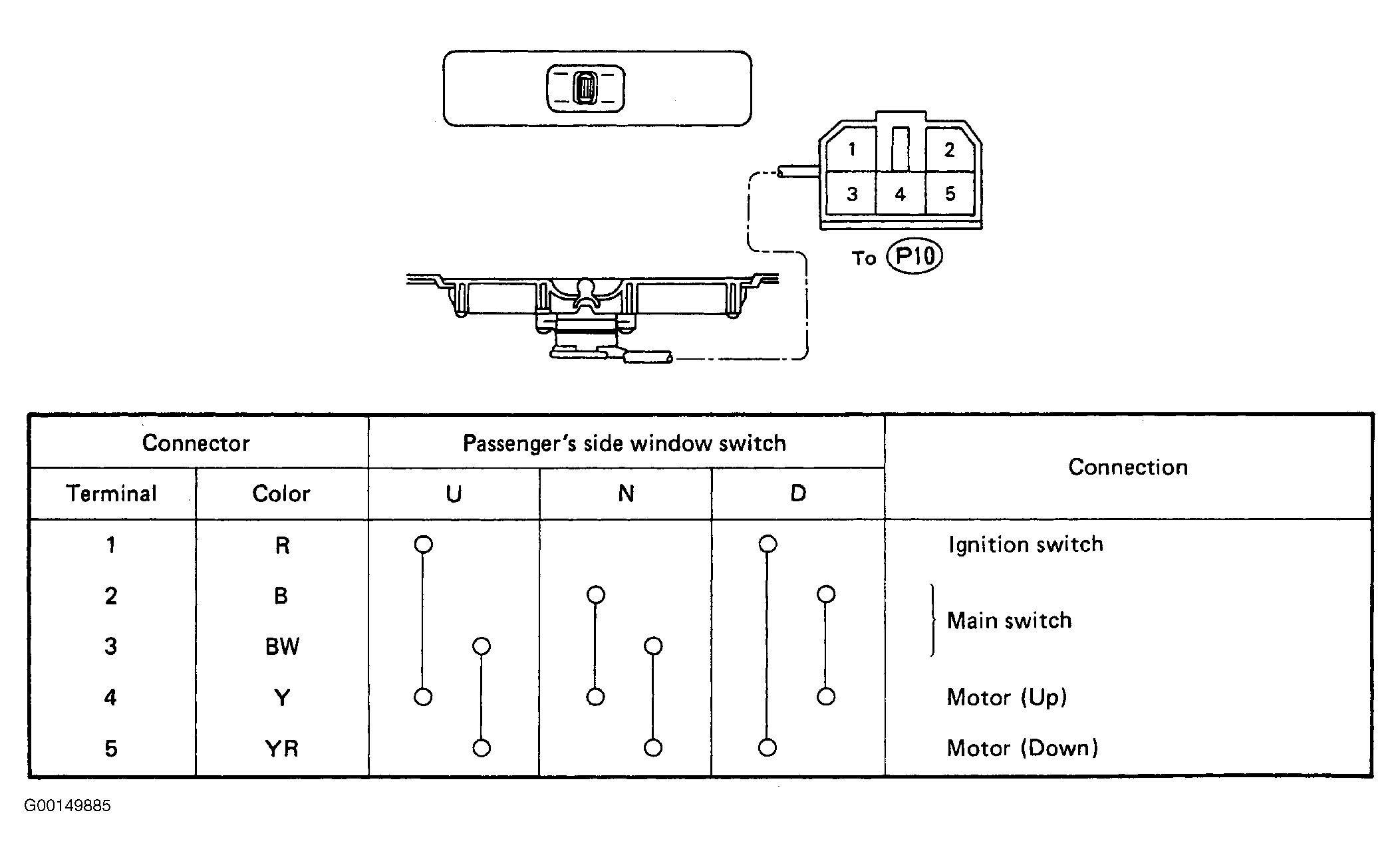

Fig 1: Connector Identification & Continuity Testing
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
