Code 25: Fuel Injectors
Code 25: Fuel Injectors
Fig 1: Wiring Schematic - Code 25, Injectors 3 & 4 (6-Cyl. XT6)

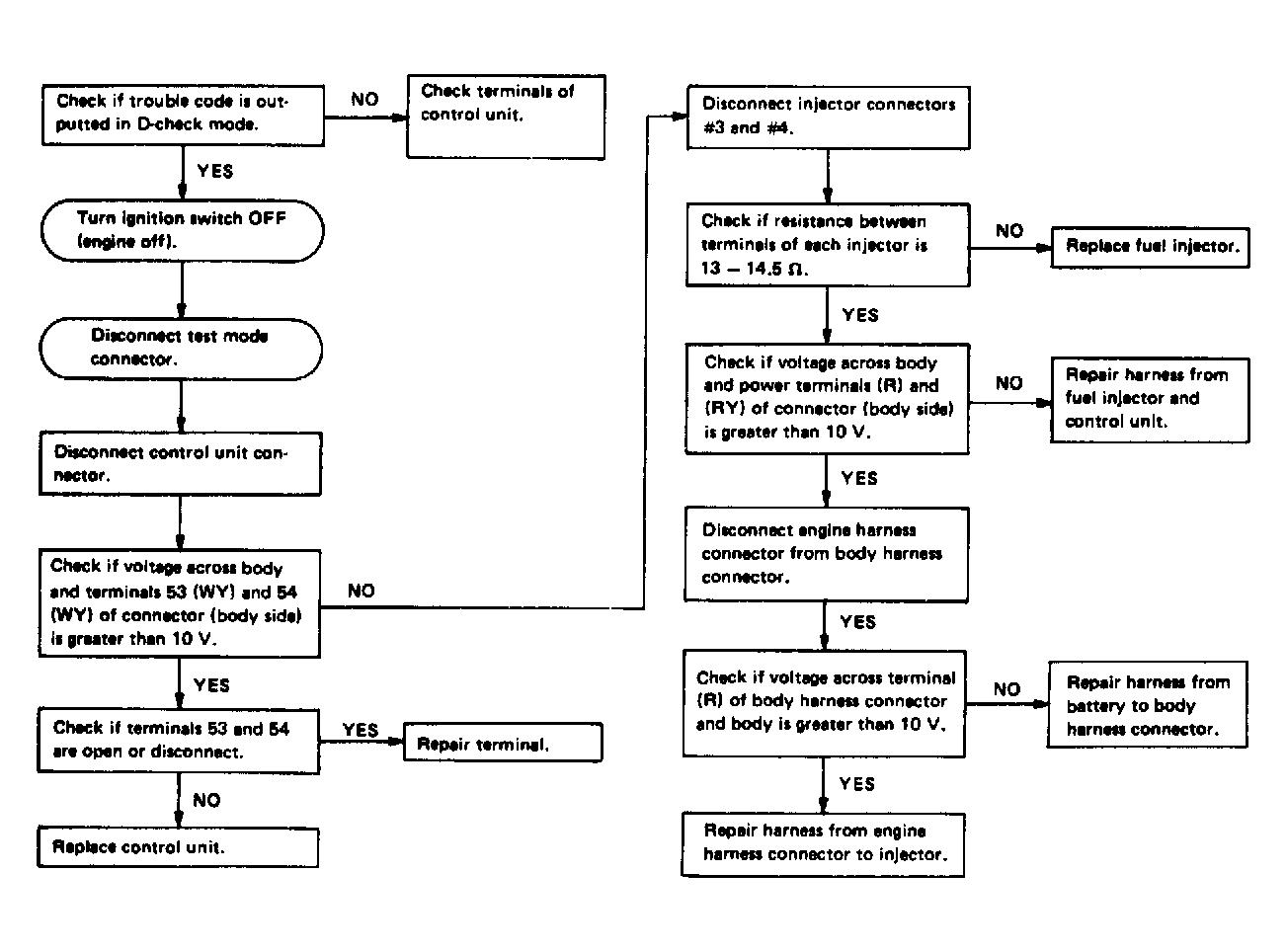

Fig 2: Flow Chart - Code 25, Injectors 3 & 4 (6-Cyl. XT6)
