Code 31: Throttle Position Sensor

Fig 1: Wiring Schematic - Code 31, TPS Sensor (4-Cyl. XT)

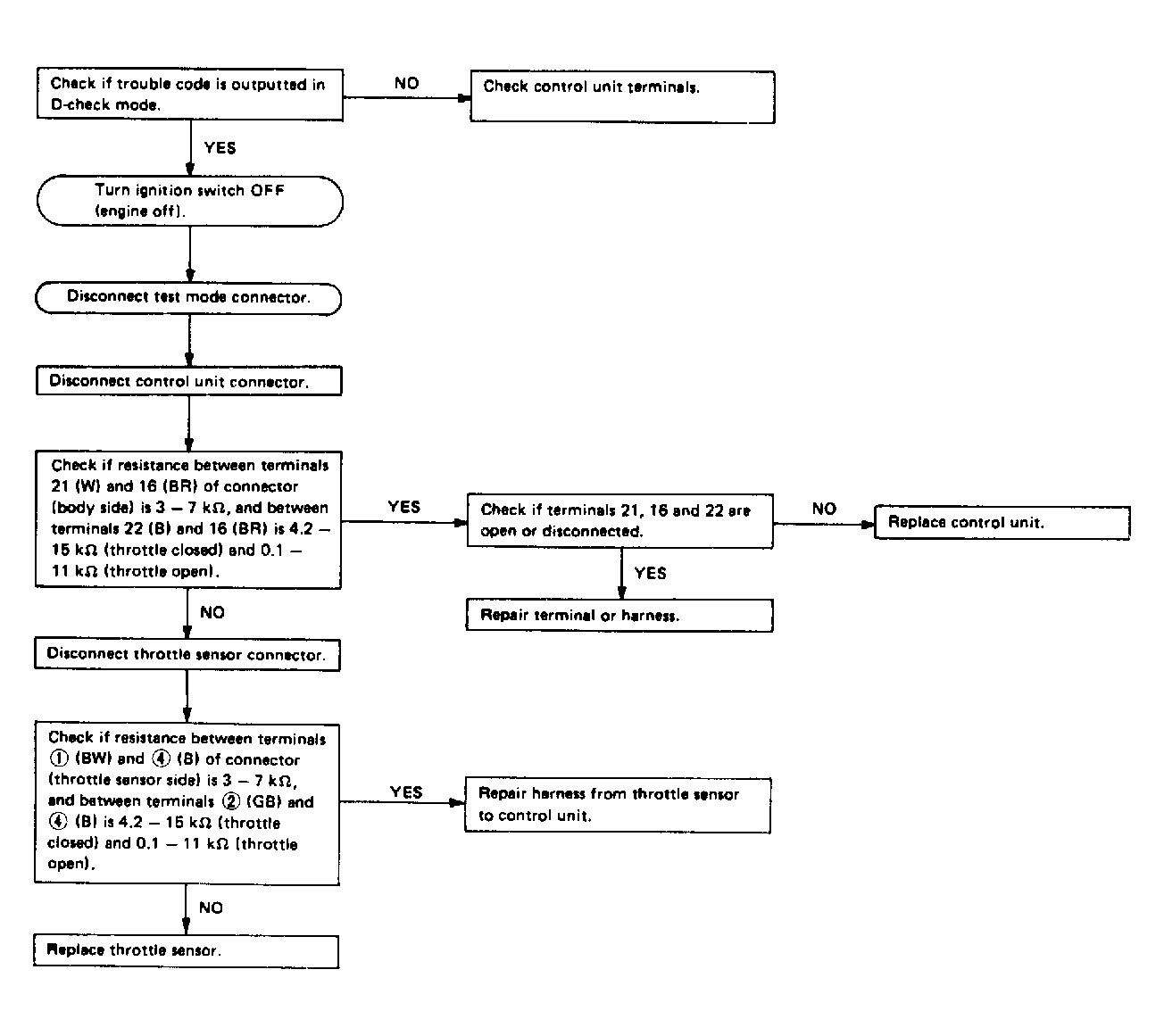

Fig 2: Flow Chart - Code 31, TPS Sensor (4-Cyl. XT)

Fig 3: Wiring Schematic - Code 31, TPS Sensor (6-Cyl. XT6)

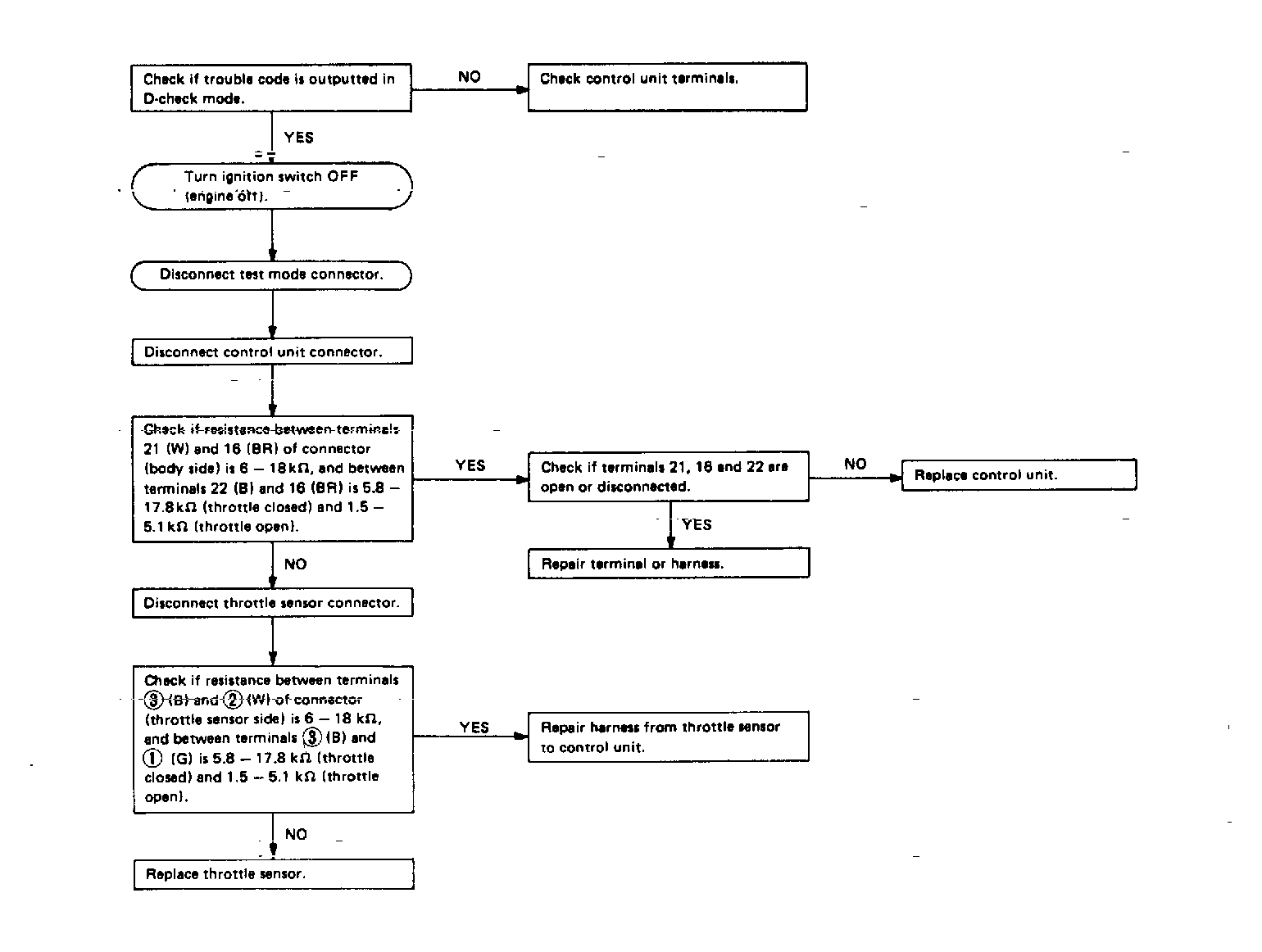

Fig 4: Flow Chart - Code 31, TPS Sensor (6-Cyl. XT6)
