Code 32: Oxygen (O2) Sensor

Fig 1: Wiring Schematic - Code 32, Oxygen (O2) Sensor

G118396

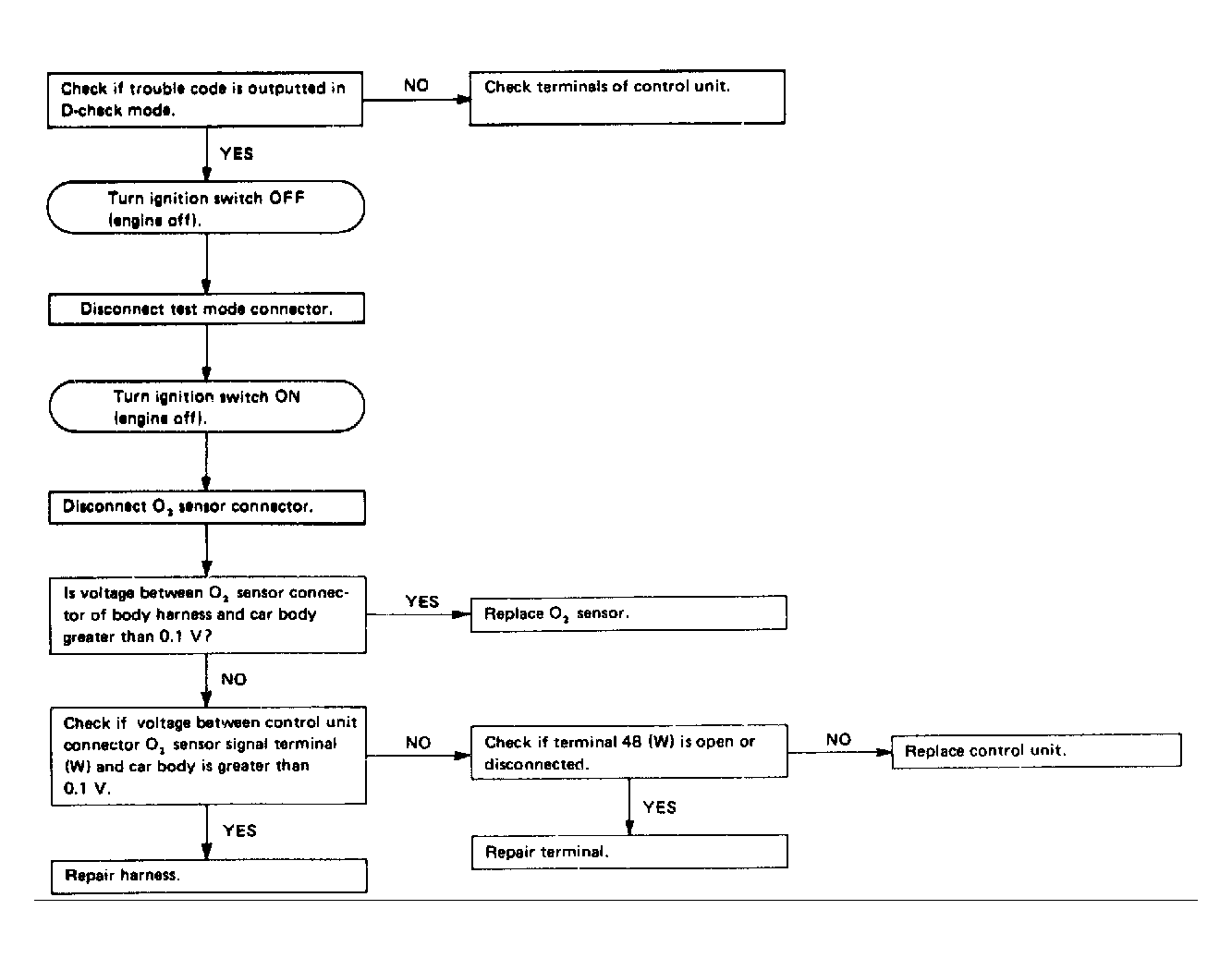

Fig 2: Flow Chart - Code 32, Oxygen (O2) Sensor

G121916
