Fuel System: Carburetor: Installation

To install, reverse removal procedure.

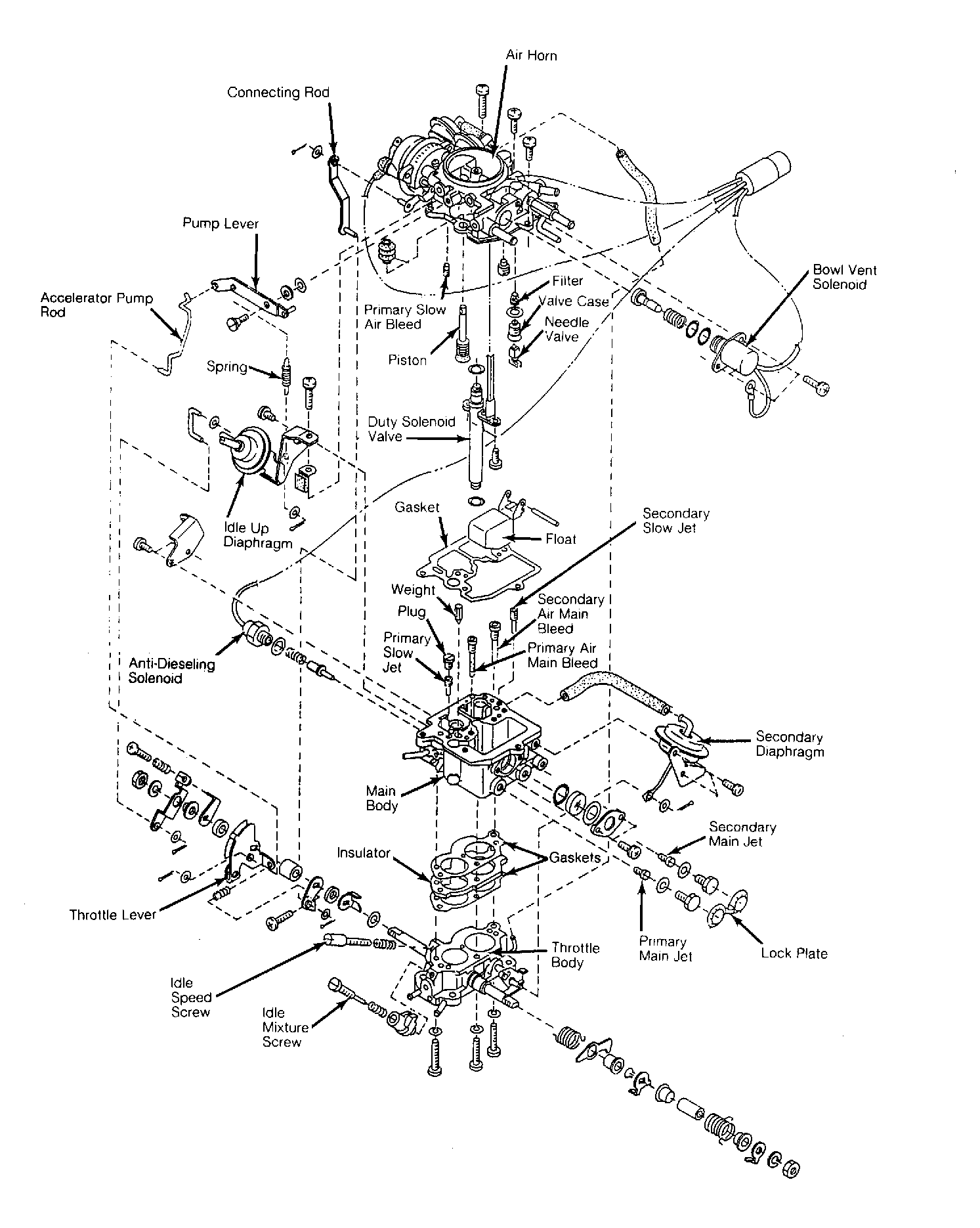

Fig 1: Exploded View Of Carburetor (Justy)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For all on-vehicle adjustment procedures not covered in this article, see ADJUSTMENTS article in the ENGINE PERFORMANCE Section.

NOTE: If fuel is not within mark on float chamber sight glass with engine idling, remove air horn and adjust using following procedures.
