Code 21: Coolant (Water) Temperature Sensor

Fig 1: Wiring Schematic - Code 21: Coolant Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.

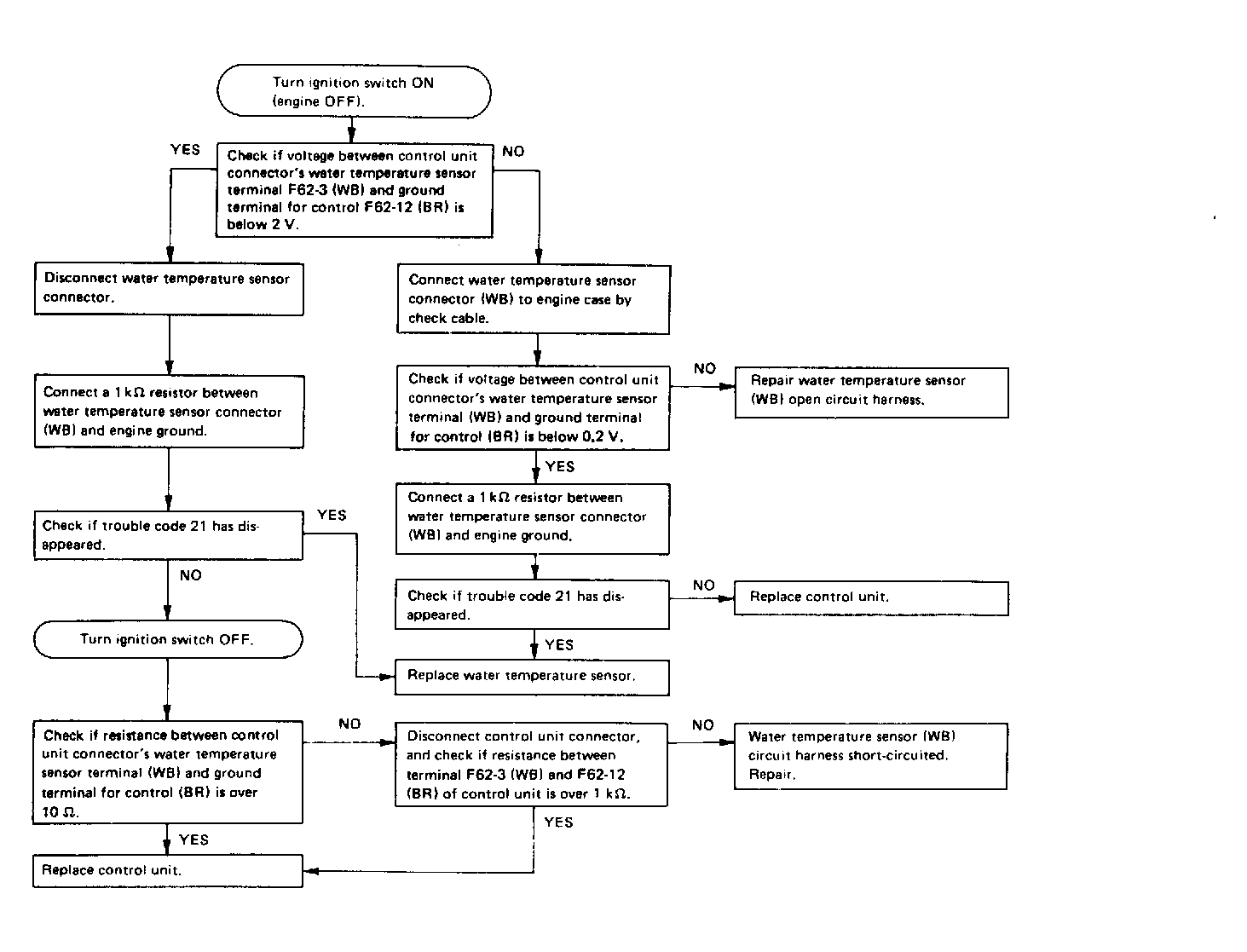

Fig 2: Flow Chart - Code 21: Coolant Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
