Code 46: Radiator Fan Control System
Code 46: Radiator Fan Control System
Fig 1: Wiring Schematic - Code 46: Radiator Fan Control System
Courtesy of SUBARU OF AMERICA, INC.

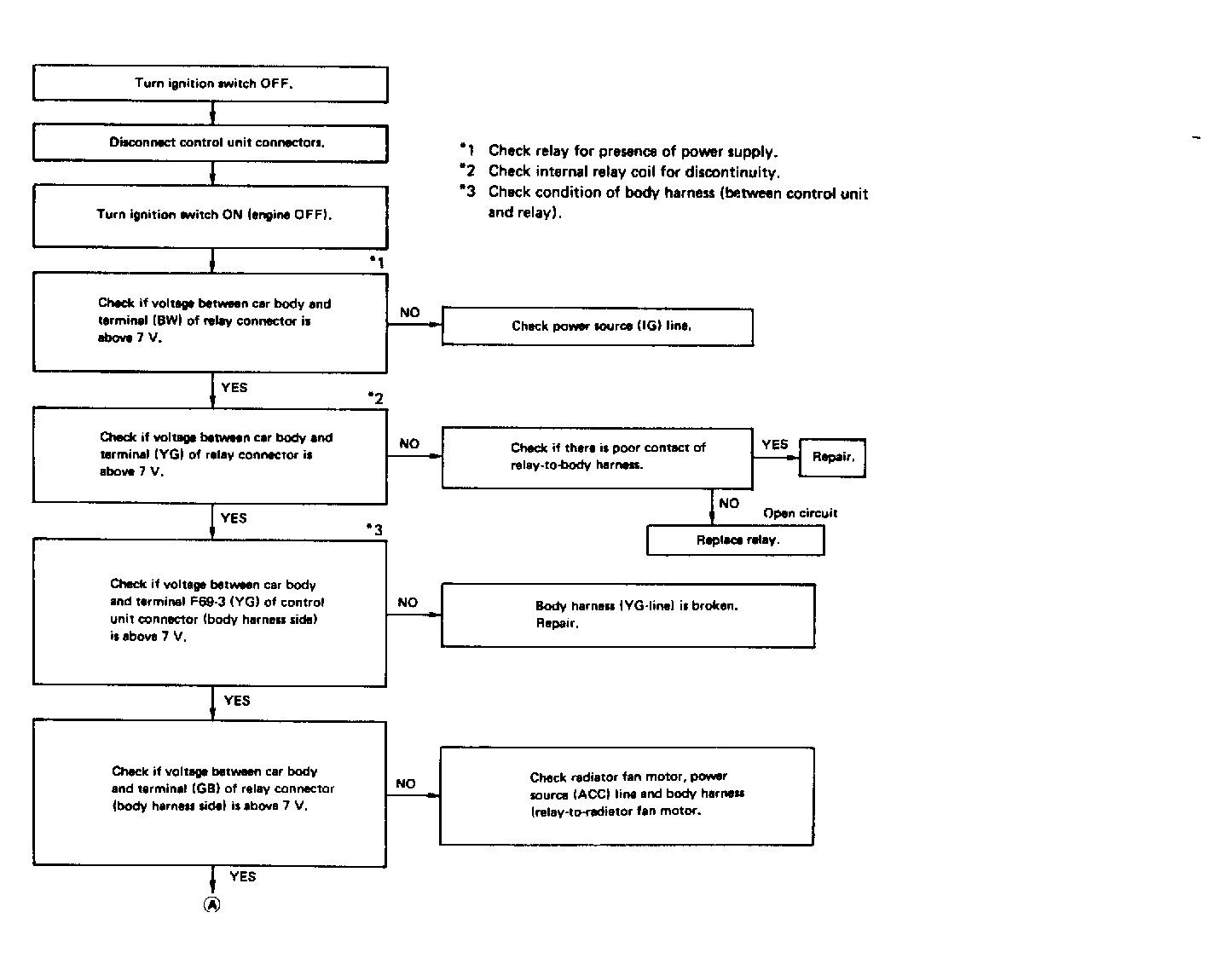

Fig 2: Flow Chart - Code 46: Radiator Fan Control System (1 of 2)
Courtesy of SUBARU OF AMERICA, INC.

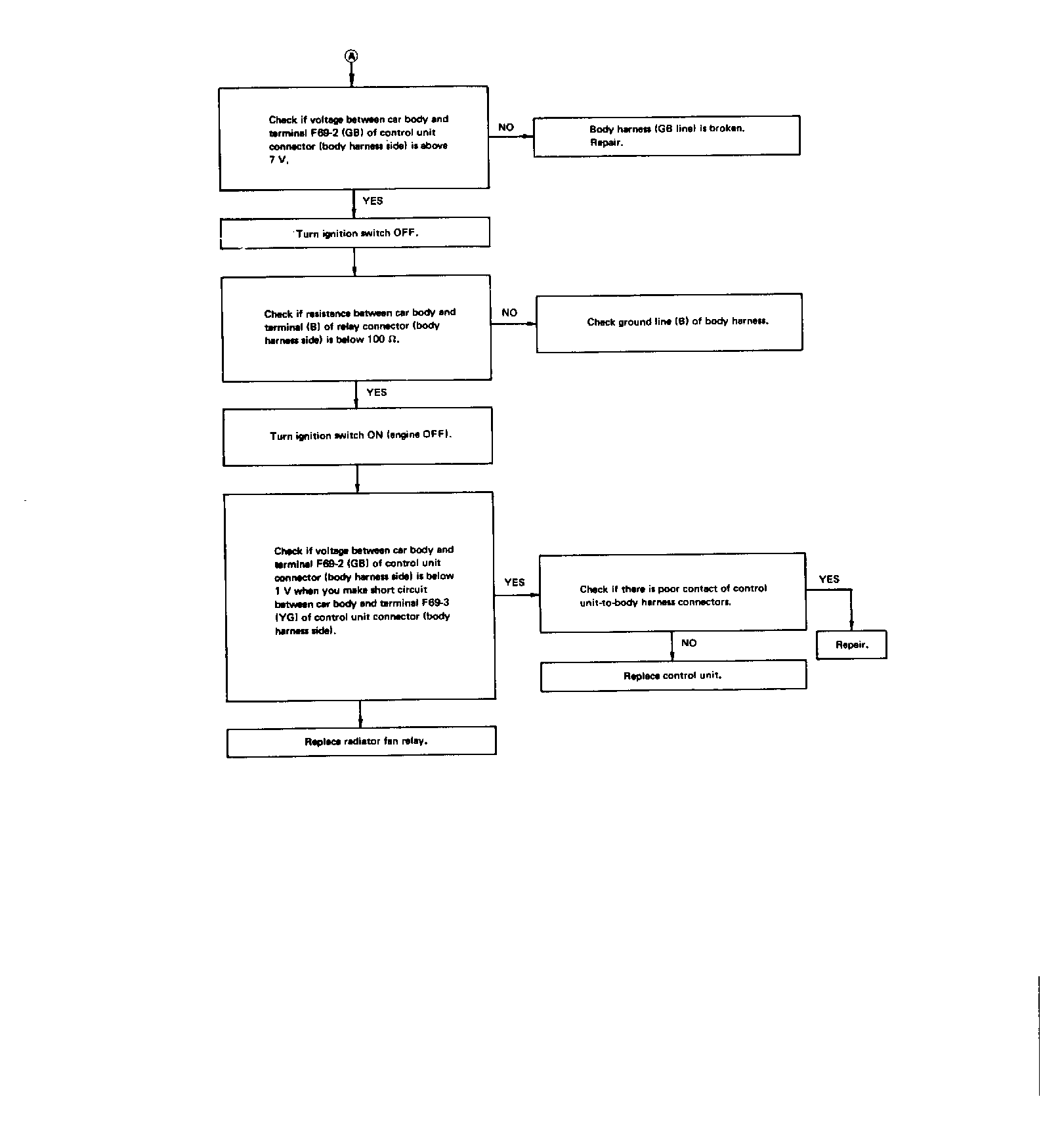

Fig 3: Flow Chart - Code 46: Radiator Fan Control System (2 of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
