Code 35: Canister Purge Control (CPC) Solenoid

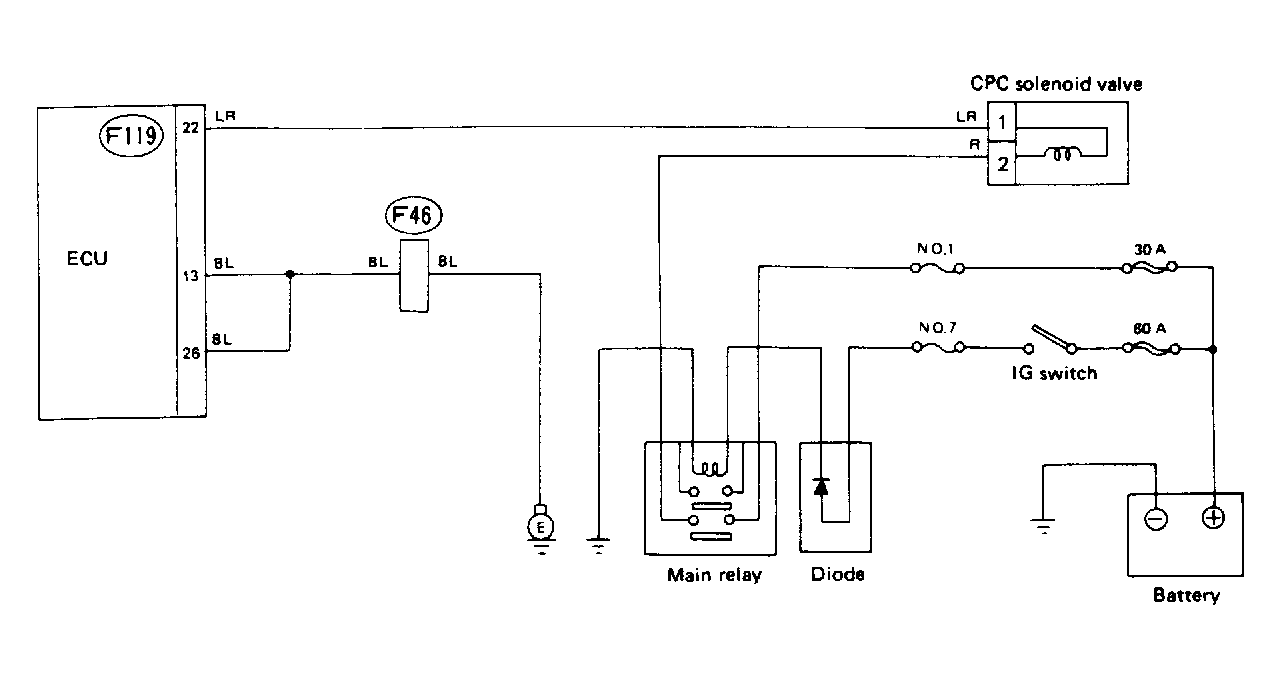

Fig 1: Schematic - Code 35, Canister Purge Control (CPC) Solenoid

G91J18340

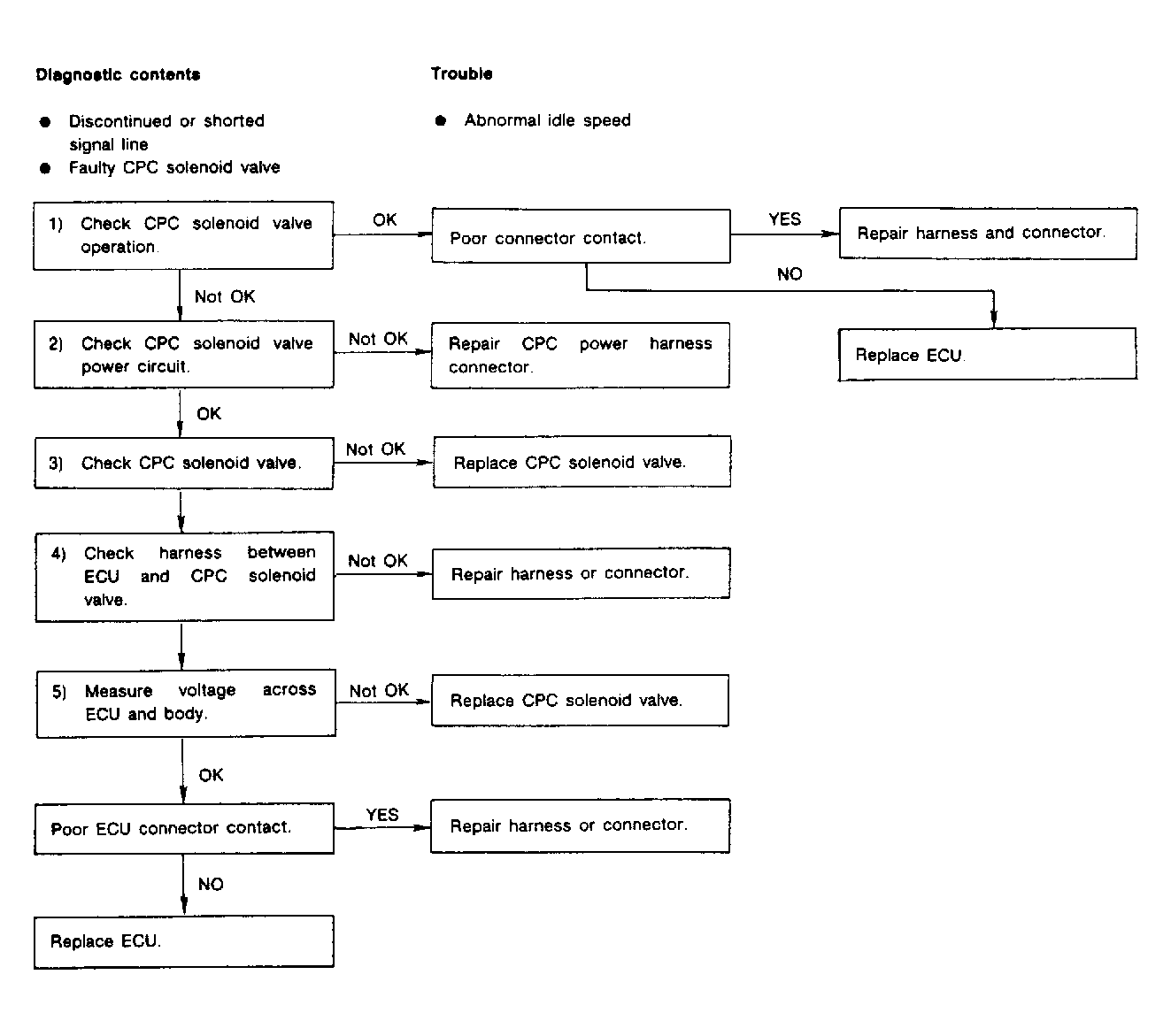

Fig 2: Flow Chart - Code 35, Canister Purge Control (CPC) Solenoid

G90J18779
