Home › Subaru › 1992 › Justy Base › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes - PFI › Diagnostic Code Chart › Code 36: IGNITOR Circuit

Code 36: IGNITOR Circuit

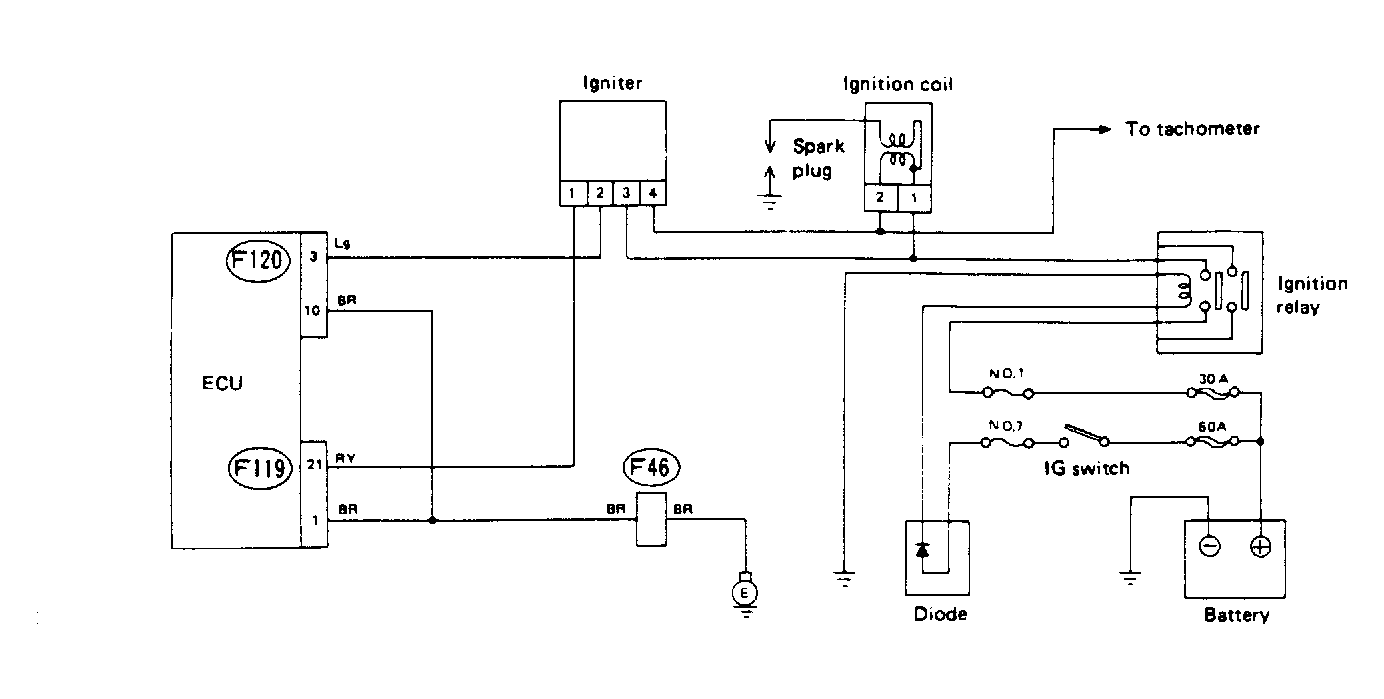

Fig 1: Schematic - Code 36, Ignitor Circuit
G91A18341

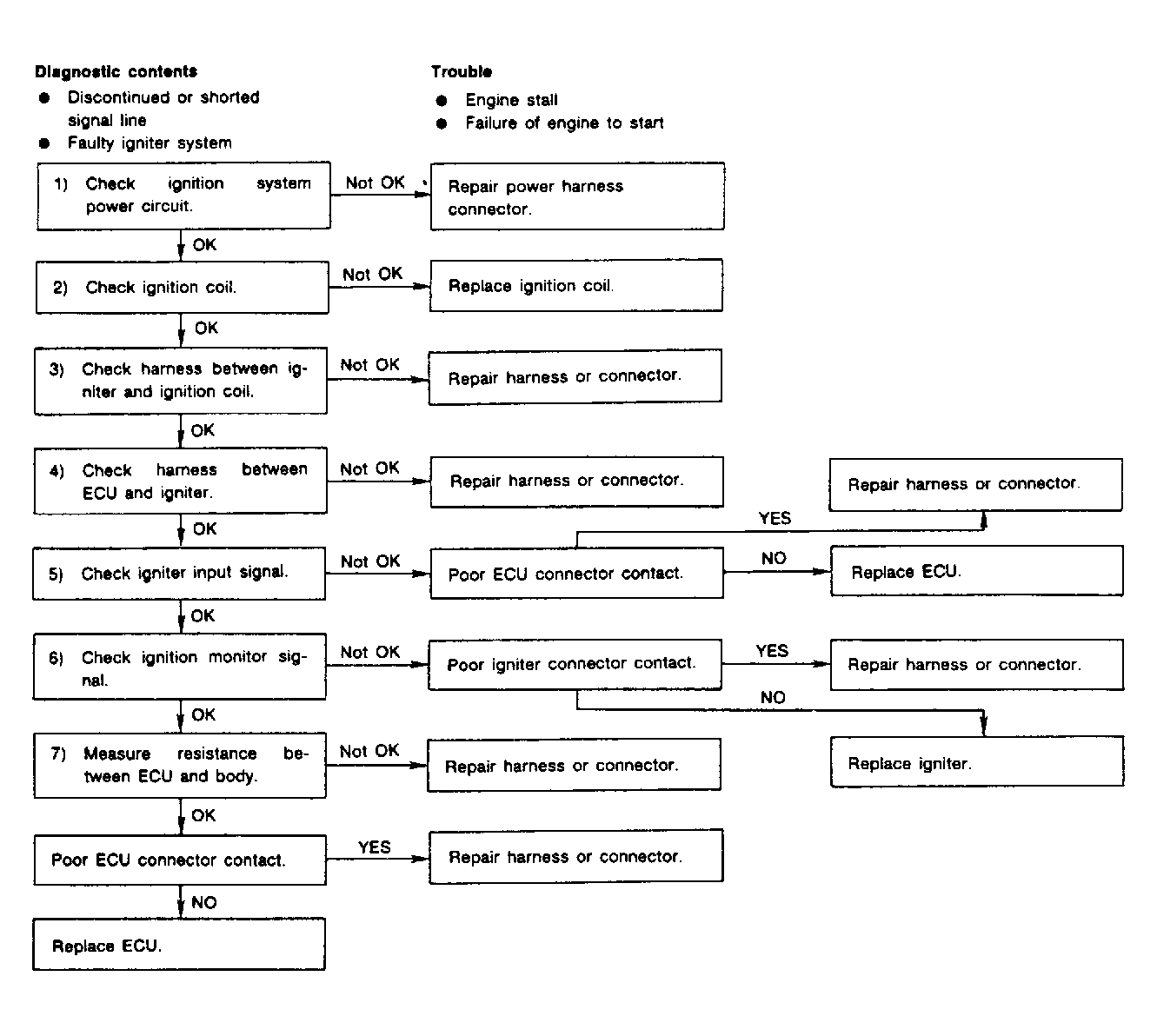

Fig 2: Flow Chart - Code 36, Ignitor Circuit
G90C18780
