Code 52: Clutch Switch (ECVT)

Fig 1: Schematic - Code 52, Clutch Switch (ECVT)

G91E18345

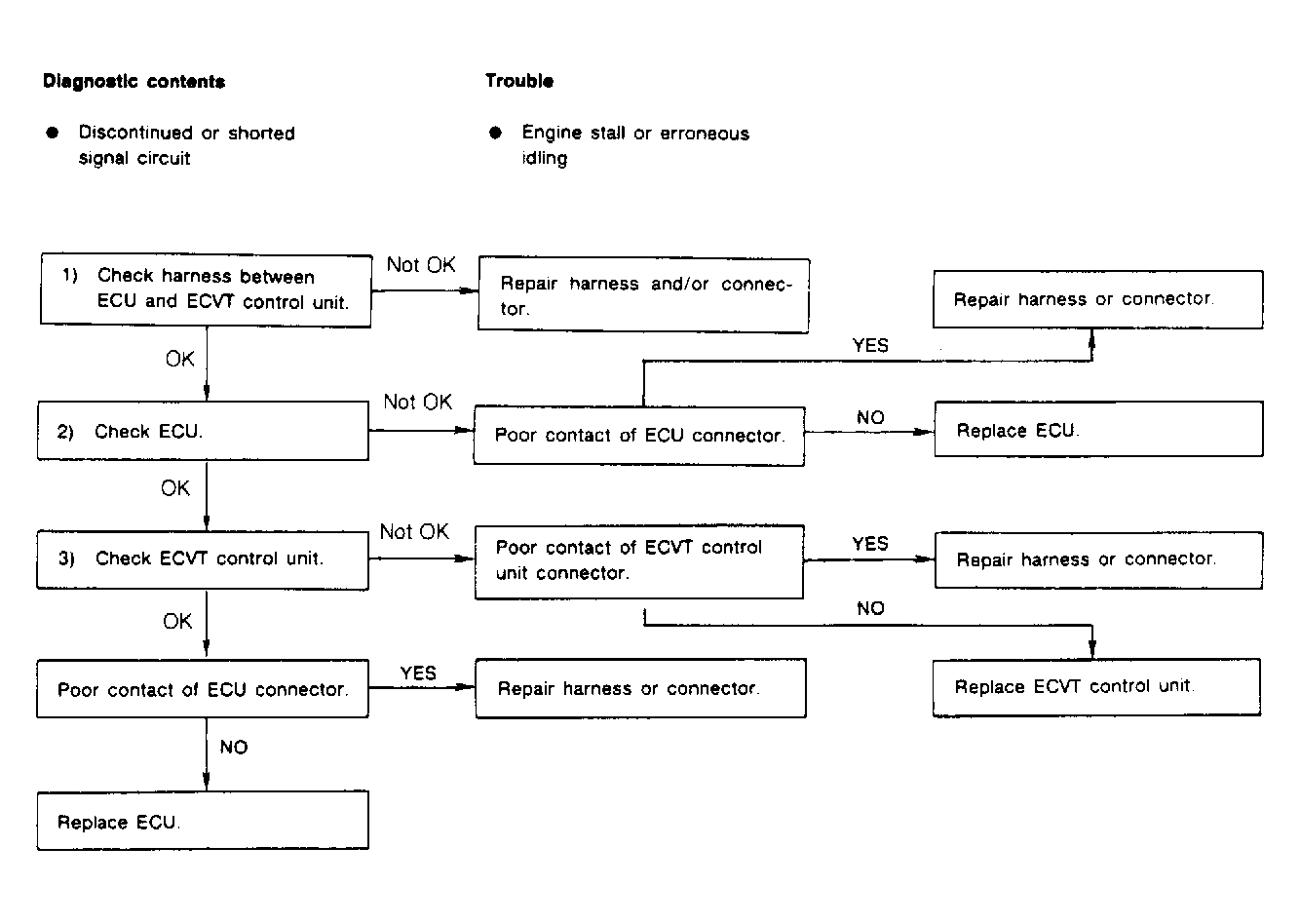

Fig 2: Flow Chart - Code 52, Clutch Switch (ECVT)

G90H18785
