Code 52: Clutch Switch (Fwd Man. Trans.)

Fig 1: Schematic - Code 52, Clutch Switch (Man. Trans.)

G91D18344

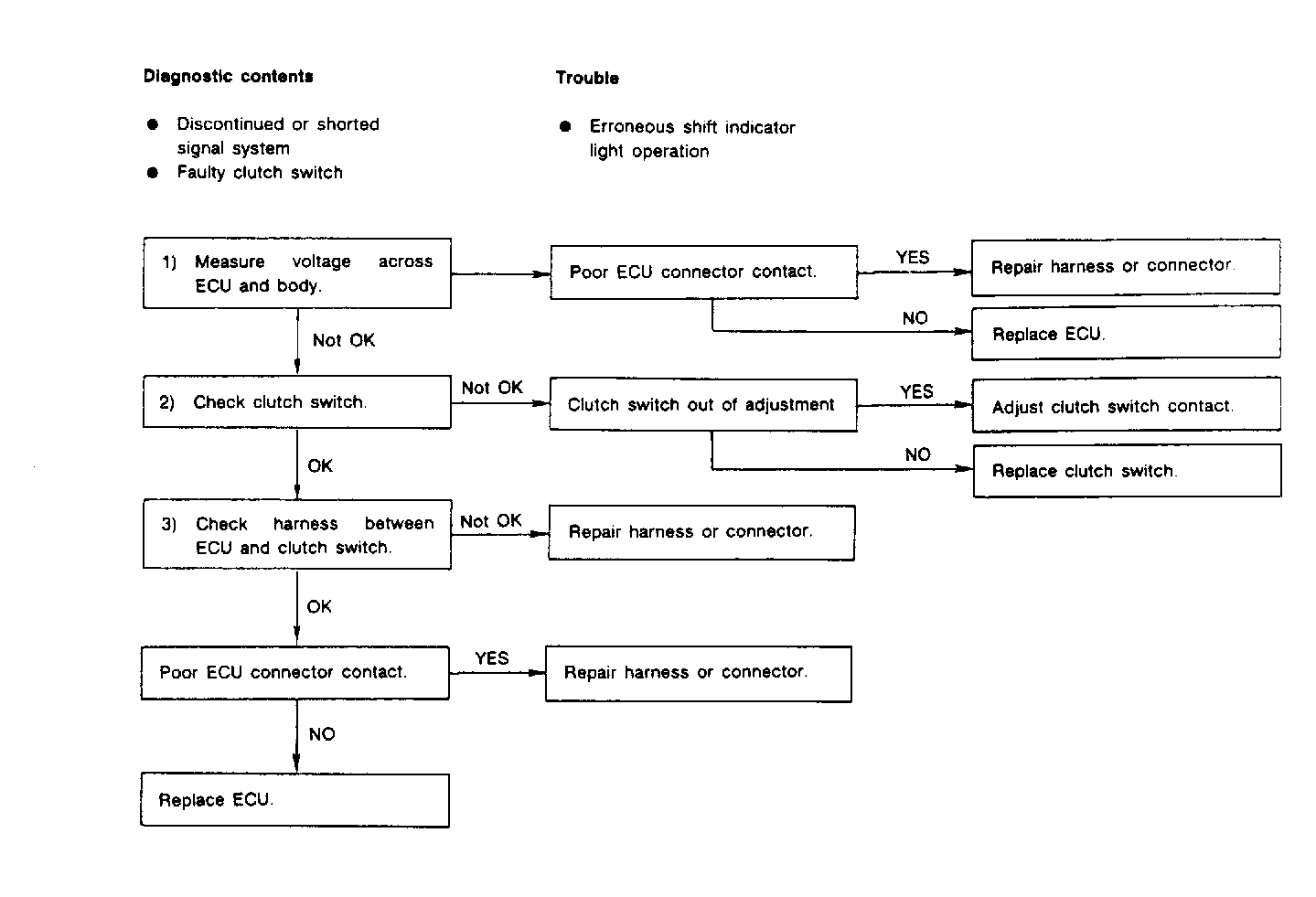

Fig 2: Flow Chart - Code 52, Clutch Switch (Man. Trans.)

G90G18784
