Engine Controls - Tests W/Codes - PFI
›
Diagnostic Code Chart
›
Code 63: Blower Fan Switch
Code 63: Blower Fan Switch
Fig 1: Schematic - Code 63, Blower Fan Switch

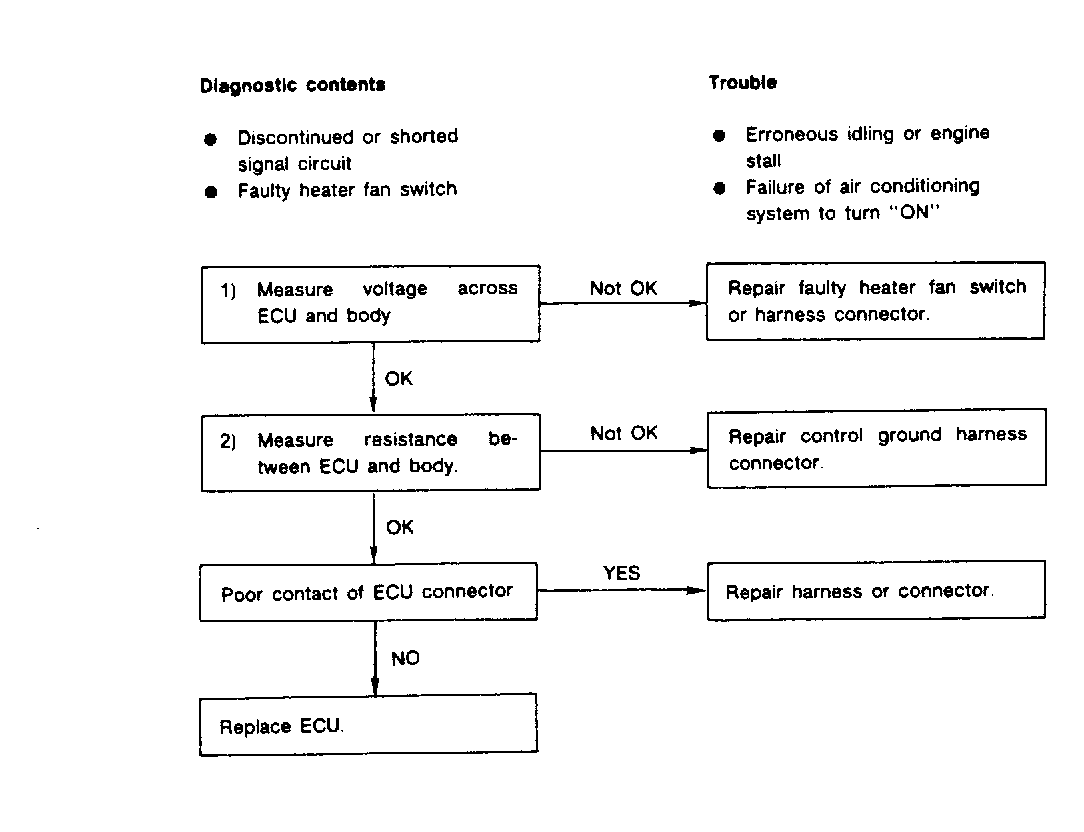

Fig 2: Flow Chart - Code 63, Blower Fan Switch
