Diagnostic Code Chart
›
D-Check Mode
D-Check Mode

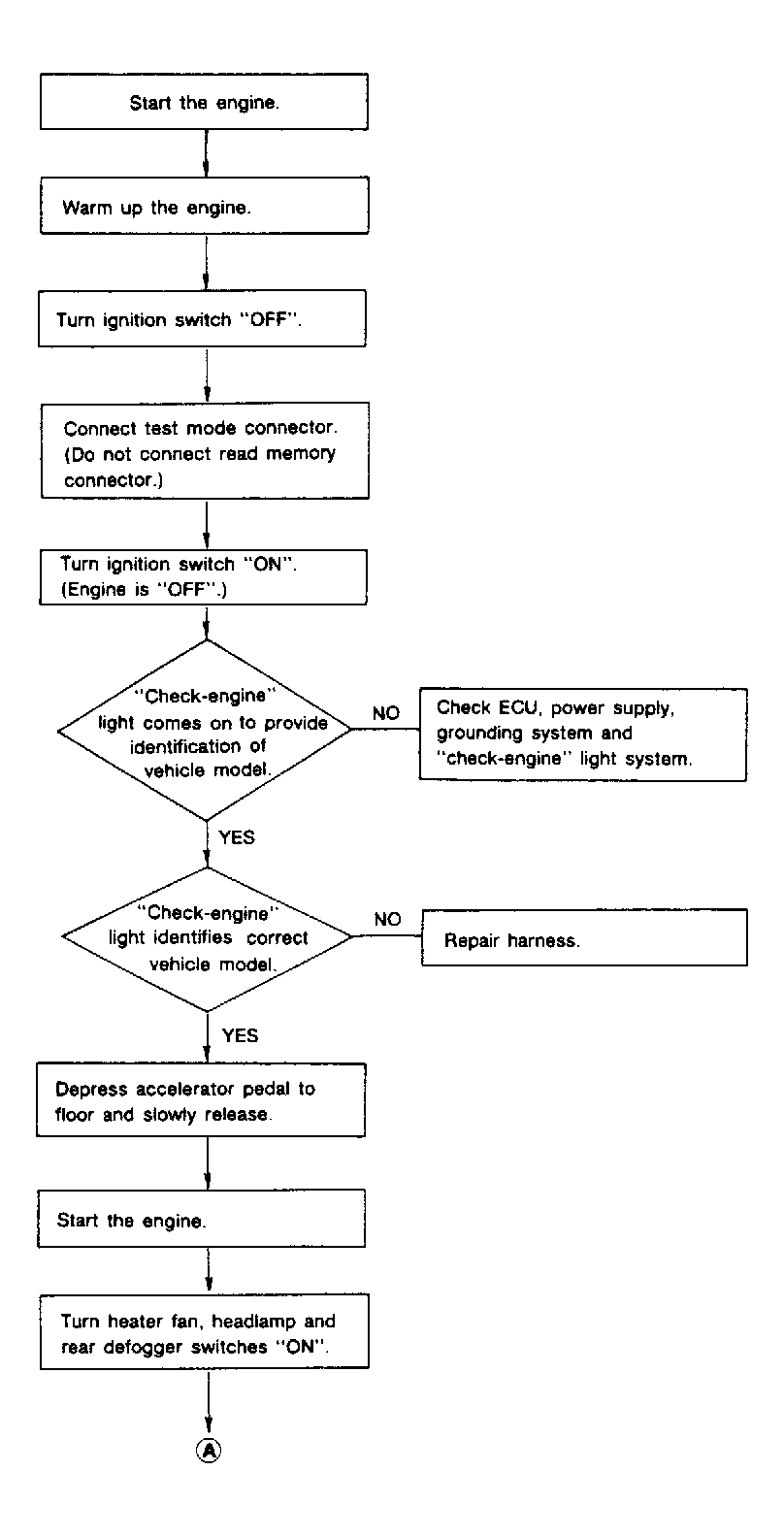

Fig 1: Flow Chart - D-Check Mode (1 of 2)
Fig 2: Flow Chart - D-Check Mode (2 of 2)
