Wiring Diagrams

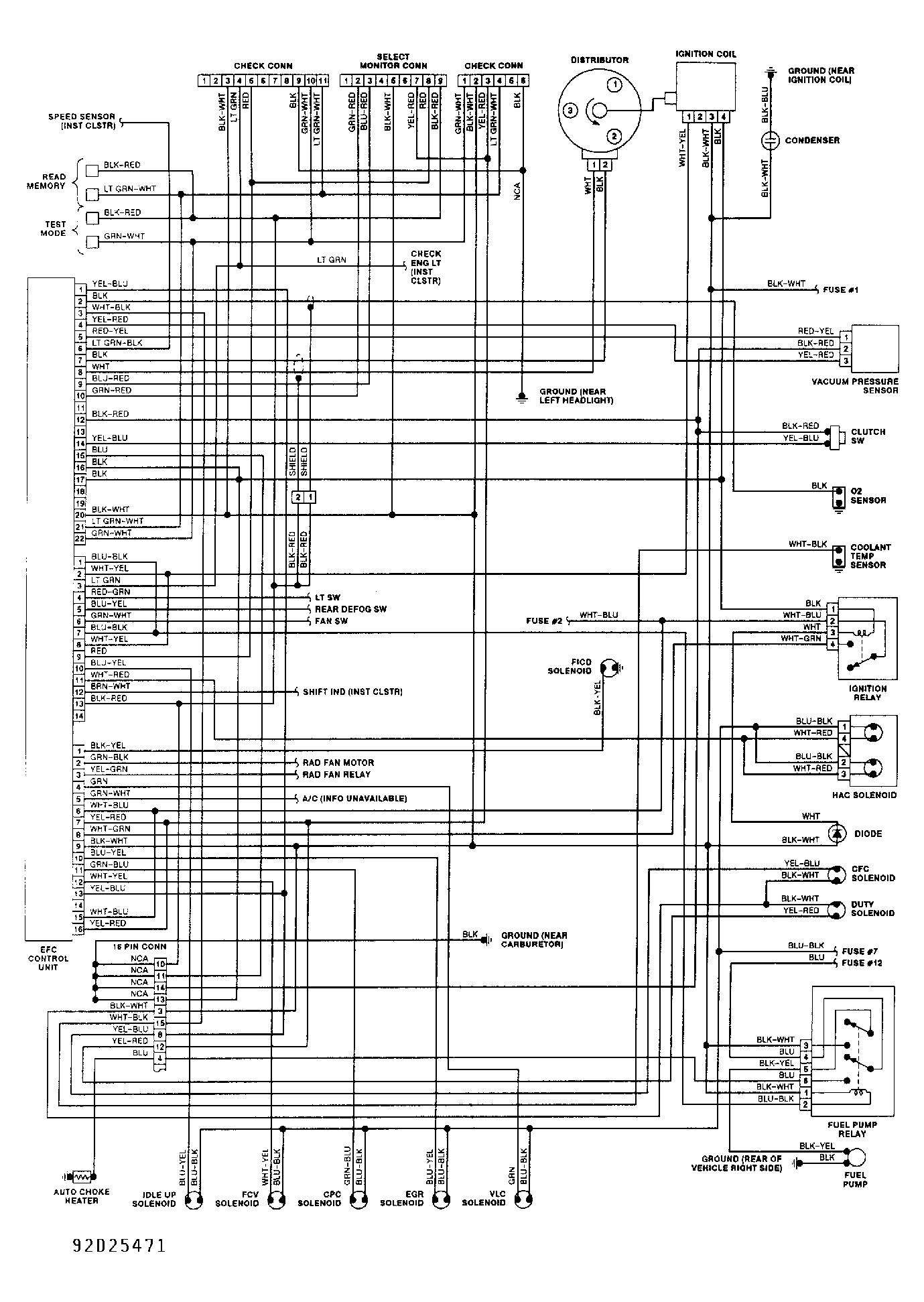

Fig 1: Wiring Diagram (Justy 1.2L Carbureted)

G92D25471

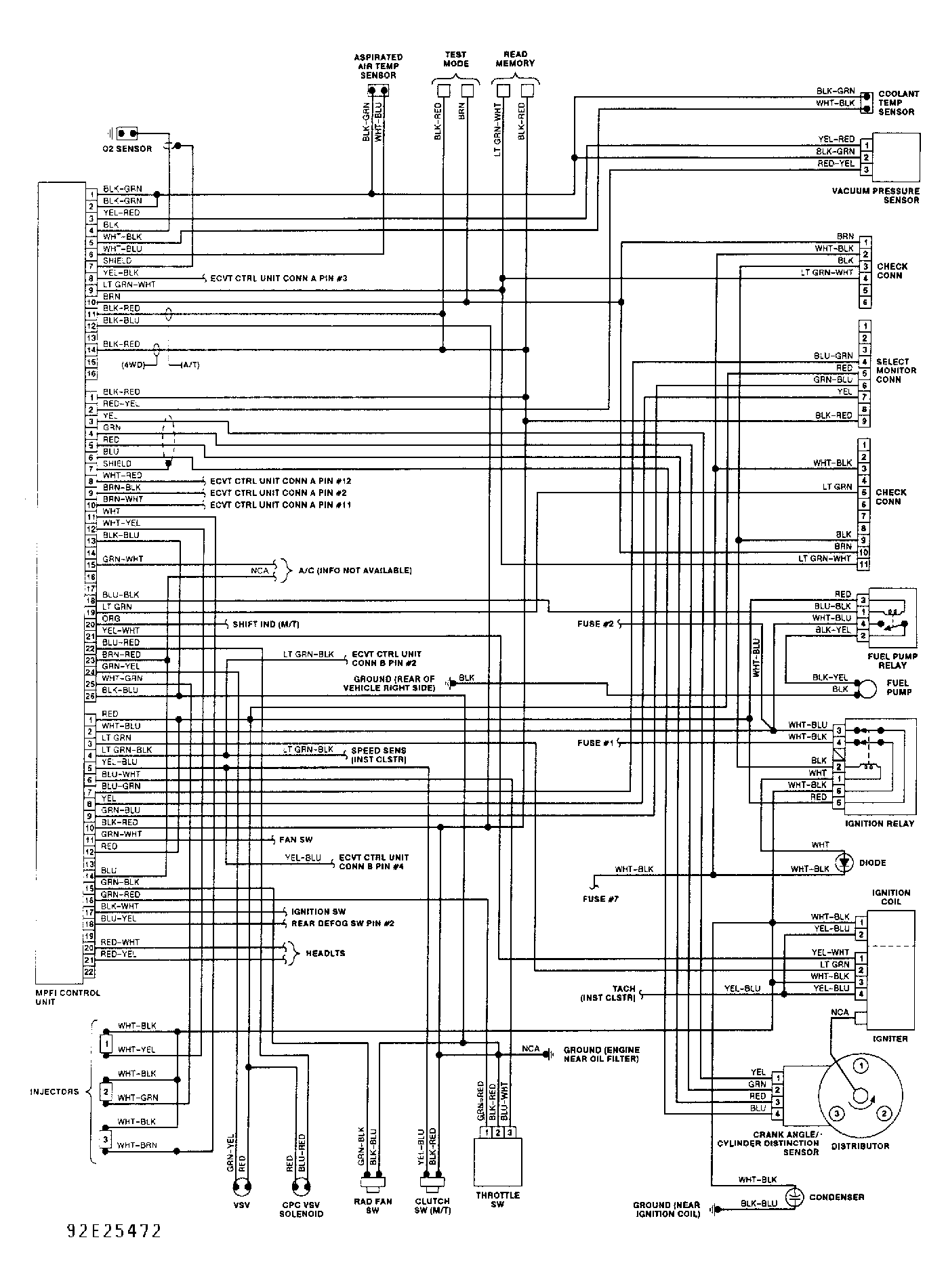

Fig 2: Wiring Diagram (Justy 1.2L PFI)

G92E25472

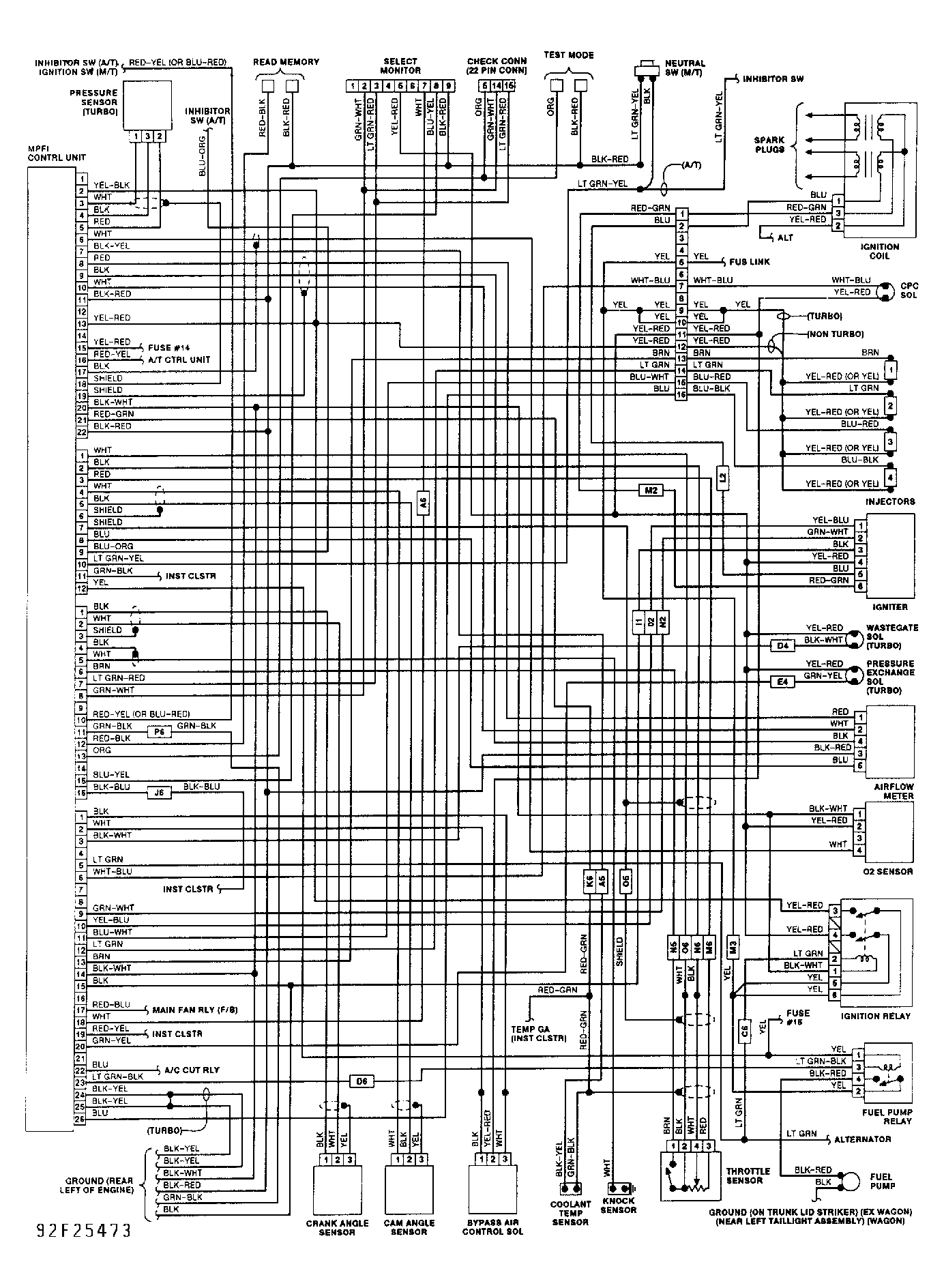

Fig 3: Wiring Diagram (Legacy 2.2L PFI & Turbo)

G92F25473

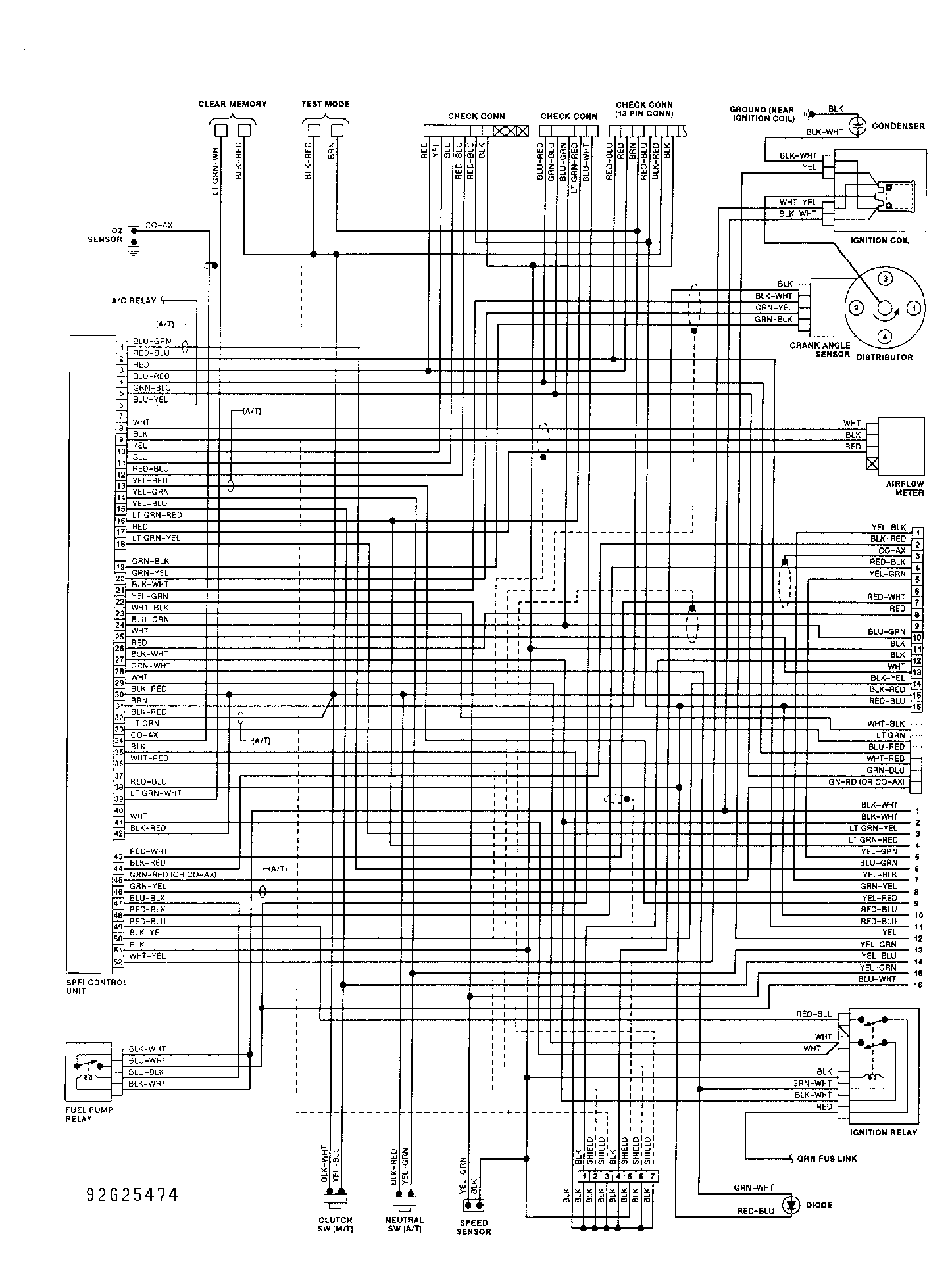

Fig 4: Wiring Diagram (Loyale 1.8L TBI - 1 of 2)

G92G25474

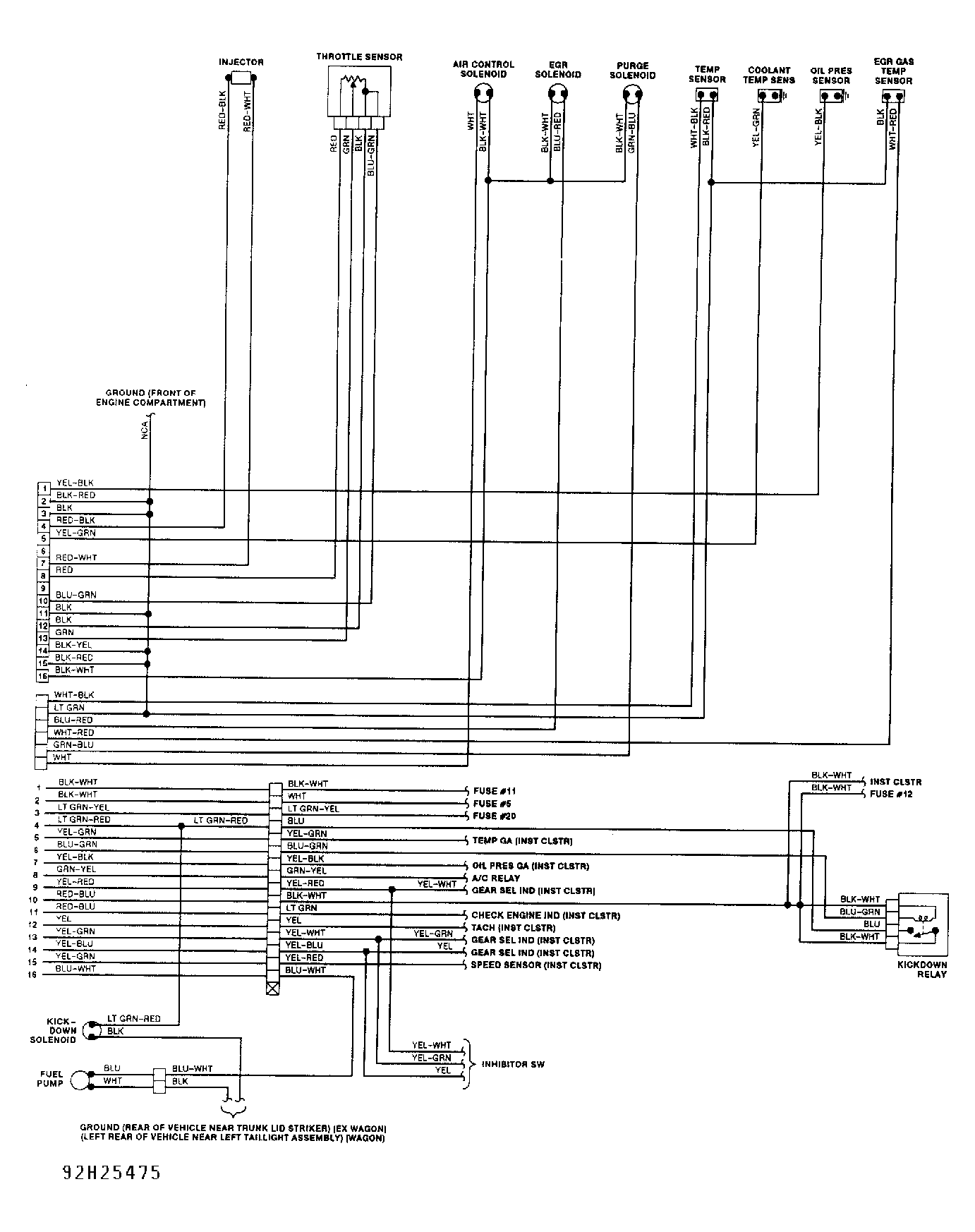

Fig 5: Wiring Diagram (Loyale 1.8L TBI - 2 of 2)

G92H25475

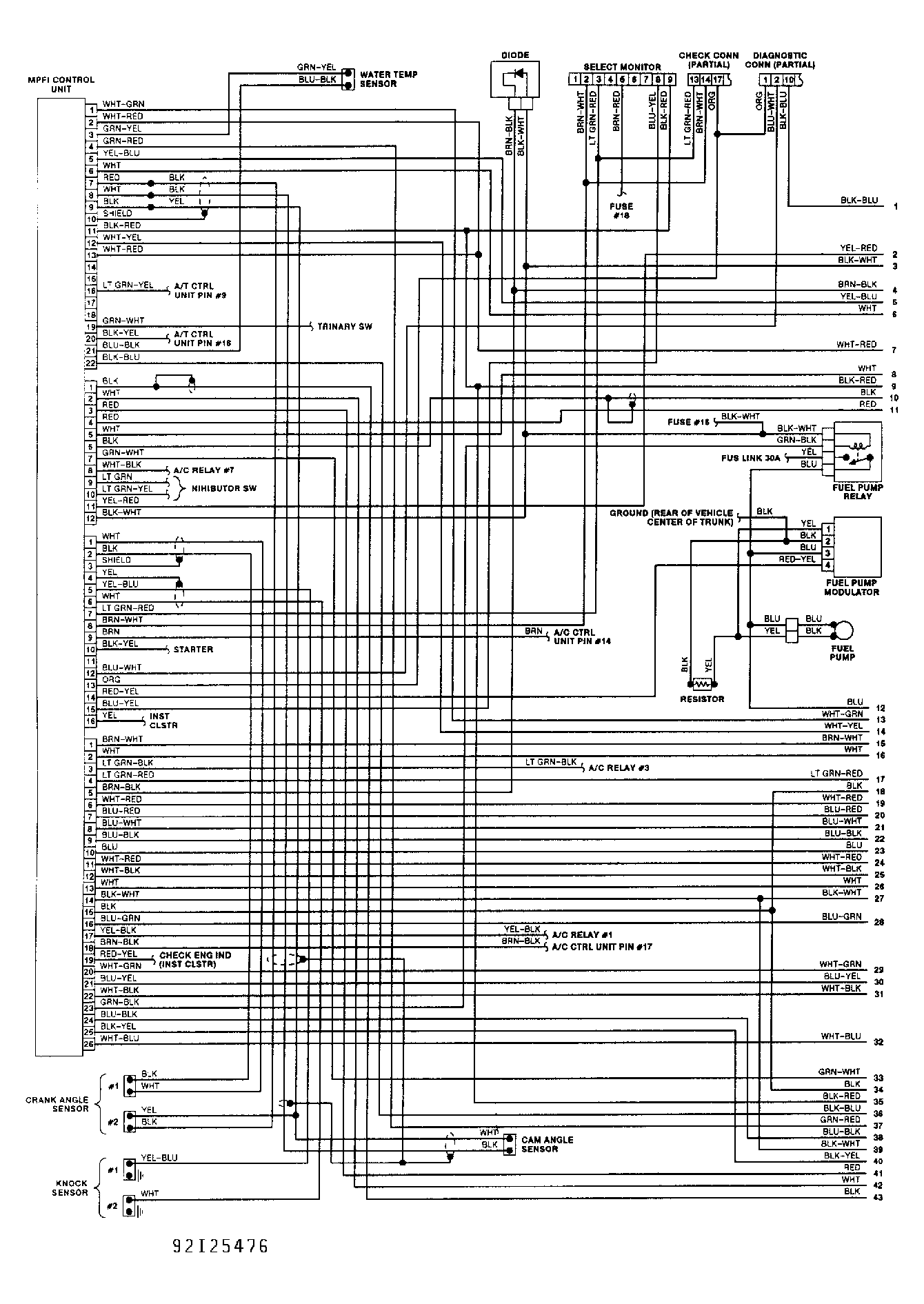

Fig 6: Wiring Diagram (SVX 3.3L PFI - 1 of 2)

G92I25476

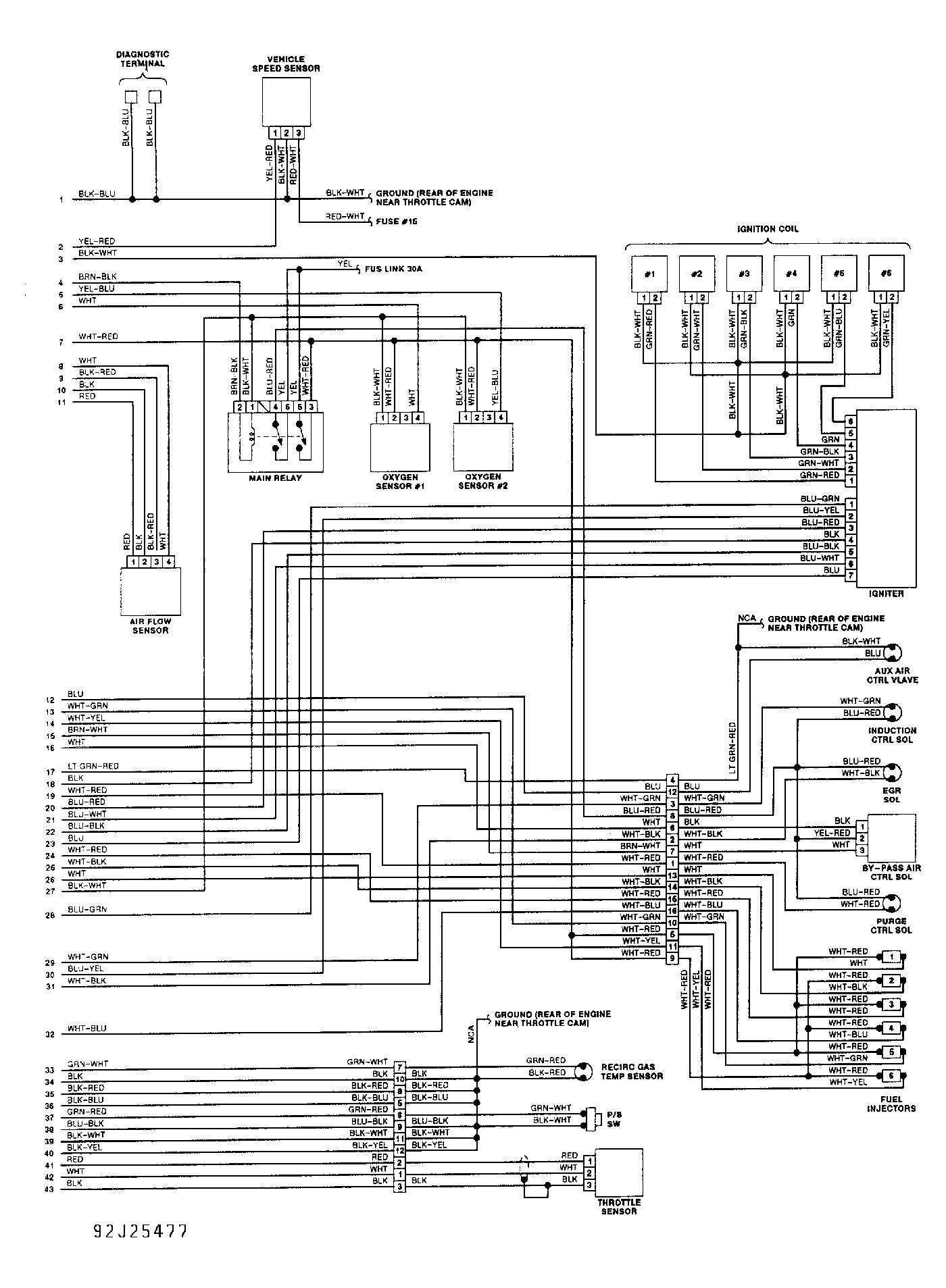

Fig 7: Wiring Diagram (SVX 3.3L PFI - 2 of 2)

G92J25477
