Code 52: Parking Brake Switch (Auto. Trans.)

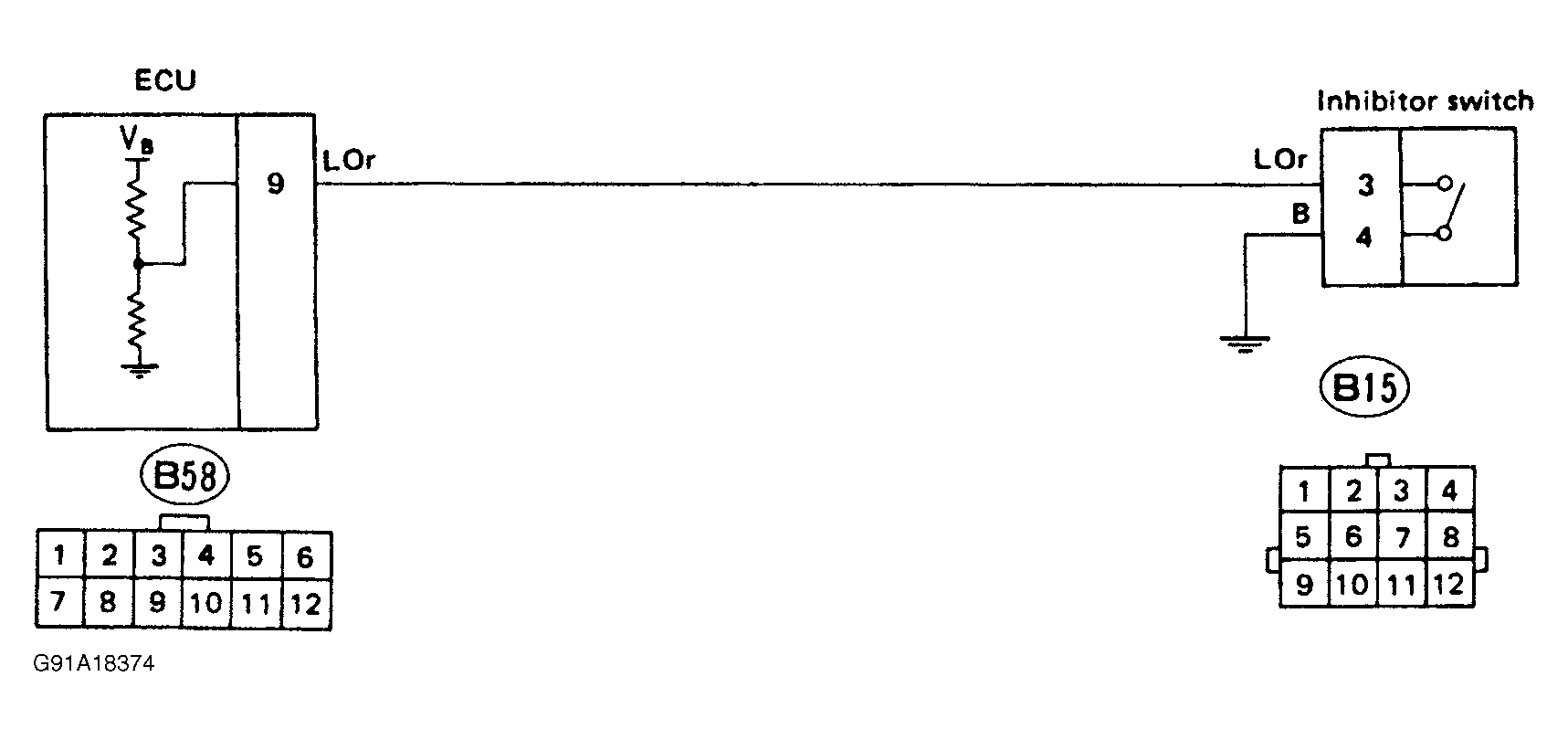

Fig 1: Schematic - Code 52, Parking Brake Switch (Auto. Trans.)

G91A18374

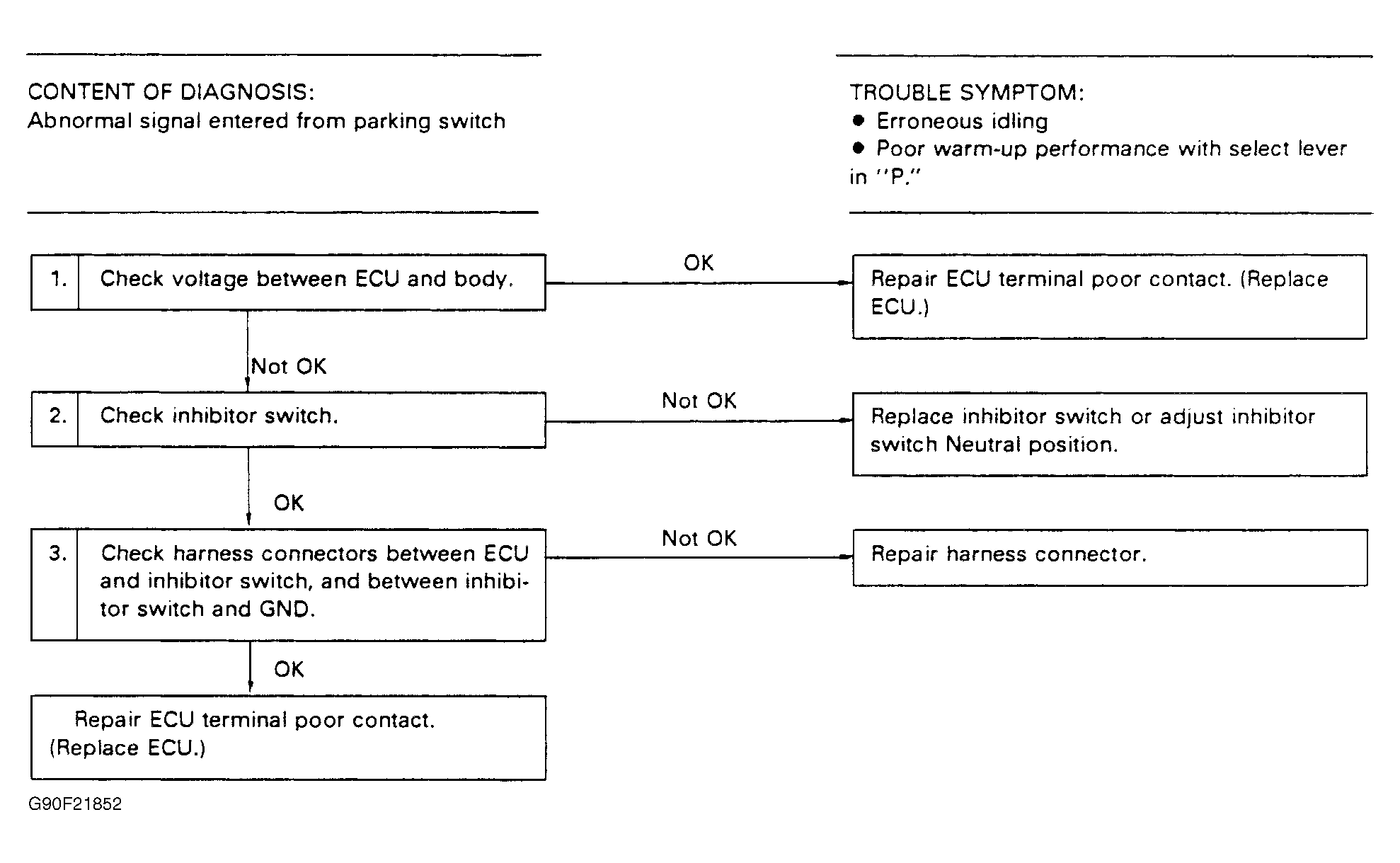

Fig 2: Flow Chart - Code 52, Parking Brake Switch (Auto. Trans.)

G90F21852
