Codes 14, 15, 16 & 17: Fuel Injectors
Codes 14, 15, 16 & 17: Fuel Injectors

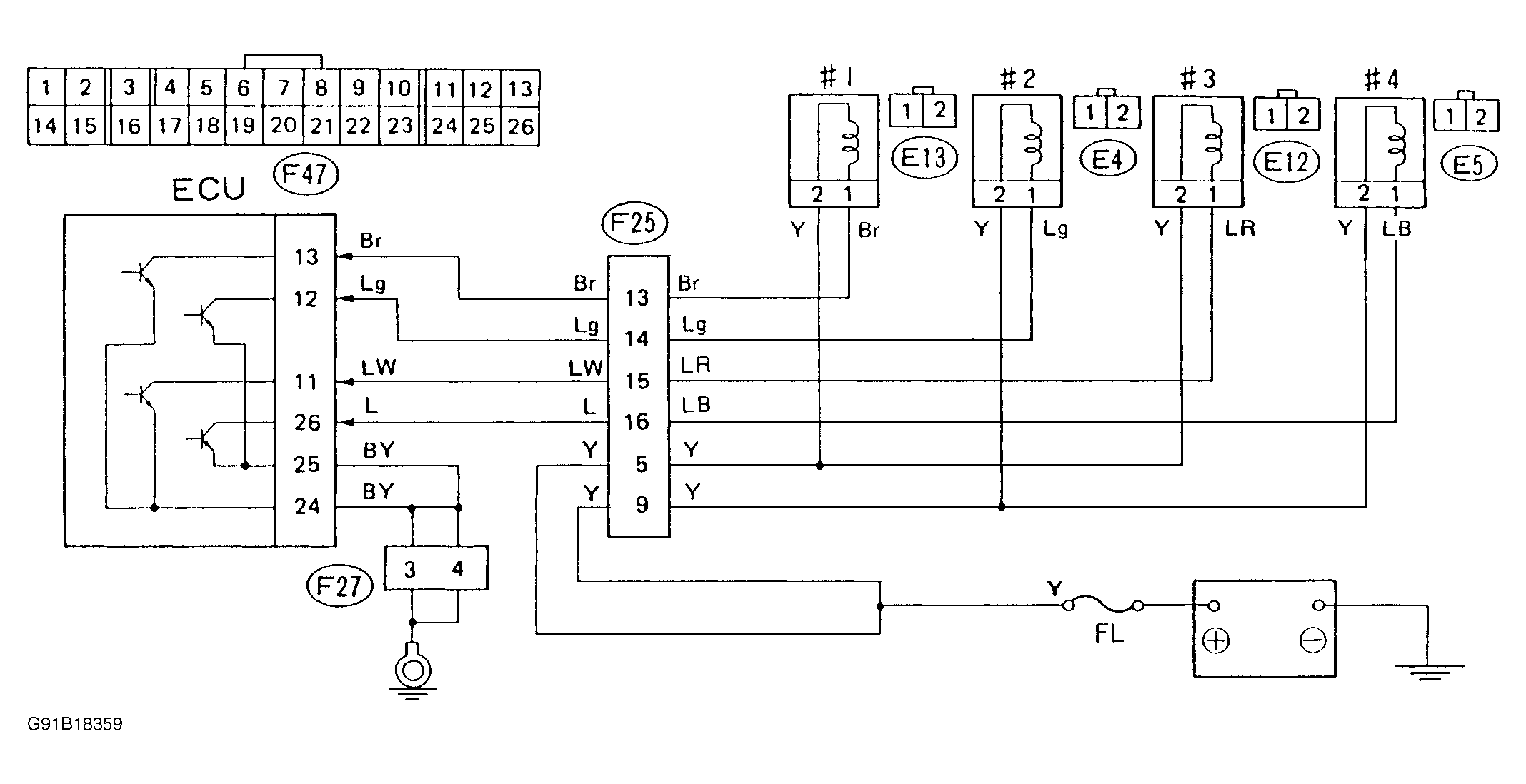

Fig 1: Schematic - Codes 14, 15, 16 & 17, Fuel Injectors

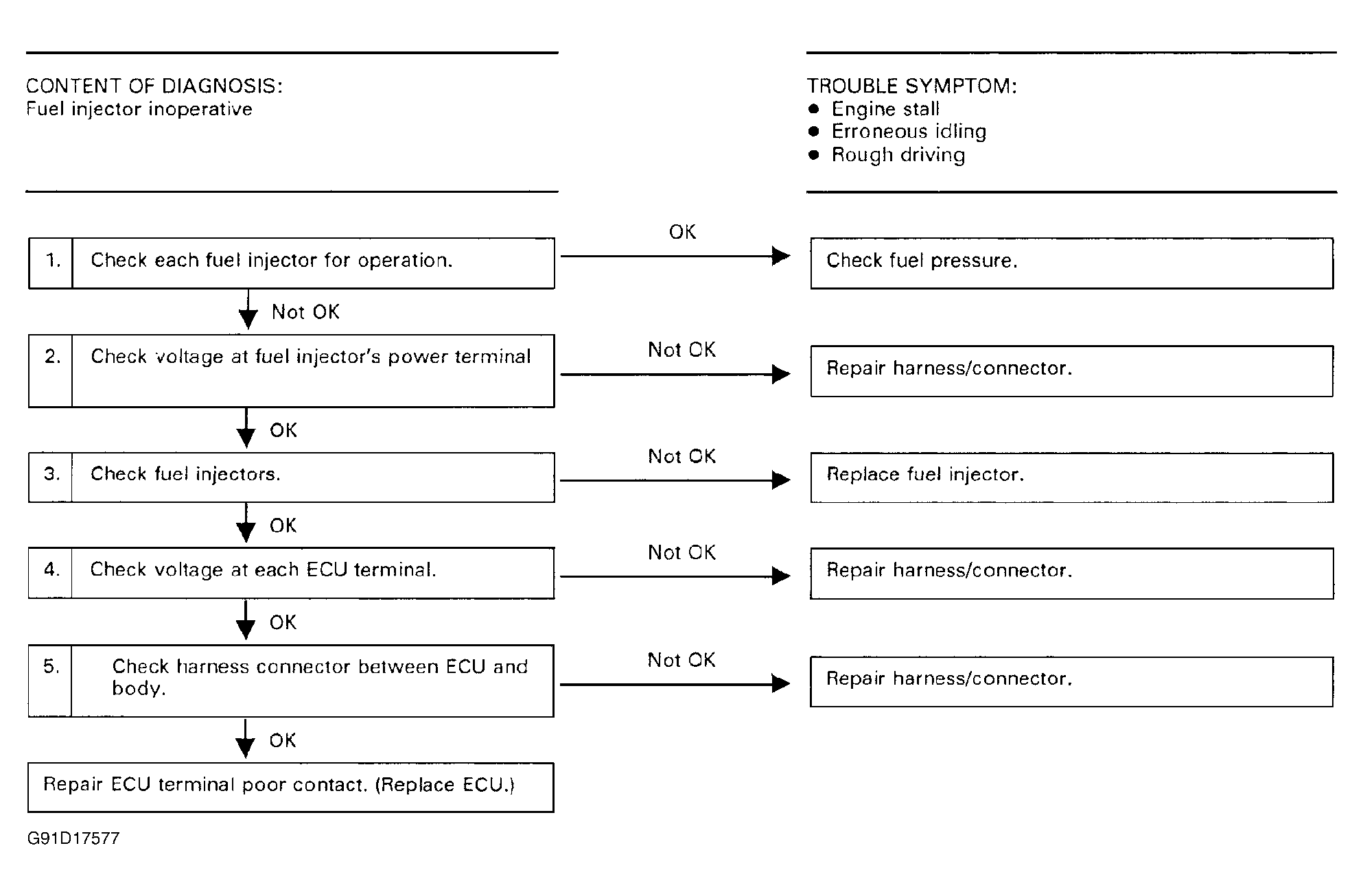

Fig 2: Flow Chart - Codes 14, 15, 16 & 17, Fuel Injectors
