Code 24: By-Pass Air Control Solenoid Valve

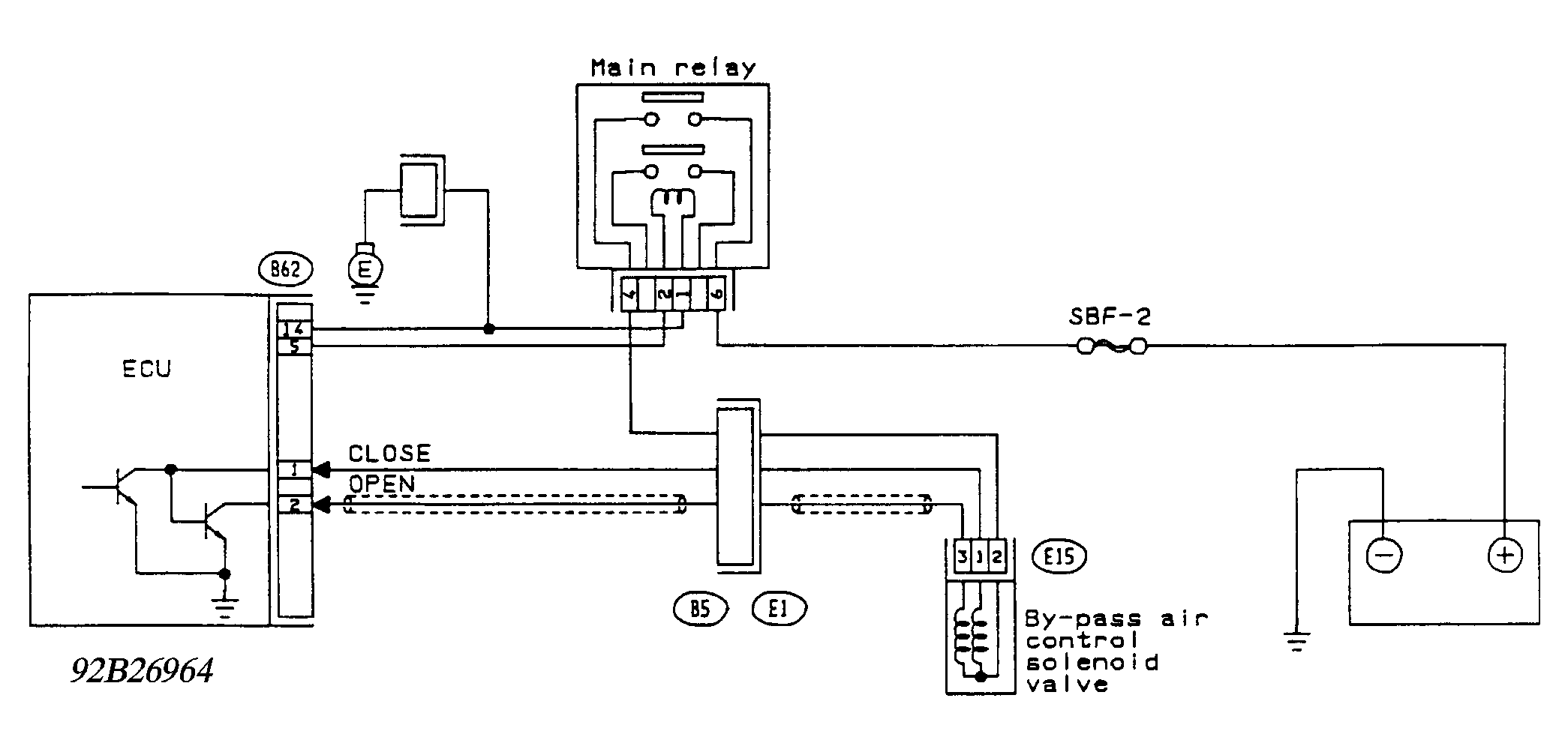

Fig 1: Schematic - Code 24, By-Pass Air Control Solenoid Valve

G92B26964

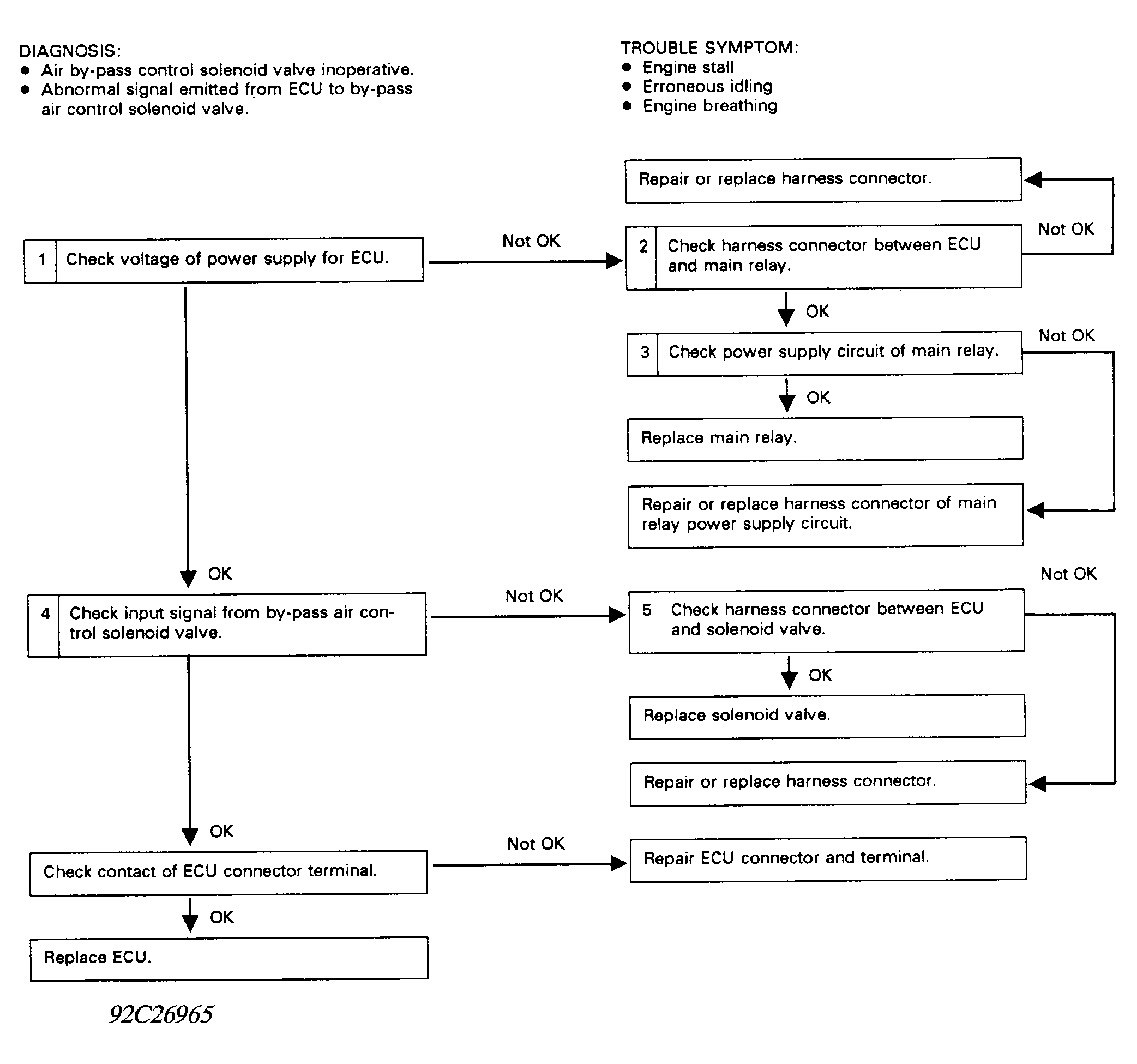

Fig 2: Flow Chart - Code 24, By-Pass Air Control Solenoid Valve

G92C26965
