Component Locations

Refer to "F" in the following illustrations, seeFig 1 and Fig 2 .

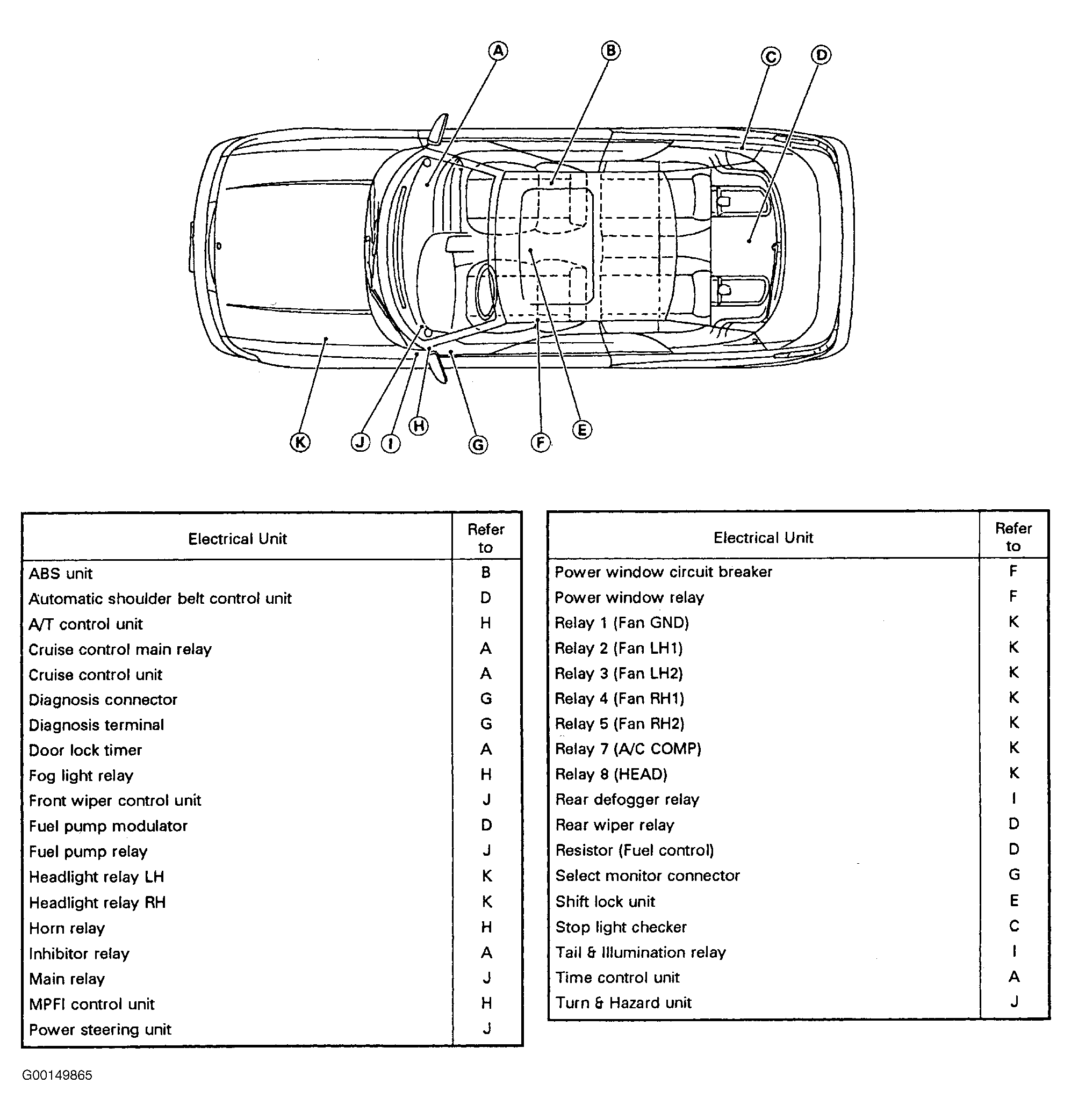

Fig 1: Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

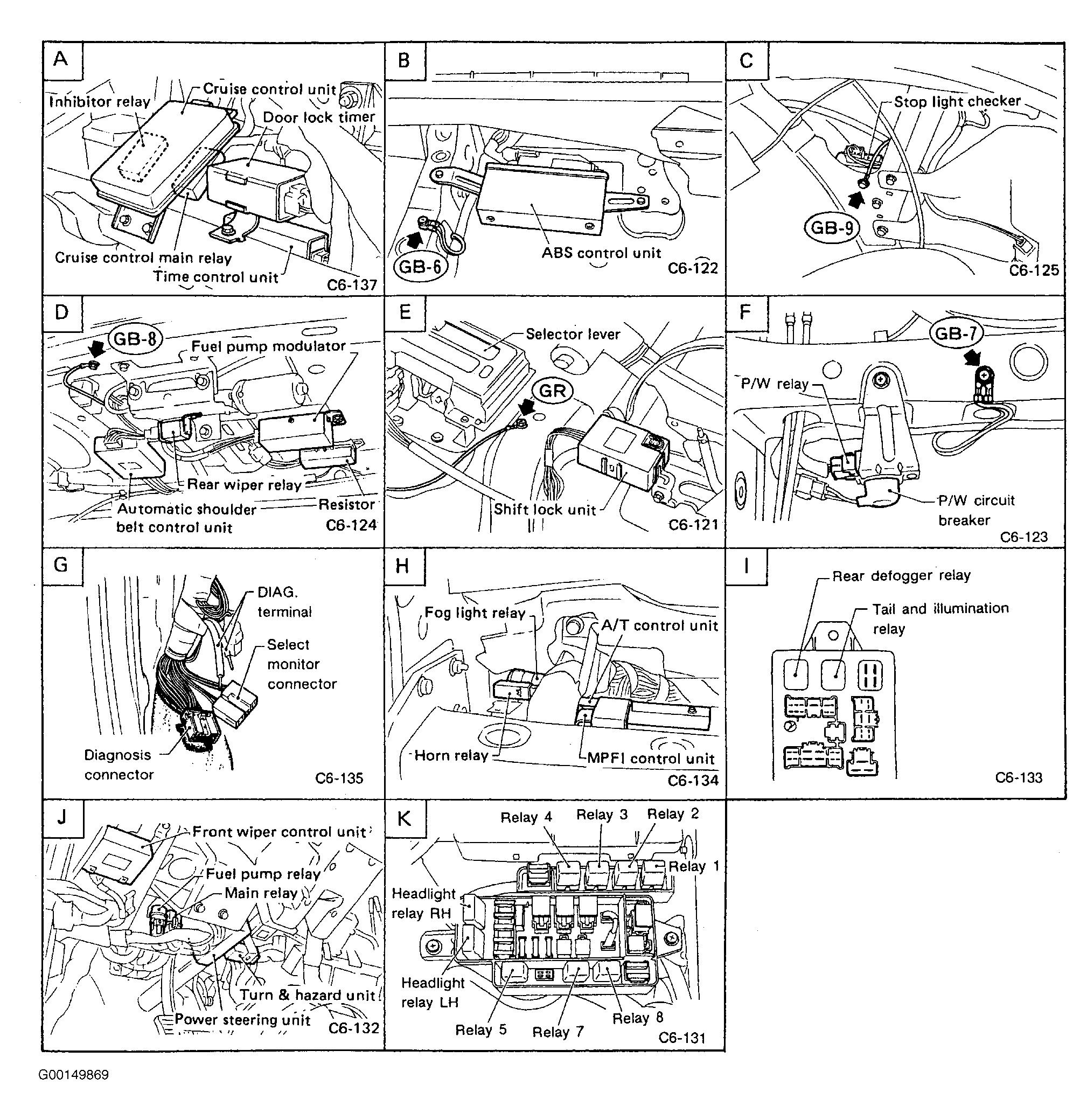

Fig 2: Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
