Fuel Pump Circuit Tests

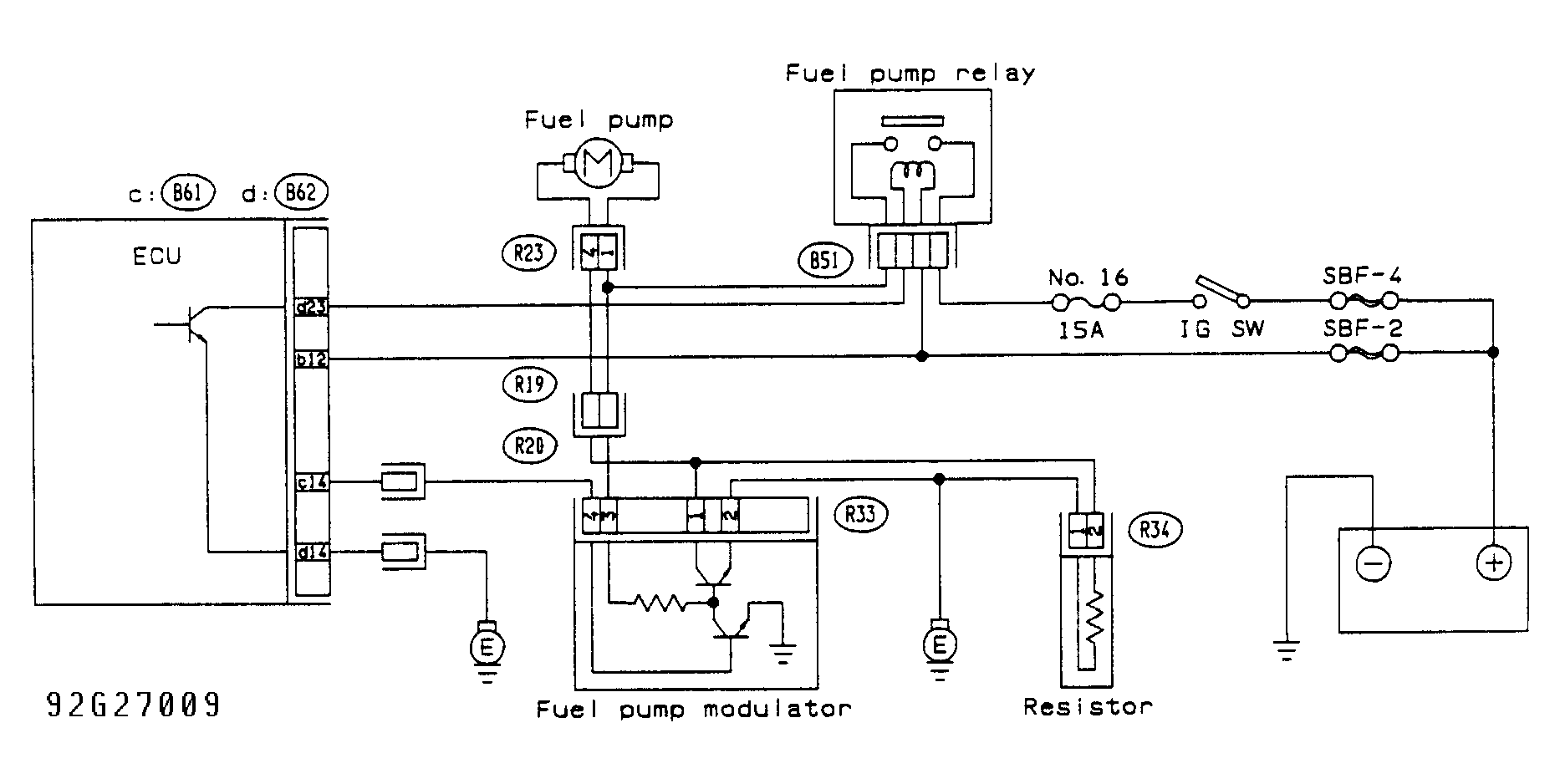

Fig 1: Fuel Pump Circuit Test, Schematic
G92G27009Courtesy of SUBARU OF AMERICA, INC.

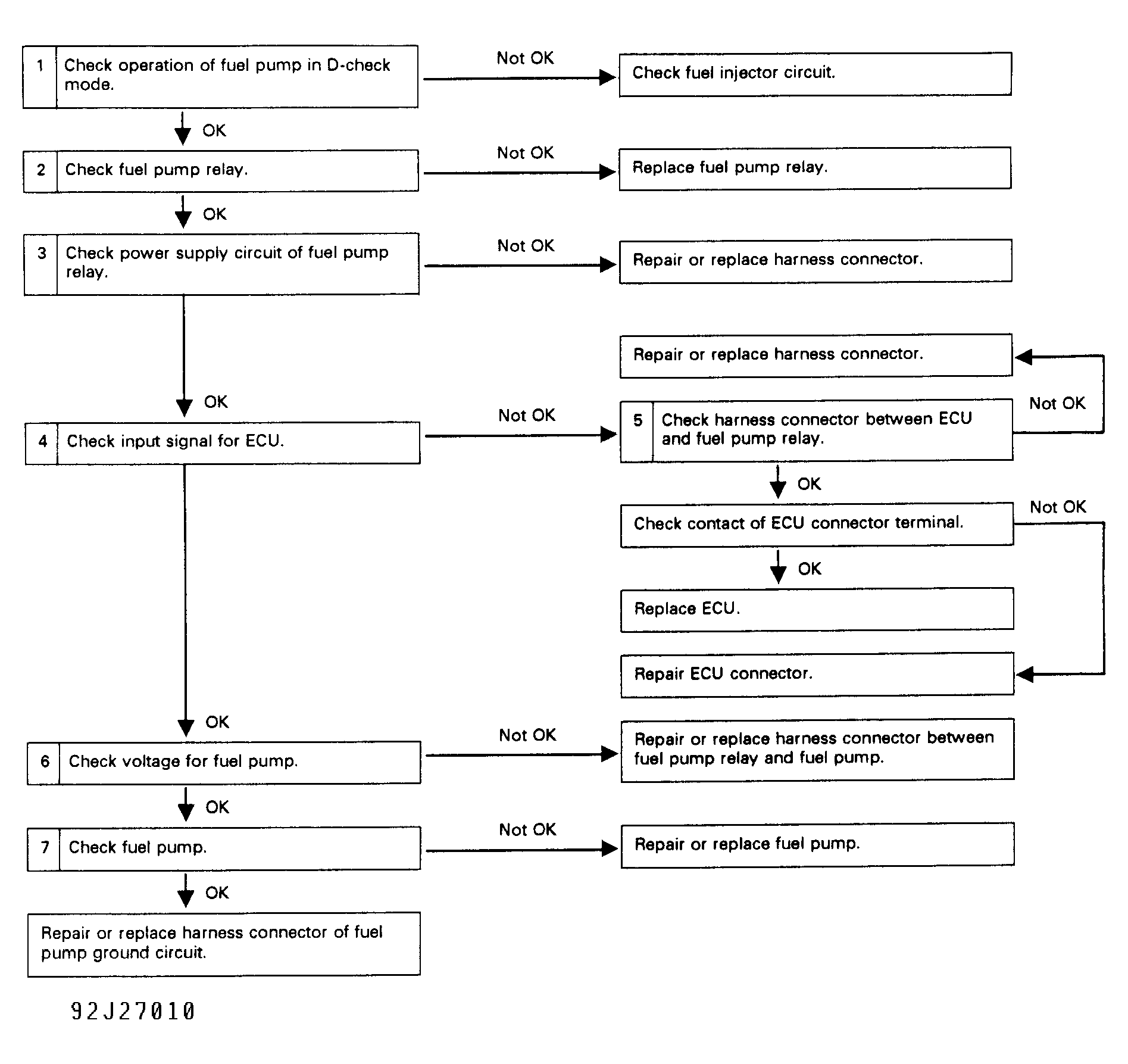

Fig 2: Fuel Pump Circuit Test, Flow Chart
G92J27010Courtesy of SUBARU OF AMERICA, INC.
