Ignition Control System Tests

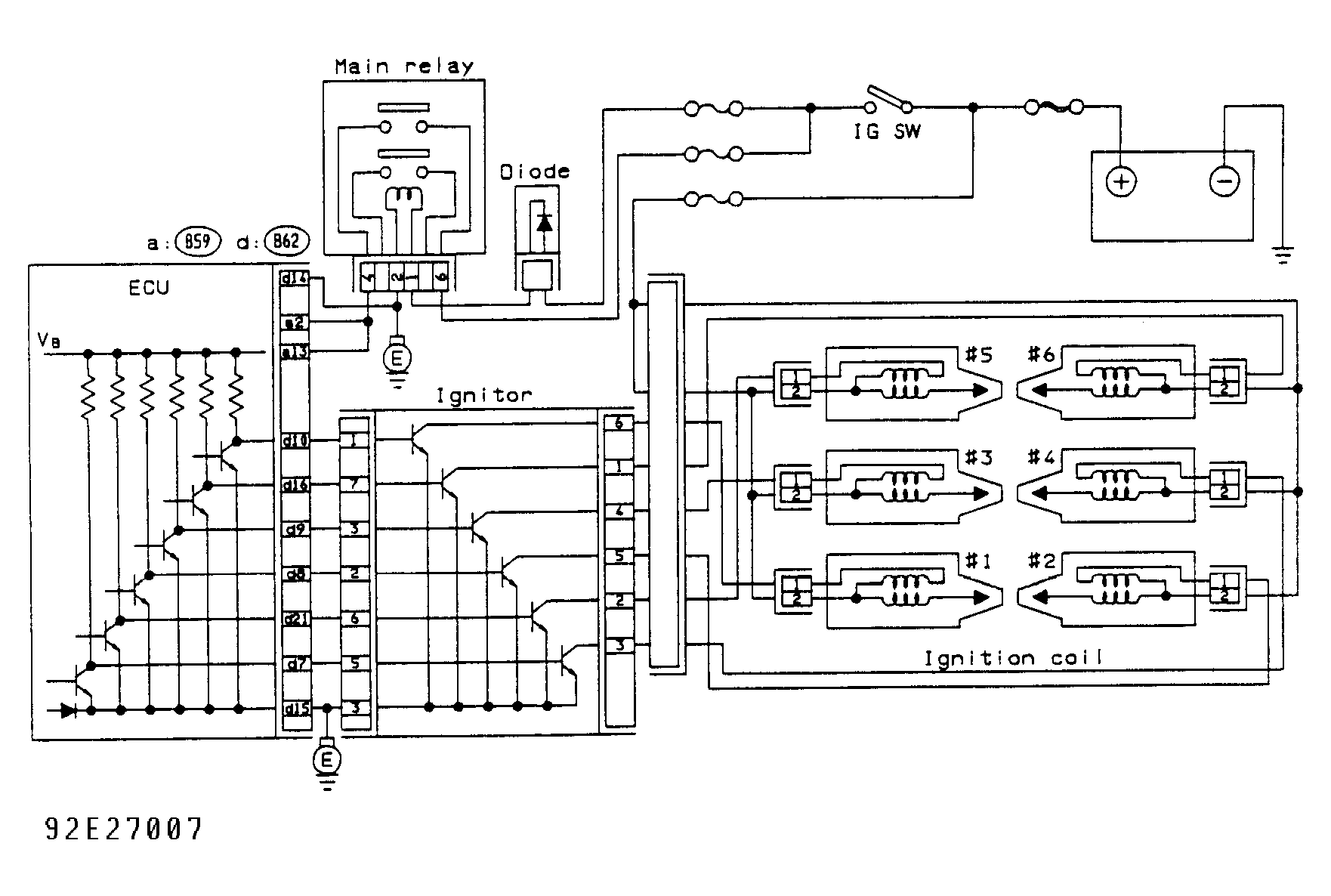

Fig 1: Ignition Control System Test, Schematic

Courtesy of SUBARU OF AMERICA, INC.

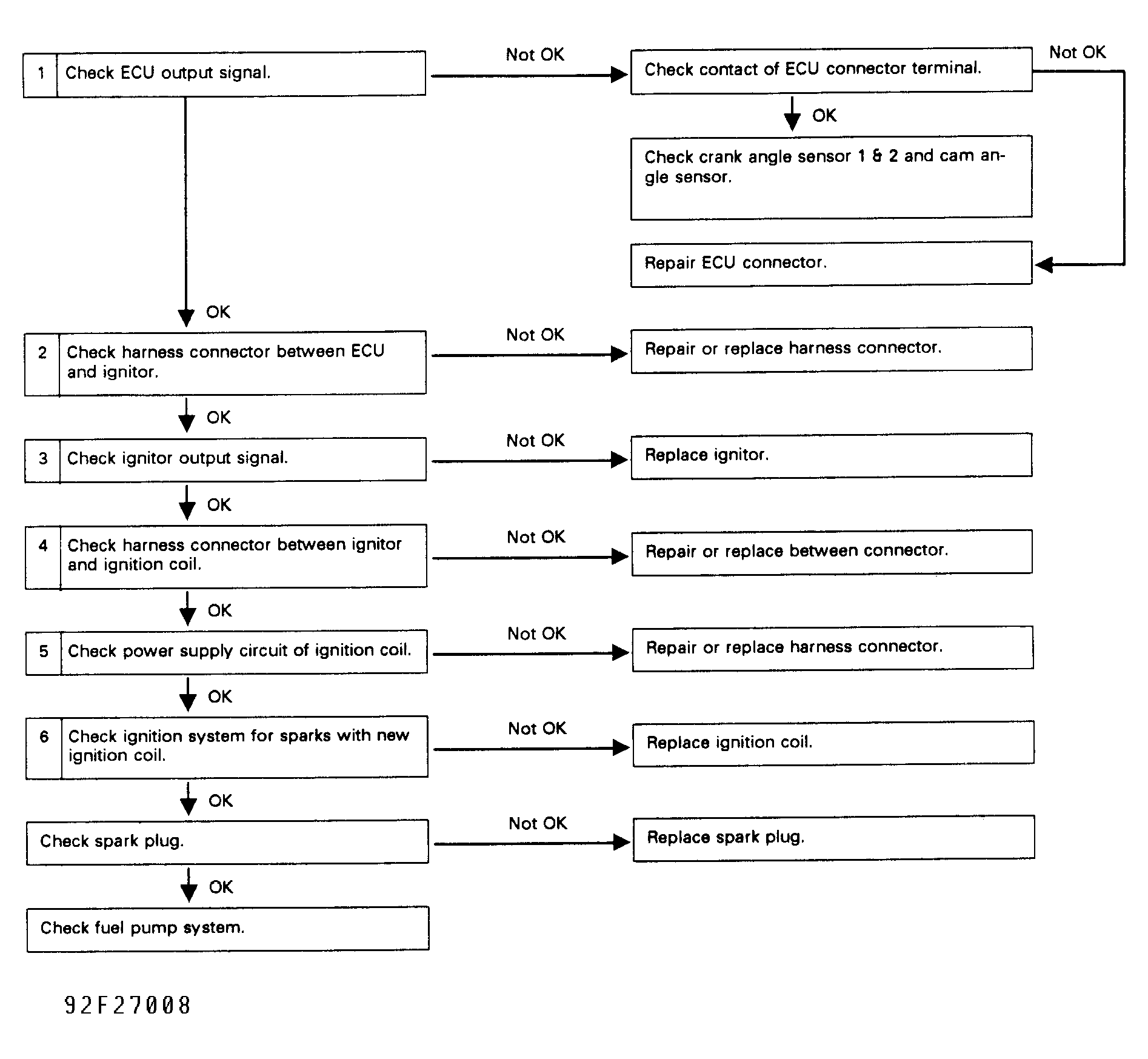

Fig 2: Ignition Control System Test, Flow Chart

Courtesy of SUBARU OF AMERICA, INC.
