Code 13: Cam Angle Sensor
Code 13: Cam Angle Sensor

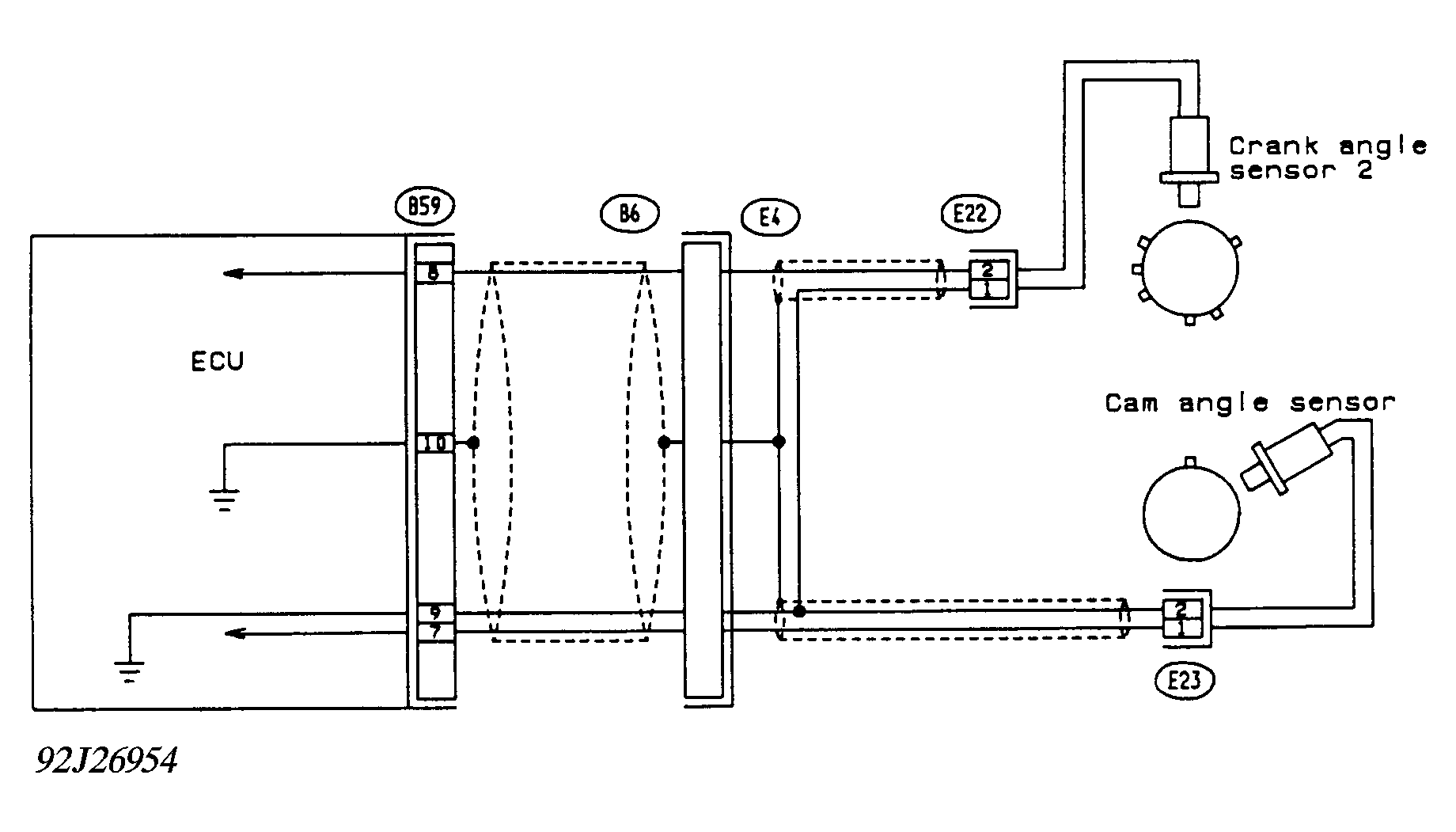

Fig 1: Schematic - Code 13, CAM Angle Sensor

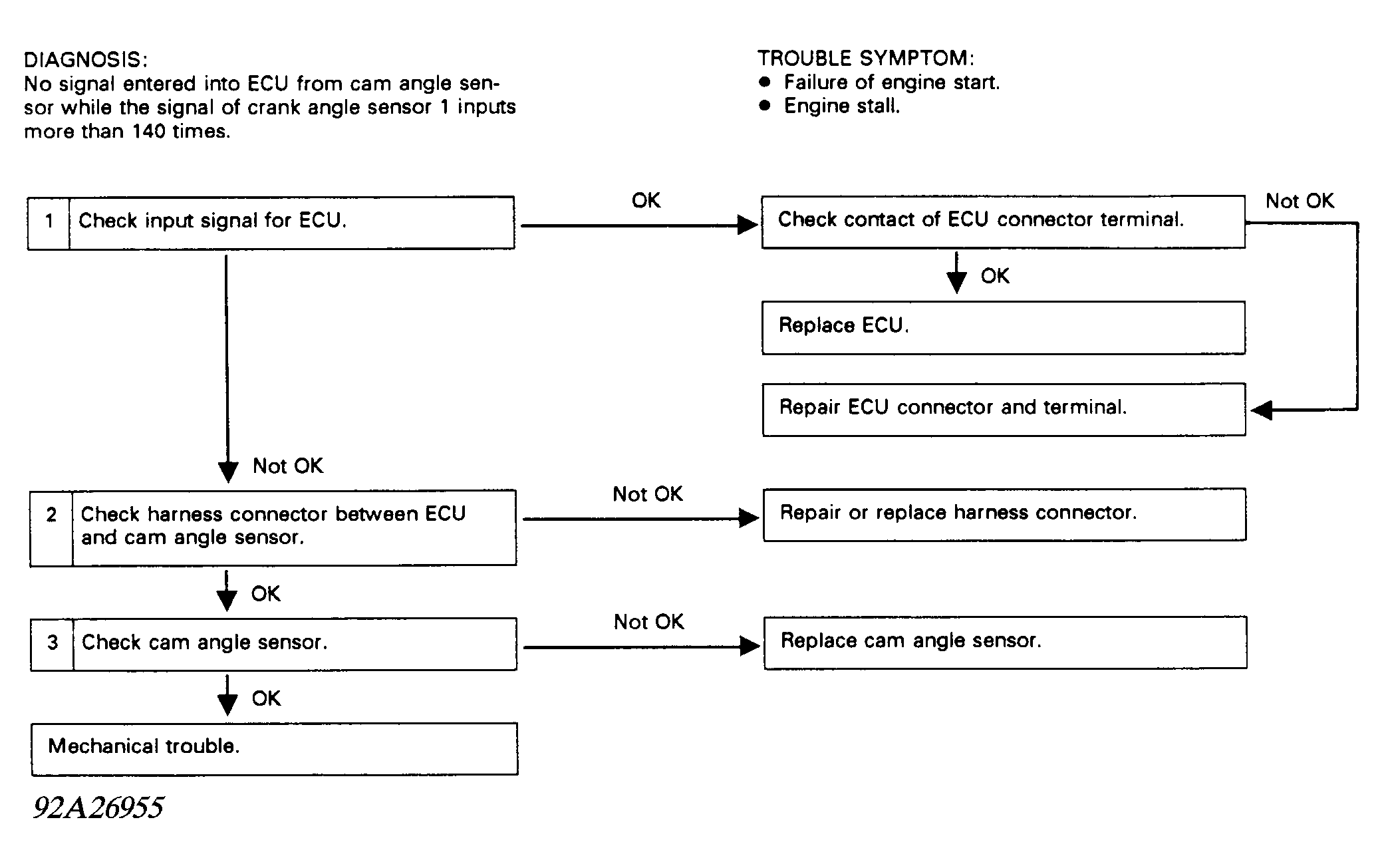

Fig 2: Flow Chart - Code 13, CAM Angle Sensor
