Code 23: Airflow Sensor Circuit

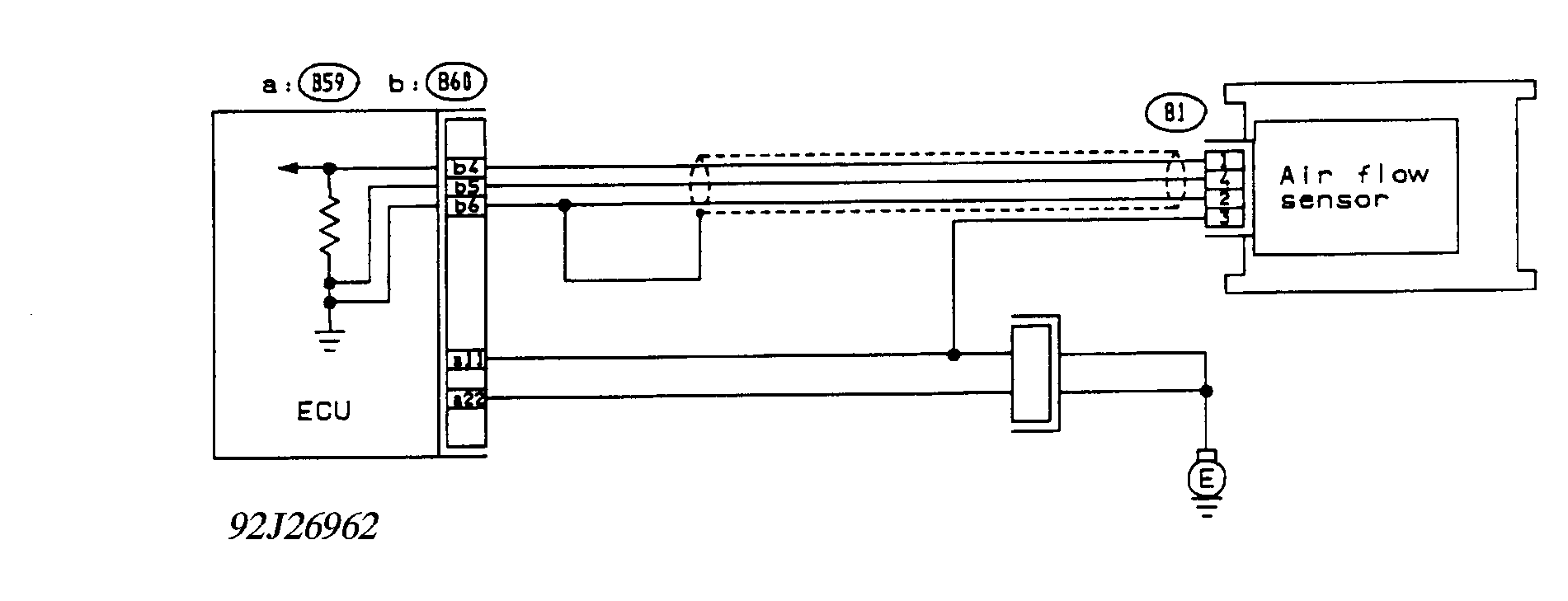

Fig 1: Schematic - Code 23, Airflow Sensor Circuit

G92J26962

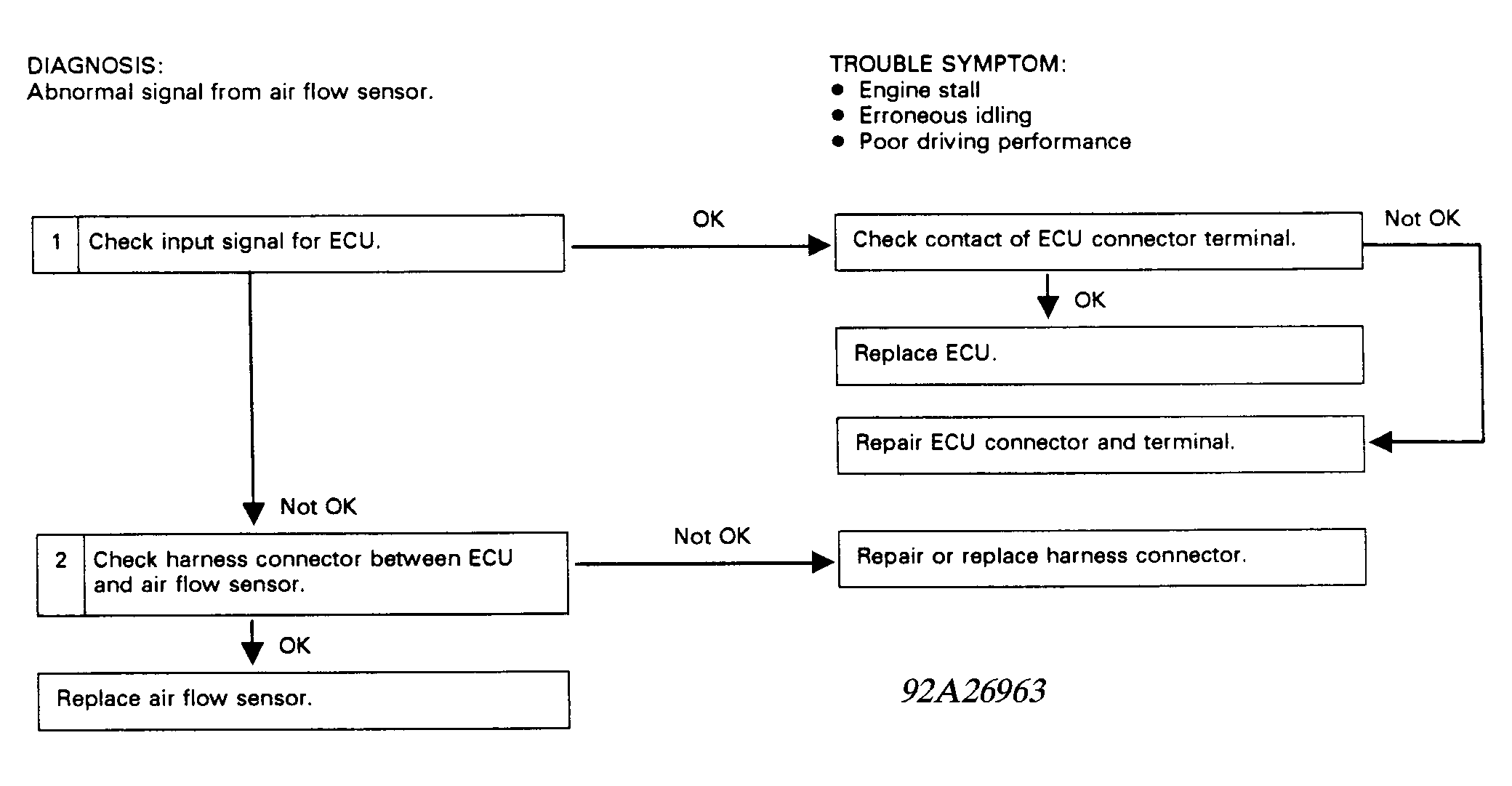

Fig 2: Flow Chart - Code 23, Airflow Sensor Circuit

G92A26963
