Code 35: Purge Control Solenoid

Fig 1: Schematic - Code 35, Purge Control Solenoid

G92F26976

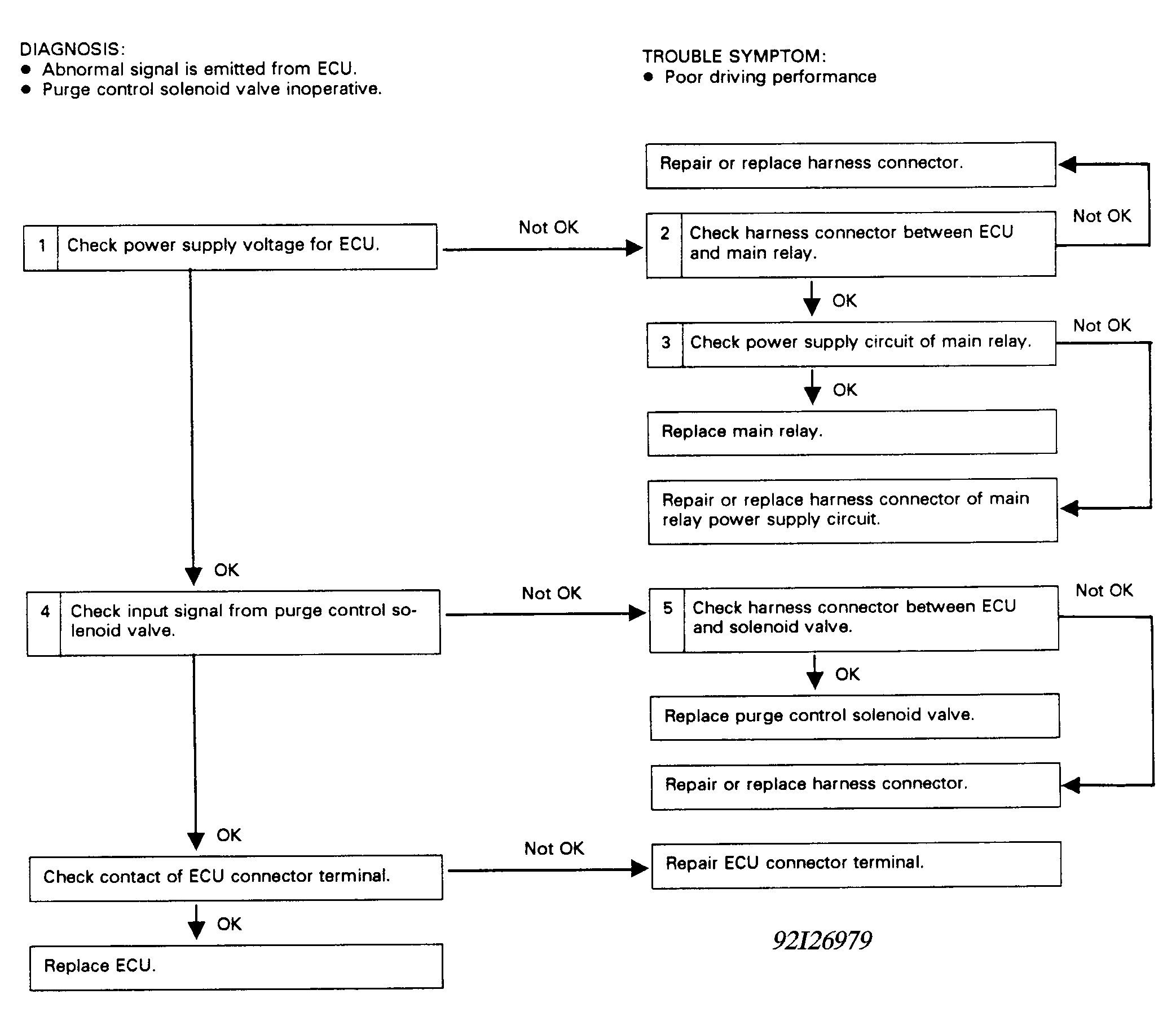

Fig 2: Flow Chart - Code 35, Purge Control Solenoid

G92I26979
