Code 52: Parking Position Signal

Fig 1: Schematic - Code 52, Parking Position Signal

G92G26985

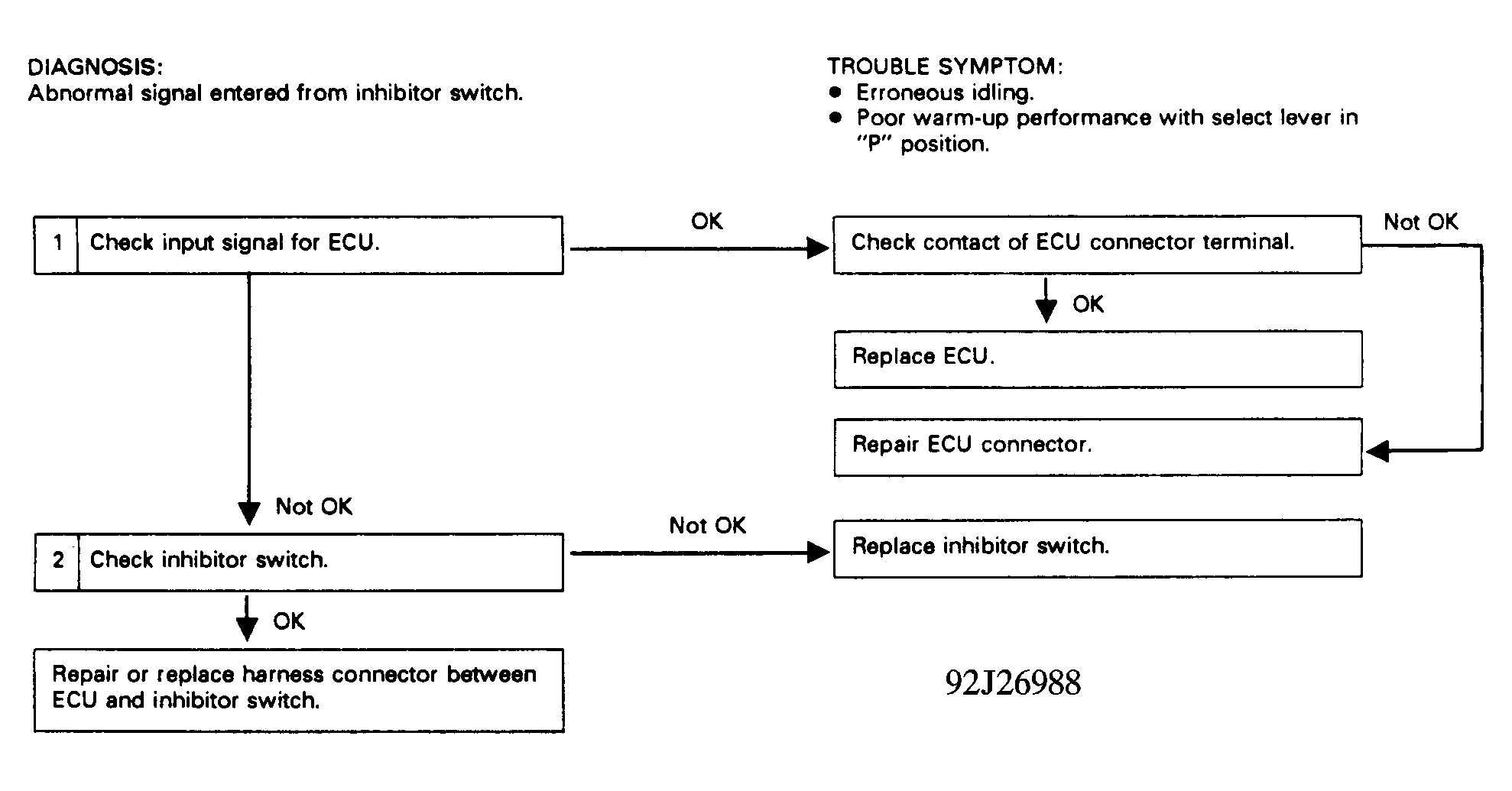

Fig 2: Flow Chart - Code 52, Parking Position Signal

G92J26988
