Continuity Test

WARNING: This page is about a different car, the 1993 Subaru Legacy and 1993 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel lower cover. Remove lower column cover. Unfasten hold-down clip securing harness. Disconnect combination switch harness connectors from body harness.

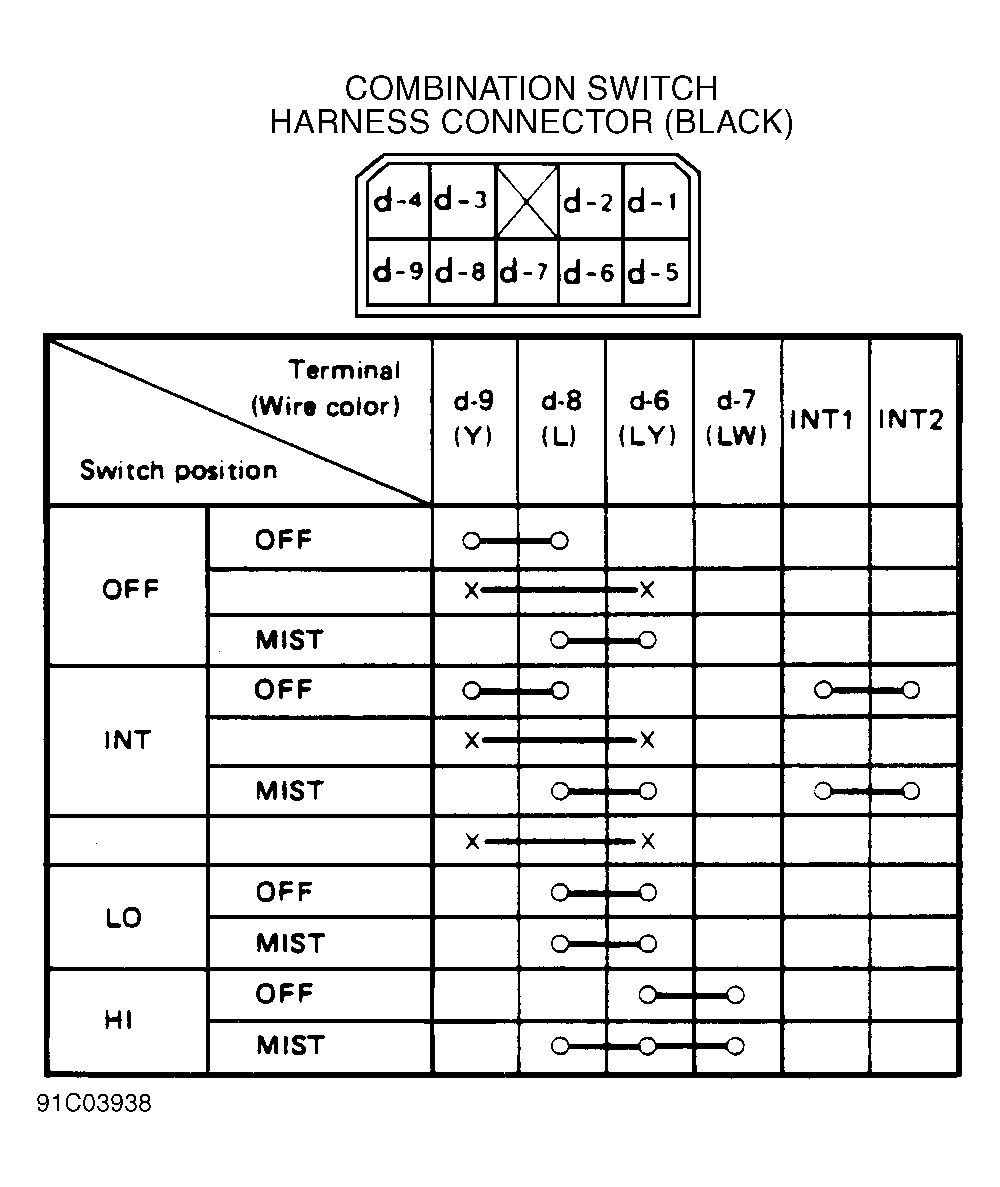

  2. With rear wiper switch in OFF position, there should be no continuity between combination switch connector terminals d-1, d-2 and d-3. SeeFigure . With rear wiper switch in ON position, continuity should be present between terminals d-2 and d-3.
  3. With rear wiper switch in WASH position, continuity should be present between terminals d-1, d-2 and d-3. Replace switch if continuity is not as described.
