Hydraulic Unit: Notes

NOTE: DO NOT place hydraulic control unit upside-down or on its side during removal or installation procedure.

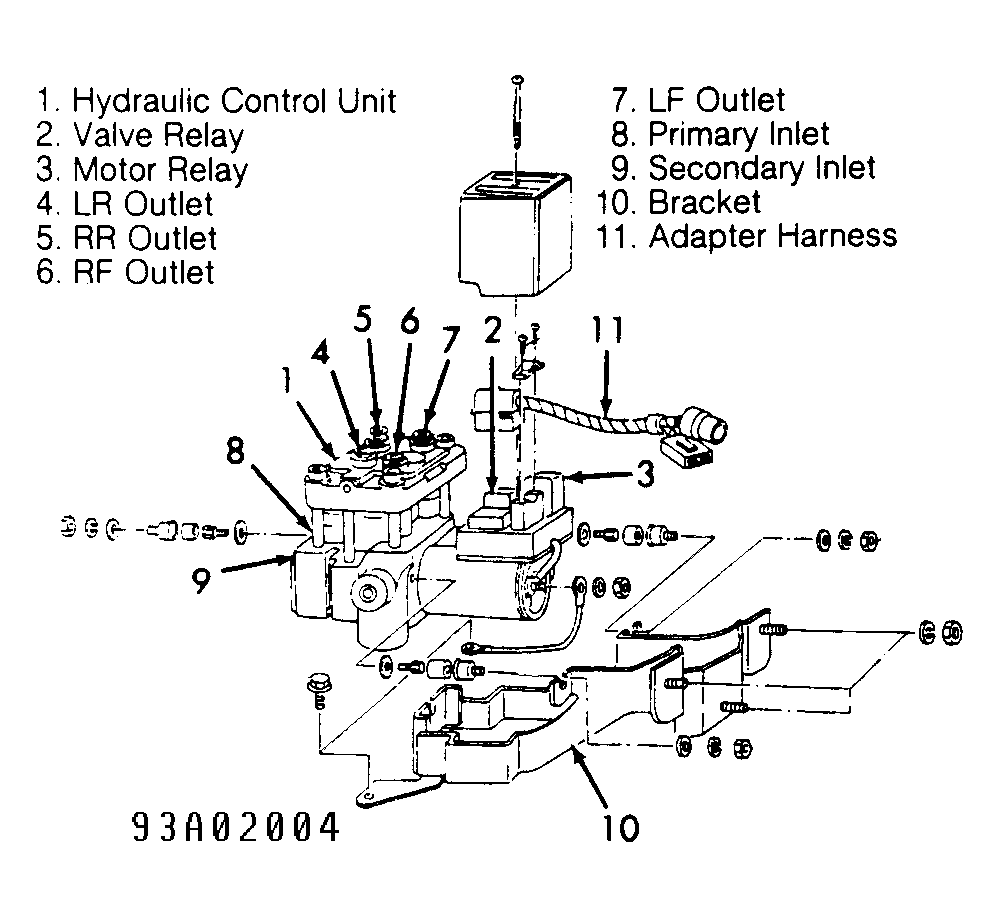

Fig 1: Identifying ABS Hydraulic Unit (Bosch - SVX)

Courtesy of SUBARU OF AMERICA, INC.
