Wiring Diagrams

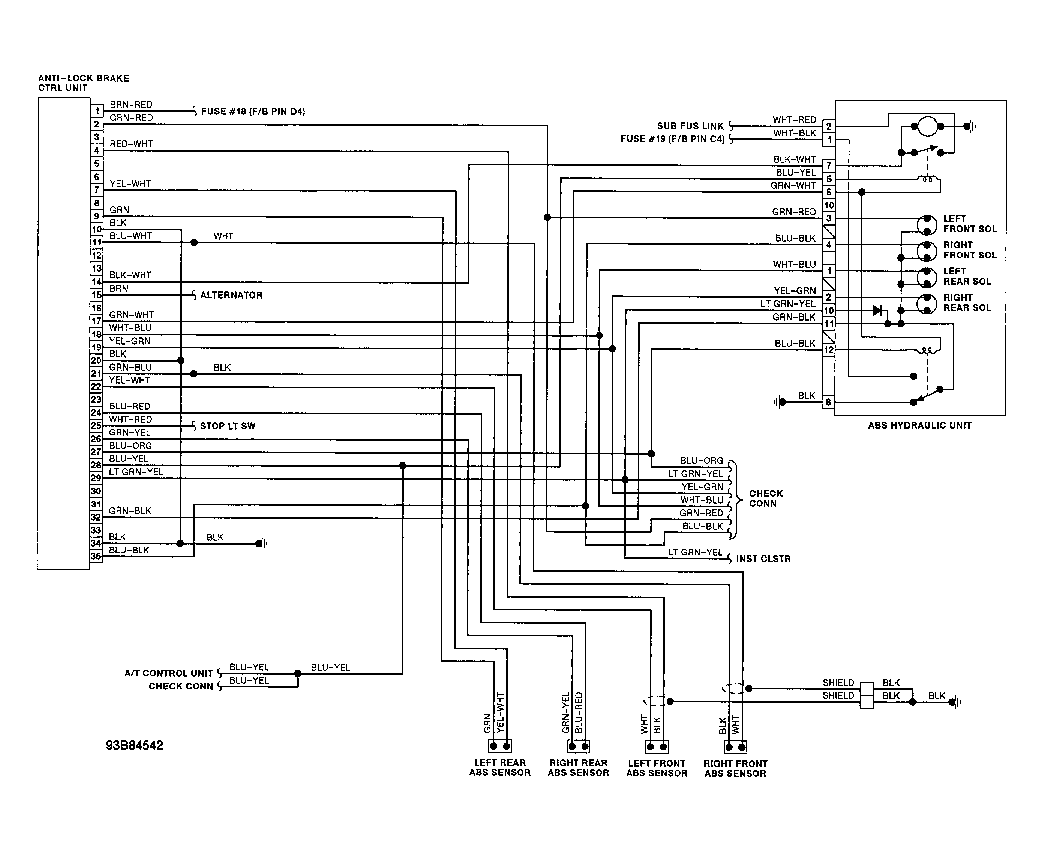

Fig 1: ABS Wiring Diagram (SVX)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
