Engine Controls - Tests W/O Codes: Symptoms

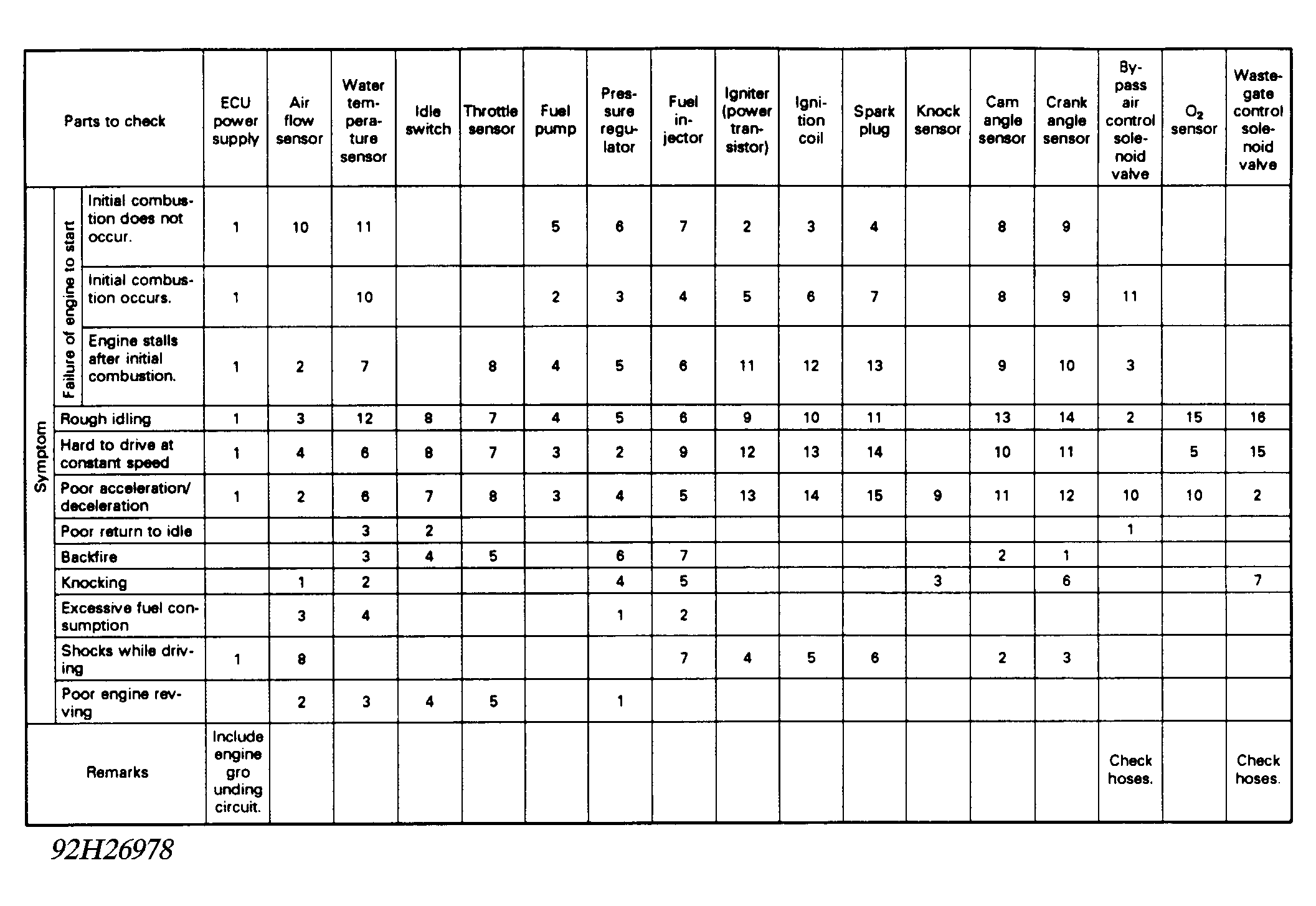

Fig 1: Symptom Diagnosis
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
