Center Support & Low-Reverse Brake Assembly: Reassembly

To reassemble, reverse disassembly procedure. Coat all parts with ATF before reassembly. When installing clutch piston to center support, use care not to damage piston oil seals.

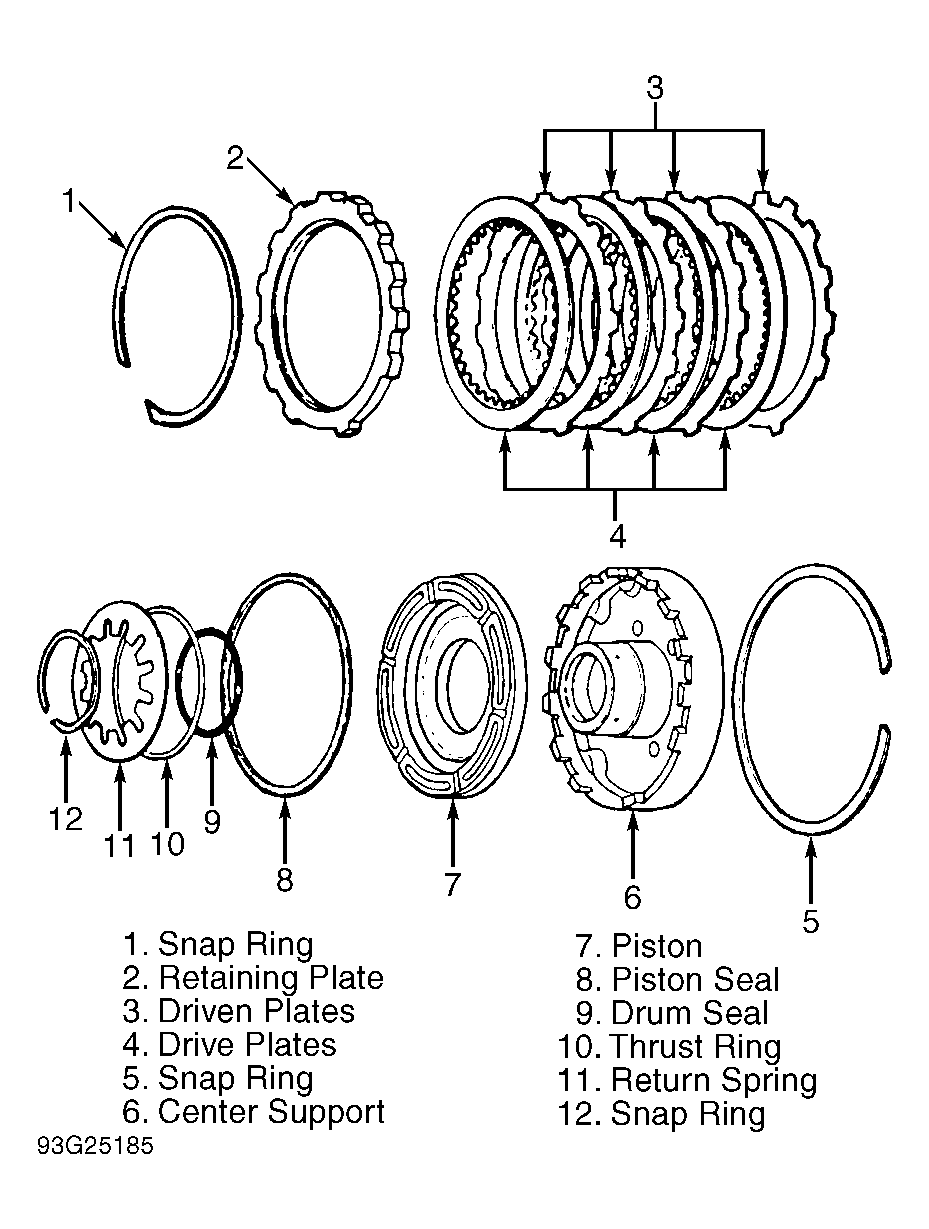

Fig 1: Exploded View Of Center Support & Low-Reverse Brake Assembly

Courtesy of SUBARU OF AMERICA, INC.
